5 Ton Electric Wire Rope Hoist M5 Work Duty

Categories Electric Wire Rope Hoist
Brand Name: Kuangyuan
Model Number: CD
Certification: CE ISO
Place of Origin: CHINA
MOQ: 1SET
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100ets/month
Delivery Time: 30working days
Product name: High Quality Low Price Electric Hoist Crane for Sale
Work duty: M3-M5
Brand: Kuangyuan
Model: CD1/MD1/Mini Electric Hoist
Control Method: Pendant +Remote(Customized)
Color: Customised
Power supply: 220V-460V 50/60Hz
Application: Normal Working Environment
Material: Q235B
Main electrical parts: Schneider
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

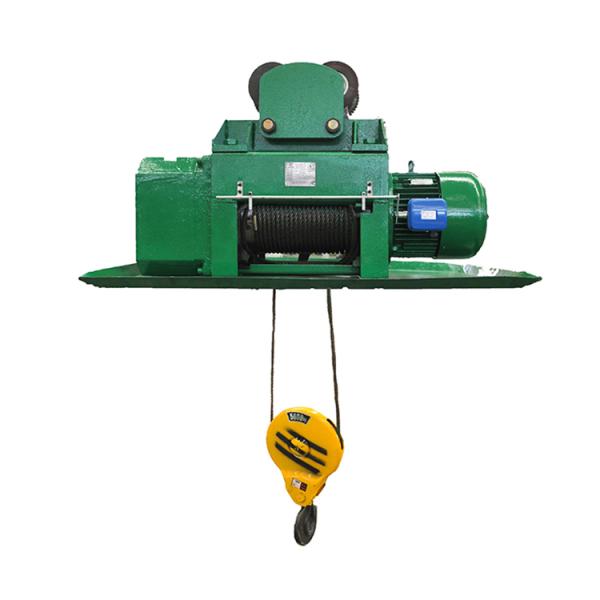

5 Ton Electric Wire Rope Hoist M5 Work Duty

5 ton Electric Wire Rope Hoist M5 Work Duty

It widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.

It can also be used to the hoist double beam, gourd gantry crane or cantilever crane

It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.


TypeCD MD
Lifting weight(t)1,2,3,51016
Lifting height(m)6/9/12/16/24/309/12/18/24/309/12/16/20/24/30
Hoisting speed(m/min)8(0.8/8)7(0.7/7)3.5(0.35/3.5)
Running speed(m/min)202020

Steel wire

rope type

specification6×37+1
H beam orbit model16-45c30T-45c30T-45C
Minimum curvature radius(m)1.5-63.5-93.5-6
Hoisting motorTypeZD1(ZDS1)ZDI(ZDS1)ZD1(ZDS1)
Power(KW)1.5/3/4.5/7.513(1.5/13)18.5(2.2/18.5)
Rotation speed(r/min)138013801380
Current(A)4.3,7.6,11,183030
Running speedTypeZDY11,12,21-4ZDY21-4ZDY21-4
Power(KW)0.2,0.4,0.81.5*20.8*2
Rotation speed(r/min)138013801380
Current(A)0.72,1.25,2.42.42.4
Power sourceThree-phase, 380V, 50 HZ or 400~440V/50-60Hz,
Working systemIntermediate FC=25%

Features:

Compact structure, light weight, safe and reliable;

Wide used and interchangeable of components;

Lifting capacity strong, maintenance easy;

Operation easy, lifting stable


Main Products:


Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.


Advantages:


The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.

Main Technical parameter
