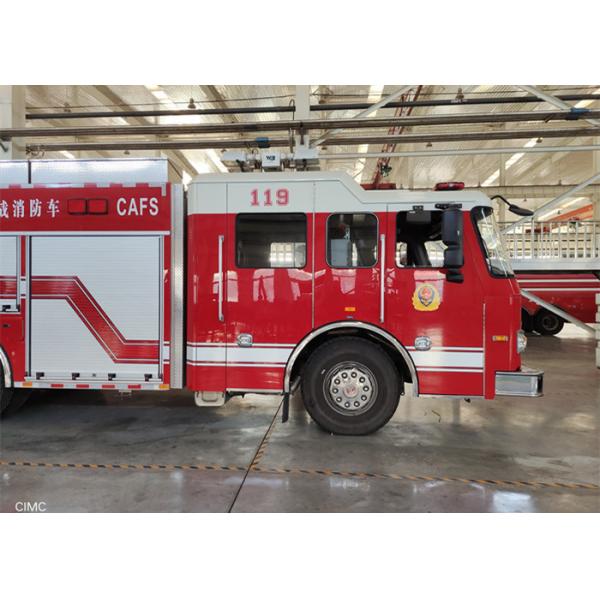

Gasoline 4x2 Drive Cab Rescue Fire Fighting Truck 96km/H

A Modified (1+1+4) Cab Rescue Fire Fighting Trucks 96km/H Maximum Speed

Chassis:

Model: HOWO

Drive form: 4×2

Cab: A modified (1+1+4), rear mounted four with air breathing aircraft

Glass certificate: 3C, E11

Wheelbase(mm): 4425

Maximum permissible load: 18000Kg

Axle rating (Kg): 7490/13000

Max speed: 96Km/h

Tire rating: 12.00R20/13

Size rim/wheel: 8.5-20

Minimum turning diameter: ＜15.6m

Engine In-line Six cylinder, turbocharged intercooled, high pressure common rail, electronic control

Engine maximum power: 213kw

Maximum torque: 1150NM

Emission standard: China V

Engine: Bore/Stroke/Engine Capacity (cc): 126/130/9.726L

Gear-box: ZF 9S-1310 OD Manual gearbox.

Lift lighting system:

Lift lighting electrical system by 13.5KW Honda generator, 4.0kW main lighting, raised about 7.5m (off) the pneumatic lift system, electrical control cabinet and other components.

Generator:

Model: Gasoline generator EH3135 (Honda power)

Rated output power(kVA): 13.5

Maximum output power(kVA): 14.5

Power factor: 0.8

Voltage(V): 380/220

Electric current(A): 16.5A

Frequency(HZ): 50

Fuel: Gasoline

Lifting lighting system:

Manufacturer: Zhejiang interstellar

Model: SG 65-41000G

AGL: ≥7.5m

Lamp power: 4 x 1000W

Lamps horizontal rotation angle: 360 °

Lamps vertical rotation angle: 360 °

Shanghai Jindun special vehicle Equipment Co., Ltd.​ is a high-tech special vehicle enterprise and flagship company of jindun group. It owns first class factory, internationally advanced processing equipment, gathers many top technicians and industrial experts, establishes national grade technology R&D center, and has 112 types of products, including truck crane, aerial working platform truck, road wrecker truck, road maintenance truck, dump truck, CAFS fire trucks, chenical fire truck, water tank foam trucks, emergency rescue vehicles, gas supply vehicles, lighting truck, satellite communication command vehicle, road-rail convertible vehicle, aerial ladder trucks, aerial platform truck, airport fire trucks, long distance water supply truck, water tower fire truck and other general fire trucks.

    Our company regards technological progress as the driving force for the development of enterprises. At the same time, the company improves the capability of independent research and development, constantly improves the technology content of products, and introduces new products. In order to ensure product quality reliability, the company has carried out experimental and simulated assembly for the key parts of the company, 100% to improve the stability of the product. Strong new product research and development force, stable and reliable product quality, good commercial reputation, efficient enterprise management, promote the continuous development among the advanced ranks of fire truck industry.
