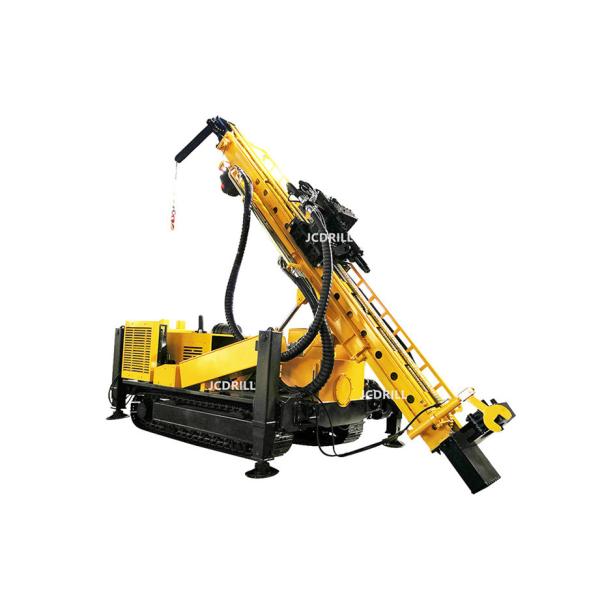

105mm Air Compressed Hydraulic DTH Rc Drilling Rig

JCDRILL Factory Price Air Compressed Hydraulic DTH China RC Drilling Rig JRC500

The reverse circulation drilling rig(rc drilling rig)upgrades and optimizes the operating table, the running parts, the hydraulic system, the propulsion beam, and the turret, with the aim of maximizing the function of the rig. The walking parts use a plunger motor, which greatly extends the life of the pneumatic down-the-hole drilling rig. In particular, the improvement of the console has been changed from the original two-person operation to one-person operation, which has improved the work efficiency and reduced the cost, fully considering the market demand.

Specifiction

Characteristics

1: Diesel engine mounted hydraulic system,all the system include the walking,rotation,feed,lifting,Leg,lifting, compensation system,rod change is hydraulic.

2: Reverse circulation system working together with DTH technology,air compressor provice pressed air for impact and dust collect.

3. During working,use the reverse circulation hammer,double tube,pressed air enter between two tube and dust out from the inner tube.

4. Also it’s available to positive circulation use normal drilling tool.

5. The working system composed of feed system,guide(mast),rotary head, compensation system, centralizer,rod exchange cystem, winding and so on.

6. Axes pressure,feed speed,rotary speed is adjustable.

7. The walking system is a self-walking system,convient for moving,wich could install four hydraulic leg,when load on truck,it doesn’t need hiking up,it can load on truck directly.

8. Four hydraulic leg use for keep the balance of the drilling during working.

9. The sub winding could hoisting Max.1ton drilling tool,it also could help to rod change.

10.The guide(mast) could working in 45°-90°,guide have a extention system,which ensure the guide could moving toward the drilling surface,to keed the balance of the guide.

11. Gradienter,angle lable and centralizer to ensure the precision accuracy of hole.

12. The air system have a special lubrication system to lubricating the hammer to extend the service life.

Beijing Jincheng Mining Technology Co., Ltd. (JCDRILL) is located in Beijing, China. For more than 20 years, we have specialized in the research, development, and production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories & drilling services. With our advanced technology, high-quality equipment, rigorous testing processes, and comprehensive service network, we consistently provide professional drilling solutions to our customers. These strengths have helped establish the “JCDRILL” brand as a trusted name in the market. Currently, JCDRILL products account for 50% of the domestic market and are exported to more than 40 countries. In November 2002, we were awarded ISO9001:2000 certification.

Our manufacturing facilities, covering an area of 9,625 square meters, specialize in the production of rock blasting drilling rigs, water well drilling rigs, diamond core drilling rigs, anchor drilling rigs, and related accessories. We employ more than 500 staff, including 26 experienced engineers from Ingersoll Rand and the former Xuanhua Mining Machinery Company. With our strong technological expertise and robust market service capabilities, we have developed both an efficient marketing system and an excellent service support system, earning the trust of customers worldwide.

Additionally, we serve as an authorized agent for mobile double-screw air compressors from Atlas Copco, Sullair, and Liutech. This allows us to offer drilling rig users high-quality, professional air compressor solutions along with reliable after-sales services.

At JCDRILL, we are committed to our strategic vision: “Survival by Quality, Development by Credit.” We strive to provide users with high-quality drilling solutions. Our after-sales service system follows a strict control framework based on ISO-9000 standards. This system ensures that technical data, problem-solving solutions, and preventive measures are provided for every maintenance project. All spare parts are sourced from new OEM products and come with installation instructions, packing lists, manufacturer documentation, qualification certificates, and warranty certificates.

We uphold the principle of “One Equipment, One Case, Endless Service”—our after-sales support begins from the moment an order is confirmed and lasts throughout the equipment’s entire operational life.
