| Categories | Electronic Locking System |
|---|---|
| Brand Name: | KERONG |
| Model Number: | KR-SBU |
| Certification: | CE/FCC/ROSH |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Agreeable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
| Supply Ability: | 50,000 per month |
| Delivery Time: | 5-15 days working time |
| Packaging Details: | The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN |
| Product name: | Intelligent cabinet control board |
| Communication: | TCP/IP LANs and WANs control |
| Weight: | 0.4-0.8kg |
| Color: | Green |
| Power supply: | DC12 V~24 V |
| Capacity: | 20000 cards and 100000 offline memory |
| Power consumption: | Less than 100mA |
| Type: | Intelligent cabinet access control system |
Product parameters
| Model | KR- SBU |
| Brand | KERONG |

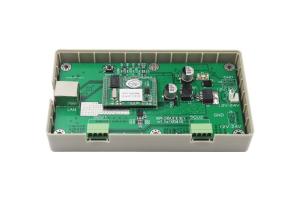

| Definition | the electronic lock control board |
| Function | Connect to the network to translate commands to the lock control panel |
| Dimension | L200*W140*H15mm |
| Material | PCB (Printed Circuit Board) |
| The material of protecting the shell | ABS |
| Microprocessor module | module for converting TCP/IP into RS485 |
| Connector model | RJ45, 8P8C |
| Working voltage | 12V~24V |
| Stand-by power consumption | 80mA(12V),40mA(24V) |
| Dynamic power consumption | 100mA(12V),50mA(24V) |
| Reaction time | Less than 1s |
| Working temperature | -25℃ ~ +65℃ |
| Working humidity | 5% ~ 95%RH |
| Certification | CE; ISO9001; RoHS |
| OEM | Accepted |
Product Main Features
1, Basic unit. Transfer TCP/IP commands (from PC) to 485 formats (to SCU).
2, Open developed, you can design software completely as you want.
3, Can co-work with the computer, Raspberry Pi, pad.
4, Works well on IOS, Windows, and Linux.
5, Suit for multiple applications: Express cabinet, WeChat sweeping cabinet, etc.
6, High-quality modules, working stably.
7, Working temperature: -25℃~65℃.
8, Anti-dust with protect box.
Product Details
Lock: With lock tongue detection. Unlock when received commands from SCU. Send lock condition (locked or not) to SCU.
SCU: Control unit. Receiving commands from SBU/ PC and sending commands to locks. Get feedback from locks and send it to SBU/PC.
SBU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 formats (to SCU).
Router: Providing internet.
PC: With software to manage all parts.
Our Services
1.Customized Services
2.Free technical consultation
3.OEM/ODM production is acceptable
4.After-sales quality assurance, unconditional replacement of quality problems
5.Samples are available free of charge
