| Categories | Air Pressure Sensor |
|---|---|
| Brand Name: | WNK |
| Model Number: | WNK83mA |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | Negotiation |
| Payment Terms: | D/A, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 2000 pcs per week |
| Delivery Time: | 8-10 working days |
| Packaging Details: | Each piece into individual carton with foam protection,Or as per client's request |
| Pressure range: | 0-2MPa,0-20bar,0-2000kPa |
| Output: | 0.5-4.5V DC |
| Power supply: | 4.75-5.25V DC |
| Material: | Brass |
| Process connector: | 1/4 NPT |
| Electrical connector: | Cable Outlet |
| Accuracy: | 1% |
| Company Info. |
| Hefei WNK Smart Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

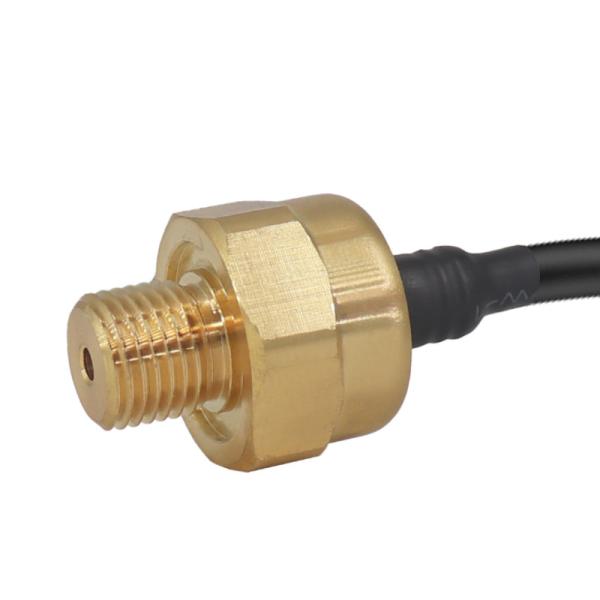

Customized Cable Outlet 1/4G 0.5 - 4.5V DC Output Air Pressure Sensor
Mini brass pressure sensor suitable for air oil water
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply | 4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Working temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable Outlet |
| Mechanical connection | G1/4 |
| Housing material | Brass |
Product Show
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
|
