| Brand Name: | TANKII |
| Model Number: | Monel 400 |
| Certification: | ISO9001:2009 |
| Place of Origin: | Shanghai |
| MOQ: | 30kg |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200+ton+month |
| Delivery Time: | 7-20 days |
| Packaging Details: | 15kg/Spool, Carton, Wooden Case |
| size: | 1.6mm,2.0mm |
| surface: | bright thermal spray wire |

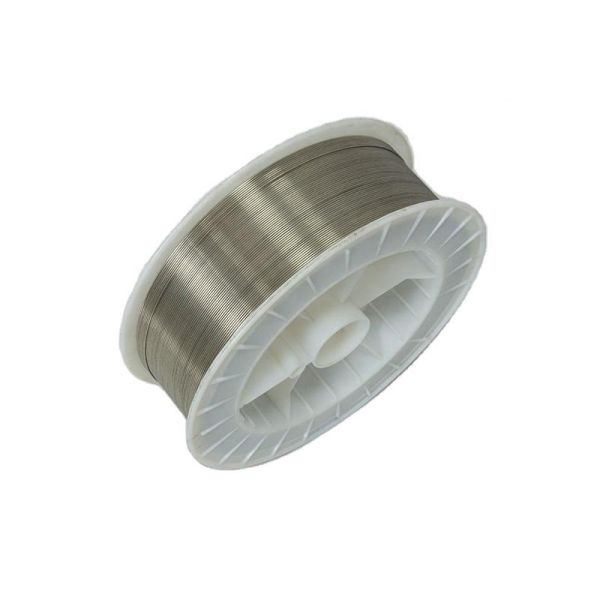

| product name: | Monel 400 thermal spray wire |
| wire type: | thermal spray wire |
| HS code: | 75052200 |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Applications
Corrosion protection for chemical and desalination plants.
Resist saltwater corrosion for compoents such as steam valves,
pumps, seal rings and plungers.
Protects immersed machine elements from saltwater corrosion,
particularly for applications where a surface harder than typical
galvanic coatings is required.
Product Details
Chemical composition:
| Grade | Chemical composition(%) | ||||||
| Ni | Fe | Cu | C | Mn | Si | Ti | |
| Monel 400 | Min 62 | Max 2.5 | 28-32 | Max 0.15 | 2-4 | Max 1.2 | 1.5~3.0 |
Physical Properties
| Grade | Density | Melting Point |
| Monel 400 | 8.83g/cm3 | 1310°C |
Typical Characteristics:
| Typical Hardness | Bond Strength | Deposit Rate | Deposit Efficiency | Machilityineab |
| HRB 84 | 4310 psi | 10 lbs /hr/100A | 70% | Good |
Sizes & Packaging:
| Diameter | Packaging | Wire Weight |
| 1/16" (1.6mm) | MIG (D 300) | 15kg((33 lb)/spool |
Note that special sizes, or packing requirements are available on all requests.
Specifications:
EN ISO 18274 Ni 4060 ( NiCu30Mn3Ti), EN ISO 14919
|
