Komatsu Seal Kit For 706-7G-03110 7067G03110 Hydraulic Swing Motor PC200-8

Komatsu Seal Kit For 706-7G-03110 7067G03110 Hydraulic Swing Motor PC200-8

Description: Seal kit for swing motor 7067G01040 Excavator KOMATSU PC200-7

Product name	Komatsu Seal Kit For 706-7G-03110 7067G03110 Hydraulic Swing Motor PC200-8
Brand	SUNCAR
OEM number	706-7G-03110 7067G03110
Part name	706-7G-03110 Swing motor seal kit
Color	As per standard color/customize color
NBR	-30℃~+110℃
FKM	-10℃~+150℃
Compatible model	Excavators PC200-8 Komatsu
Feature	Resistant to heat, oil, fatigue, aging and friction
Section code	Hydraulic swing motor
Package	Nuetral packaging or OEM packaging
Hardness	75-90 degree
AppliC-A-Tion	Resell,construction machinery works
MOQ	100 sets
Type	Hydraulic motors
Payment terms	L/C, D/A, D/P, T/T, Western Union,
Market	The people in need
Shipping mode	By air, by sea, by express
Express	Post FedEx , UPS,DHL,TNT etc
Loading port	Huangpu port,China
Original place	Guangzhou city,Guangdong province,China
Forwarder	Your local forwarder or we find for you
Quality	Stable quality,OEM standard,Genuine/Aftermarket

Relative Parts:

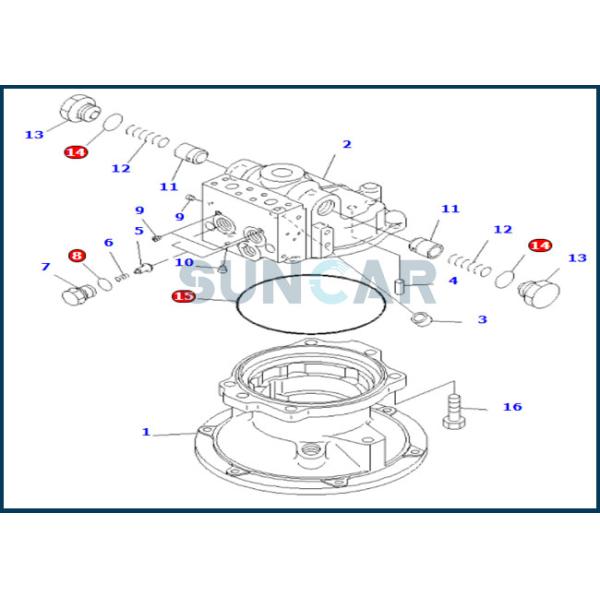

Pos.	Part No	Qty	Parts name
	706-7G-01140	[1]	MOTOR AS'Y
		[-1]	THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS
	706-7G-03110	[1]	MOTOR SUB AS'Y
1	706-7G-41240	[1]	CNH
2	706-7G-71180	[1]	HOUSING
3	706-7G-40110	[1]	BUSHING
4	708-8K-15190	[1]	PIN,DOWEL
5	709-25-11650	[2]	VALVE,CHECK
6	709-25-11361	[2]	SPRING
7	709-25-11640	[2]	PLUG
8	07000-12020	[2]	O-RING
9	708-21-12541	[3]	PLUG
10	708-8F-31620	[1]	PLUG
11	706-7G-71710	[2]	VALVE
12	706-7G-71560	[2]	SPRING
13	706-7G-71630	[2]	PLUG
14	07002-13334	[2]	O-RING
15	706-75-42370	[1]	O-RING
16	01010-61450	[6]	BOLT

Pos.	Part No	Qty	Parts name
	706-7G-01140	[1]	MOTOR AS'Y
		[-1]	THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.
	706-7G-03110	[1]	MOTOR SUB AS'Y
1	706-7G-41630	[1]	SHAFT,DRIVE
2	706-75-42880	[1]	BEARING
3	706-7G-41660	[1]	SPACER
4	706-76-40890	[1]	BEARING
5	706-7G-41510	[1]	SPACER KIT
6	04064-04518	[1]	RING,SNAP
7	706-75-43410	[1]	SEAL,OIL
8	706-7G-41910	[1]	SPACER
9	04065-06220	[1]	RING,SNAP
10	706-7G-41310	[1]	BLOCK,CYLINDER
11	706-7G-41720	[1]	PLATE,VALVE
12	706-75-43750	[1]	PIN,DOWEL
13	706-7G-41320	[1]	SHAFT,CENTER
14	706-7G-41130	[1]	RING,CENTER
15	706-7G-41140	[1]	SPRING K
	706-7G-05010	[1]	RETAINER KIT
18	706-7G-41410	[7]	PISTON SUB AS'Y
19	706-7G-91441	[5]	PLATE
20	706-7G-91450	[4]	DISC
21	706-7G-91120	[1]	PISTON,BRAKE
22	706-75-92310	[1]	O-RING
23	708-8F-31610	[1]	O-RING
24	706-7G-91360	[6]	SPRING
