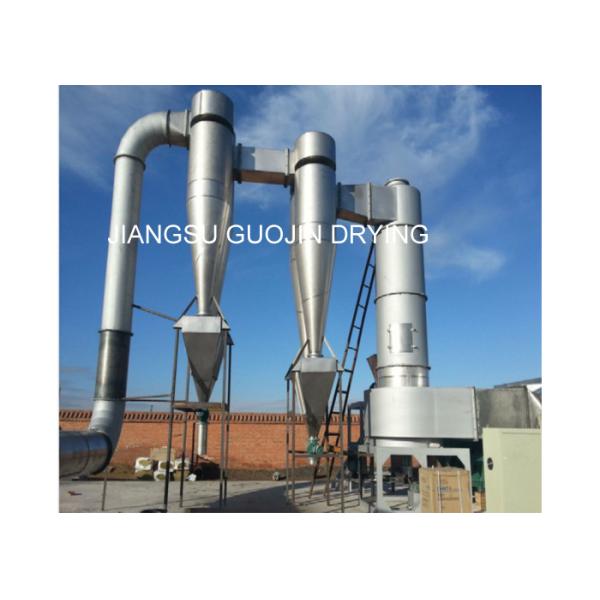

Industrial Stainless Steel Titanium Rotary Spin Flash Dryer

Industrial Stainless Steel Titanium Rotary Spin Flash Dryer

SFD Titanium Rotary Dryer Features

1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon

2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area

3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.

4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.

5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.

6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.

SFD Titanium Rotary Dryer Application

1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.

2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.

3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.

4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.

5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.

6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.

SFD Titanium Rotary Dryer Technical Parameters

Type	Barrel diameter(mm)	Main machine dimensions(mm)	Main machine power(kw)	Treatment wind capacity(m3/h)	Water evaporatoion(kgg/h)
SFD-2	200	250x2800	5-9	300-800	10-20
SFD-3	300	4400x3300	8-15	600-1500	20-50
SFD-4	400	500x3500	10-17.5	1250-2500	25-70
SFD-5	500	600x4000	12-24	1500-4000	30-100
SFD-6	600	700x4200	20-29-2500	5000	40-200
SFD-8	800	900xx4600	24-35	3000-8000	60-600
SFD-10	1000	1100x5000	40-62	5000-12500	100-1000
SFD-12	1200	1300x5200	50-89	10000-20000	150-1300
SFD-14	1400	1500x5400	60-105	14000-27000	200-1600
SFD-16	1600	1700x6000	70-135	18700-36000	250-2000

SFD Titanium Rotary Dryer Flowchart

SFD Titanium Rotary Dryer Show
