Moisture Resistant Fiber Optik Cable , Multimode Fiber Cable Aluminum Tape Layer

Categories Fiber Optic Cable
Brand Name: KCO, Kocent Optec Limited
Model Number: GYTA
Certification: ISO9001, RoHS
Place of Origin: Guangdong, China
MOQ: Negotiation
Price: Negotiation
Payment Terms: Western Union, T/T, L/C
Supply Ability: 10,000km/ month
Delivery Time: 3~5 days after get payment
Packaging Details: wooden roll, wooden pallet
Material: LSHZ, PVC
Name: GYTA cable
Length: 2km~3km each roll
Application: outdoor or customized
Fiber: single mode, MM
Model: GYTA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Moisture Resistant Fiber Optik Cable , Multimode Fiber Cable Aluminum Tape Layer


GYTA Optical Fiber Cable Single Mode Outdoor With Aluminum Tape Layer


Outdoor fiber optic cable Applications:

- Suitable for aerial .pipeline laying method.

- Long distance and local area network communication

- Adopted to Outdoor distribution.


Outdoor fiber optic cable Characteristics:

- Good moisture-resistance.

- Steel-wire parallel member.filler protect tube fiber steel tape amored.

- Good ultra violet radiation resistant property.


KCO-KOCENT OPTEC LIMITED can supply all diameter of single mode, multimode of indoor fiber optic cable such as 0.6mm, 0.9mm, 1.6mm, 1.8mm, 2.4mm, 2.8mm, 3.0mm etc with PVC or LSHZ cover for fiber optic patch cable and fiber optic pigtail production. We can make simplex, duplex or multi-fibers if you want. We also can supply OEM, ODM servicer for fiber optical cable, can help you print your own Brand LOGO on the cable and package. Please contact with us by phone or by e-mail to get more informations about them.

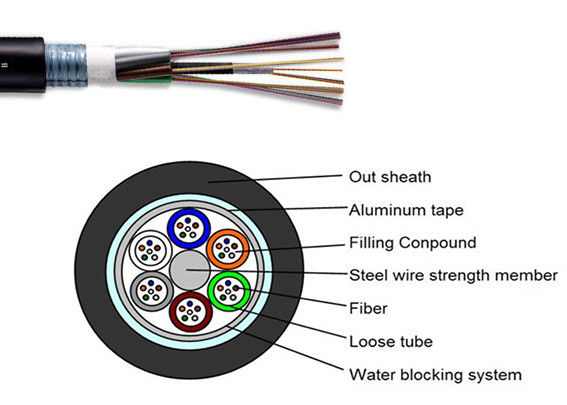

Fiber optic cable constructions:




Outdoor fiber optic cable Technical Parameters:


Cable CountOut sheath
Diameter
WeightMinimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
(MM)(KG)short termlong termshort termlong termshort termlong term(℃)
2410.590.001500600100030020D10D-40+60
3610.590.001500600100030020D10D-40+60
4210.590.001500600100030020D10D-40+60
4810.590.001500600100030020D10D-40+60
6010.590.001500600100030020D10D-40+60
7213.5160.001500600100030020D10D-40+60
9613.5160.01500600100030020D10D-40+60
14415.5180.01500600100030020D10D-40+60

Optical Characteristics:
Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
A1b:62.5/125
SinglemodeG.652(A,B,C)B1.1:Conventional fiber
G.652DB2: Zero dispersion shifted
G.655B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3)B4: Main technical data for positive
dispersion shifted single-mode fiber

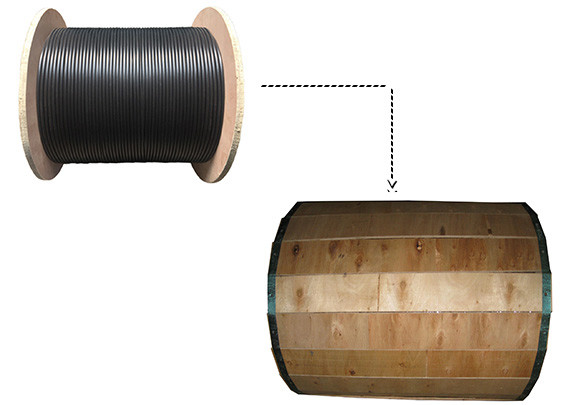

Fiber optic cable packing ways:



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
