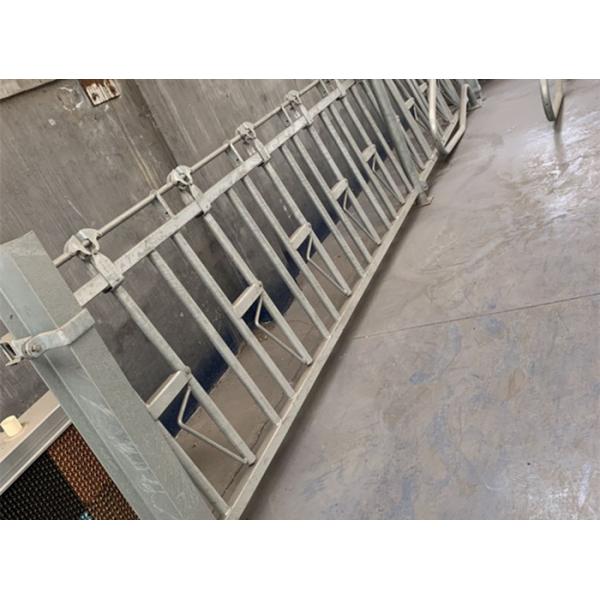

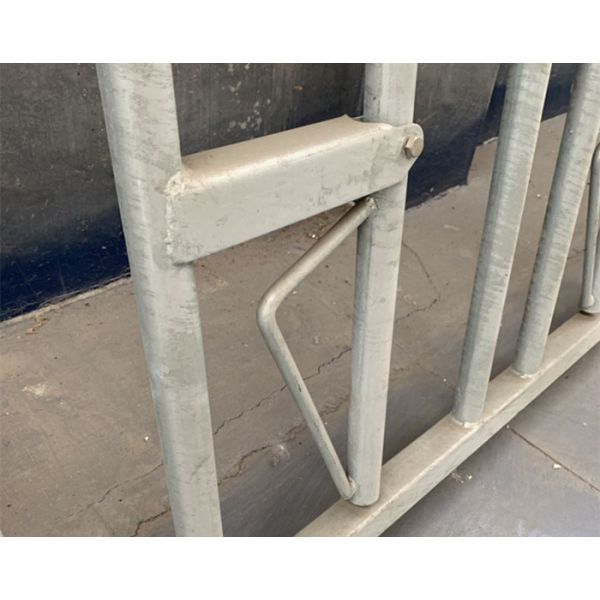

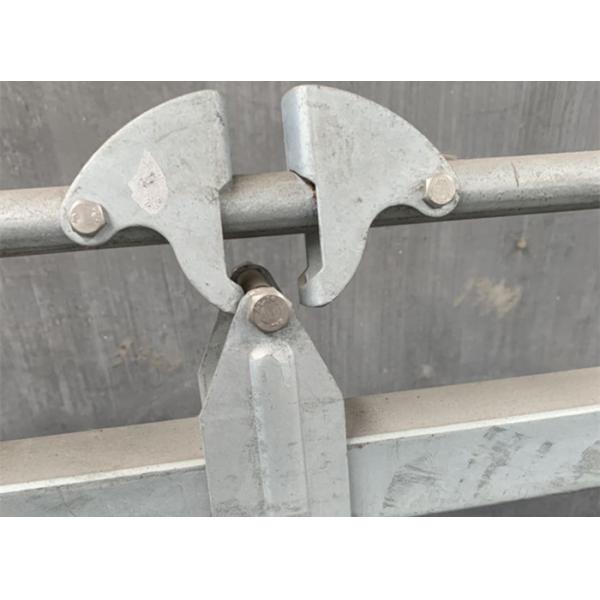

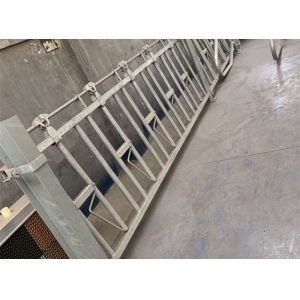

hot dip galvanized steel Livestock cattle panel equipment dairy cow headlock for sale

Our headlock is easy to install and operate .
it is strong enough.
We also can produce according to your design .
4 locks in 8FT panel ,5 locks in 10FT panel ,6 locks in 12FT panel etc.

Specifications:
Fabricated from 1.9 OD 12 ga. high tensile tubing.
Vertical tubes are notched to maintain strength.
Heavy bushing in the swing tube to reduce wear.
Panel Height - 36"
Panel length - custom fit 30" to 12' (22"-24" needed per head lock)

( cattle headlock for 4cattles)
Weight:74.3kg
40GP:248PCS
Material: square pipe:50*50*2.5mm and round pipe:42*2.75mm
Surface treatment: Hot dip galvanized


( cattle headlock for 5 cattles)
Size:3020*1050mm
Weight:92kg
40GP:184PCS
Material: square pipe:50*50*2.5mm and round pipe:42*2.75mm
Surface treatment: Hot dip galvanized

( cattle headlock for 6 cattles)
Weight:110kg
40GP:184PCS
Material: square pipe:50*50*2.5mm and round pipe:42*2.75mm
Surface treatment: Hot dip galvanized

Our Xinbaofeng Industrial Trade Co., Ltd is a big manufacturer for metal products for many years in China. We located at Qingdao-----a beautiful and Industry developed city.
We established in year 2007, our main products are pig stall (farrowing crates, gestation stall, nursery etc.), dairy equipment (free stall, headlock etc.), sheep yard and horse crates, dog crates and so on. Our equipment have export to America, Canada, Holland, Denmark and many countries, and most of them still keep business relations with us.
