| Categories | DC Blower Fan |
|---|---|
| Brand Name: | MX |
| Model Number: | MX30290CNFM1 |
| Certification: | CE, ROHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 100pcs |
| Price: | us$12.99 / pcs to us$15.99 / pcs, and negotiation |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 600, 000pcs per month |
| Delivery Time: | 5 - 12 working days after received your payment |
| Packaging Details: | carton, other can be customized single package. 30 x 190MM, single package, 50pcs / box |
| Product name: | cross flow fan, 12V 24V blower |
| Rate Voltage: | 12V / 24V dc |
| Current: | 0.18A ( 12V ) |
| Speed: | 2600RMP |
| Bearing type: | ball bearing |
| Motor: | Impedance Protected And Reverse Polarity Protected |
| Max air flow: | 49CFM |
| Weight: | 290g |
300 x 45 x 45MM air conditional dc 12v tangential blower fan 24v
WARM NOTES: If you have any question about the fans, pls feel free to talk with me, my friend.
ATTN : krystal zhou
Tel : 008675526070926
Skype / Phone: +8613128824029
Description :
Fan Name | Cross flow fan, Tangential Fan, blower fan. |
Size | 30 x 290mm |
Impeller diameter Air-outlet length | 30mm 290mm |
Voltage | 12VDC, 24V DC |
Expected life | Ball bearing 50000hours Sleeve bearing 30000hours |
Working temperature | -30 ℃ ~ +75℃ (can up to -30℃ ~ +130℃) |
Port settings | Terminal: without connector in common Lead wire: wire length 300mm, two wire in common |
Features: Scross flow fan from shenzhen topfan manufacturers, low noise
level, reliable movement, long life, little vibration, large air
volume, work stable, easy to mount, low prices, high quality.

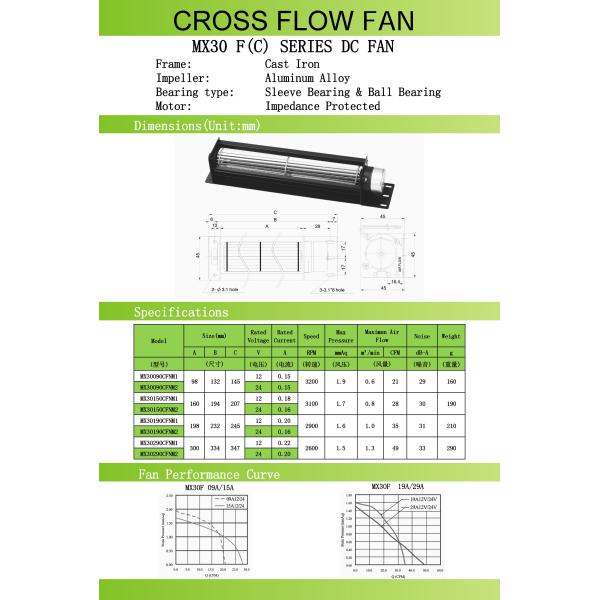

Specification :

Application :
It is widely used in refrigerator, freezer, heaters, chassis, air conditioners,
elevator / lift, industry equipment, electronic equipment, medical equipment, ground
control, power supplies, welding machines, packaging and printing
equipment, satellite communications, CNC, machinery and office
automation products for ventilating and cooling purposes.

|
