Thick Polished Stainless Steel Tubing Small Diameter 0.2 - 2.5mm WT Size

Categories	Stainless Steel Tubes
Brand Name:	New Era
Model Number:	ASTM A312
Certification:	ISO9001,TS16949
Place of Origin:	China
MOQ:	1 tons
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	1000 tons/month
Delivery Time:	20-30 days
Packaging Details:	Bundles Package, Wooden Box Package
Material:	TP304, TP304L, TP316, TP316L, TP321, TP247H, etc.
Delivery Condition:	Annealed and Pickled, Bright Annealed,Mechanically Polished
OD Size:	max 1"
WT Size:	0.2-2.5mm
Process Method:	Seamless or Welded
Application:	for auto industry
Technique:	Cold Rolled Hot Rolled,Cold Drawn,Seamless / Welded

Contact Now

Add to Cart

Company Info.

NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

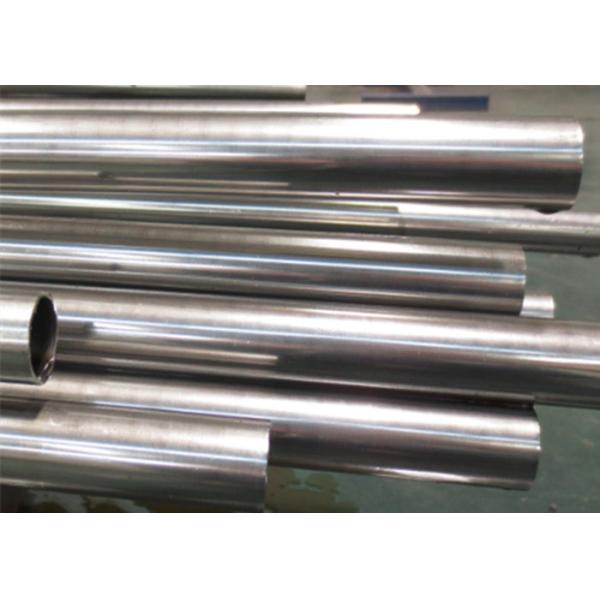

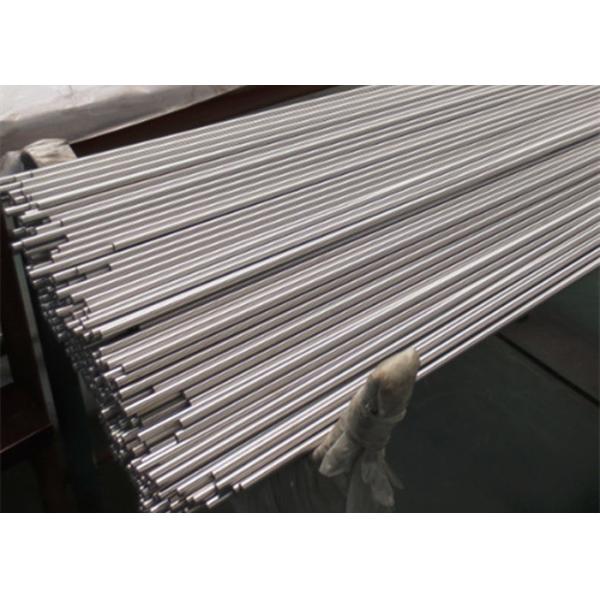

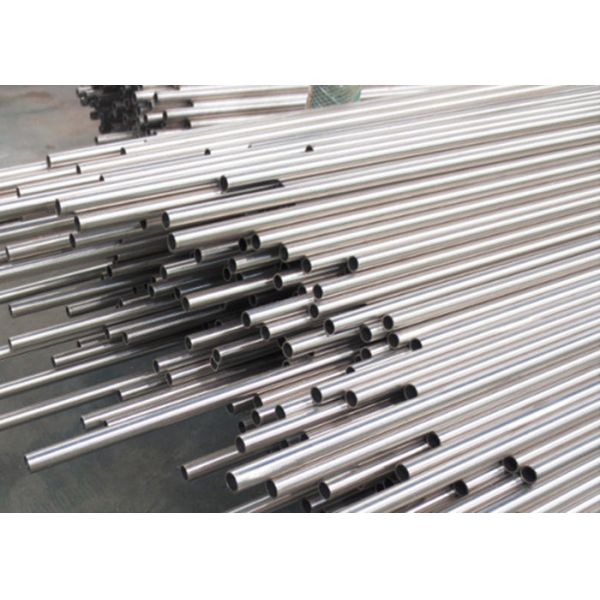

Thick Polished Stainless Steel Tubing Small Diameter 0.2 - 2.5mm WT Size

ASTM A269 TP304 TP316 TP321 Polished stainless steel tubing , small Diameter Stainless Steel Tubes for Auto Industry

Description

Stainless Steel Tubes used for auto industry

Supply Capacity

1000 tons/Month

Process Method

Seamless or Welded

Out Diameter

3.2-25.4mm

ASTM A269 High Quality 304 Stainless Steel Pipe

Specifications of stainless steel pipe

Name	ASTM A269 High Quality 304 Stainless Steel Pipe
Standard	ASTM A554,ASTM A312
Material Grade	201,202,304,316,316L,430
Main Material	a) 201 (Ni0.8%-1%) b) 202 (Ni: 3.0%-4.0%) c) 304 (Ni: 8% Cr: 18%) d) 316 (Ni: 10% Cr: 18%)
Size Range	139mm-1600mm ETC.
Thickness	0.5-30mm
Length	6m or as customers' request
Tolerance	a) Outer Diameter: +/- 0.2mm
	b) Thickness: +/- 0.02mm
	c) Length: +/- 5mm
Surface	180G, 320G Satin/Hairline 400G, 600G Mirror finish
Application	handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Chemical Composition of Material	Material Composition	201	202	304	316L	430
	C	≤0.15	≤0.15	≤0.08	≤0.035	≤0.12
	Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
	Mn	5.5-7.5	7.5-10	≤2.00	≤2.00	≤1.00
	P	≤0.06	≤0.06	≤0.045	≤0.045	≤0.040
	S	≤0.03	≤0.03	≤0.030	≤0.030	≤0.030
	Cr	13-15	14-17	18-20	16-18	16-18
	Ni	0.7-1.1	3.5-4.5	8-10.5	10-14
	Mo				2.0-3.0
Mechanical Property	Material Item		201	202	304	316
	Tensile Strength		≥535	≥520	≥520	≥520
	Yield Strength		≥245	≥205	≥205	≥205
	Extension		≥30%	≥30%	≥35%	≥35%
	Hardness (HV)		<105	<100	<90	<90

ASTM A269 High Quality 304 Stainless Steel Pipe

Wall Thickness

0.2-2.5mm

Length

6m, or as customers demand

Steel Grade

TP304, TP304L, TP316, TP316L, TP321, TP247H, etc.

Standards

ASTM A213, A249, A268, A269, A312, A554, etc.

Specification

O.D: ≤1 inch

W.T: 0.2-2.5mm

Application

Automotive Industry, such as Engine, Transmission, Brake &Fuel Chassis Systems, Power Train Systems.

Packing

1.with plastic cap to protect both ends

2.plastic bag wrapped outside the pipe

3.Plywood case packing

Annealed & Pickled
Bright Annealed
Polished to 180#, 240#, 320#, 400#, 600#

Certificate

ISO 9001:2008

Delivery time

50 days

Payment Term

T/T

Trade Term

FOB , CFR , CIF
