Vacuum Planetary Mixer Introduction

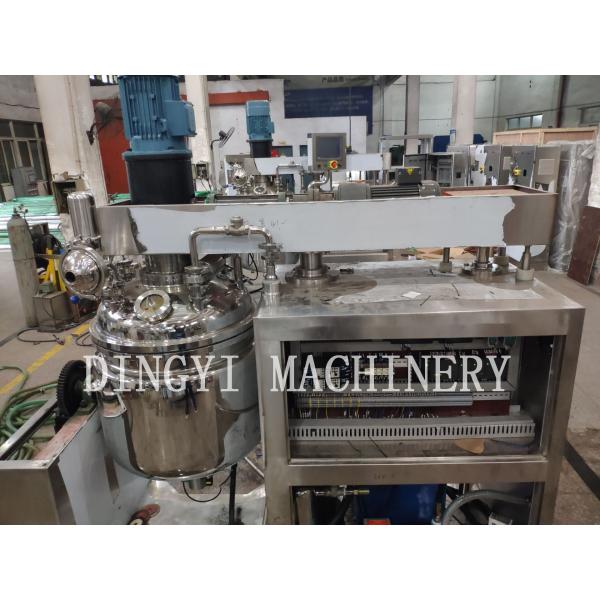

Vacuum Planetary Mixer is an ideal option to produce high-grade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, and rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc.) and food (jam, chocolate, sauces etc.) to pharmacy (ointment, syrup, paste) and chemicals (painting, adhesives, detergents). This machine is including main machine, water tank, oil tank, and platform.

Main tank is made up of 304 or 316L stainless steel with mirror polishing effect (Chamber 400MESH). Oil and water tanks are optional.

Vacuum Planetary Mixer FEATURES:

1. Japan technology Vacuum Emulsifying Mixer.

2 The machine is easy to operate, good homogenizing and emulsifying performance.

3 This machine is widely used in daily cosmetic, food and medicines, such as milk tea, fruit juice beverages, oils, skin care products, cosmetics, yogurt, milk, toothpaste etc.

4 Machine has vacuum, lifting, heating etc.

5 This machine have competitive price, and better choice.

6 Our vacuum emulsifying mixer is CE certificated.

7 Our vacuum emulsifying mixer will be warranty for 1 whole year after you get the machine at your factory.

Blender

Type: scrape blender, single way or double way rotating
Material: SUS316L
Speed: 10-40rpm
mechanical seal, NSK bearing, ABB motor, Panasonic frequency inverter

Homogenizer

Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer
Material: SUS316L
Speed: 1150-3500rpm

Discharge

Name: production discharge
Material: SUS316L
Solenoid valve make it easy to control the discharge
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.

NOTE: Due to make toothpaste, the motor power have different type, so pls contact us, we will choose a suitable machine for you. we have engineer work for toothpaste factory more than 10 year also have machinery design experience.
