| Categories | Ball Nose End Mills |
|---|---|
| Brand Name: | SUPAL |
| Place of Origin: | Changzhou,Jiangsu,China |
| MOQ: | 5PCS |
| Payment Terms: | T/T |
| Supply Ability: | 10000000PCS |
| Delivery Time: | 7-15Days |
| Packaging Details: | 1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs. |
| Product Name: | Ball Nose End Mill |
| Diameter: | R0.5-R12.5mm |
| Coating: | AlTiN, TiAIN, TiCN, TiN |
| Overall length: | Standard |
| Usage: | Copper,Cast Iron,Carbon steel,Stainless Steel |
| Packing: | Plastic Box |
| Price: | To be negotiated |
| Model Number: | OEM |
| Company Info. |
| Supal (Changzhou) Precision Tools Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

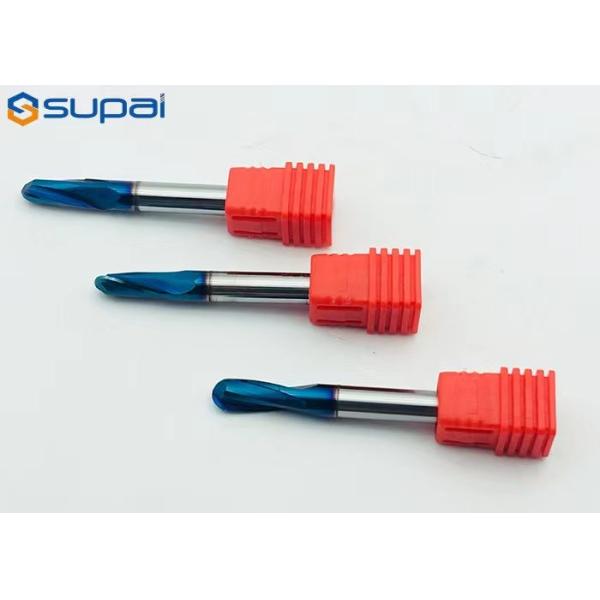

High Hardness Steel Tungsten Carbide 2/ 4 Flute Nano coating Ball Nose End Mill
| CODE | R | l | D | L |
| R0.5*4×4D×50L | 0.5 | 4 | 4 | 50 |
| R0.75*6×4D×50L | 0.75 | 6 | 4 | 60 |
| R1*4×4D×50L | 1 | 4 | 4 | 50 |
| R1.5*6×4D×50L | 1.5 | 4 | 6 | 50 |
| R2*8×4D×50L | 2 | 4 | 8 | 50 |
| R3*12×6D×50L | 3 | 6 | 12 | 50 |
| R4*16×8D×60L | 4 | 8 | 16 | 60 |
| R1*4×6D×50L | 1 | 6 | 4 | 50 |
| R1.5*4×6D×50L | 1.5 | 6 | 4 | 50 |
| R2*6×6D×50L | 2 | 6 | 6 | 50 |
| R2.5*6×6D×50L | 2.5 | 6 | 6 | 50 |
| R3*12×6D×50L | 3 | 12 | 6 | 50 |
| R5*20×10D×75L | 5 | 20 | 10 | 75 |
| R6*25×12D×75L | 6 | 25 | 12 | 75 |
| R8*30×16D×100L | 8 | 30 | 16 | 100 |
| R10*30×20D×100L | 10 | 30 | 10 | 100 |
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
Grain Size:0.7um 3320N/mm2 | Grain Size:0.6um 4000N/mm2 | Grain Size:0.5um 4300N/mm2 | Grain Size:0.5um 4300N/mm2 |
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Advanced CNC grinding machines
With 5-Axis automatic CNC grinding machines from abroad
4 Michael Deckel from Germany
3 ANCA from Australia
1 TTB from Australia
Top Work from Taiwan
Guarantee high precision and good performance.
Strict quality checking
Check each piece.Guarantee the tolerance -0.02mm
Exact helix angle and finished surface
Goods pass SGS and ISO9001
Welcome to be our agents, OEM is also available
Customized: It's available according to your drawings or samples
If you have any interest, please contact me at any time
|
