Acid Resistant Ceramic Random Packing Alumina Ceramic Cross Partition Ring

Categories Ceramic Random Packing
Brand Name: Y&G
MOQ: Negotiation
Price: Negotiable
Supply Ability: 50000mt per month
Delivery Time: 25-35days
Packaging Details: In pallets, wooden cases or weave strips as required.
Material: Alumina Ceramic
Alumina Content: 13% ~23% or specified
Type: Cross Partition Ring
Size: 6, 10, 16mmm...
Thickness: 0.5mm-30mm
Purity: 95%-99.7%
Density: 3.6-3.9g/cm3
Application: Industrial Ceramic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

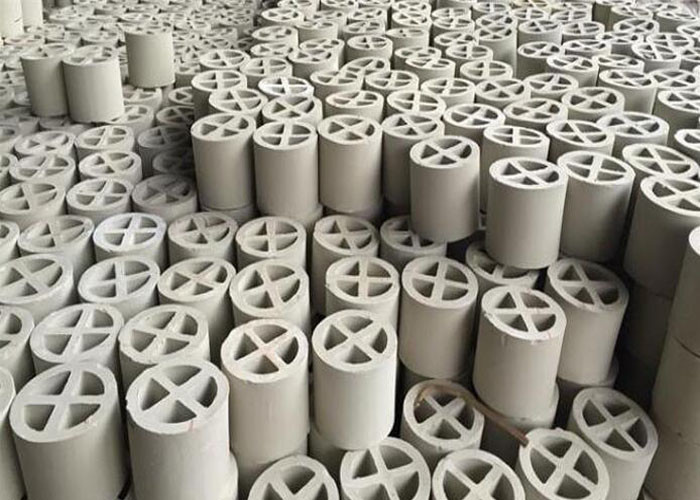

Acid Resistant Ceramic Random Packing Alumina Ceramic Cross Partition Ring

Ceramic Random Packing Ceramic Cross Partition Ring With Excellent Acid Resistant Properties


We bring forth Cross Partition Ring, which is an improved design over the basic raschig ring. The improved element is a cross partition in the raschig ring. This structure of these rings is helpful in enlarging the surface and improving efficiency of transfers. Moreover, the large size of these rings can only be used in structured packing. In the current form, Cross Partition Rings need a lot of support in the bottom most part of the random tower.Pls send inquiry for more than 5 TON.


Specification of Ceramic Cross Partition Ring:

Specifications (mm )OD*ID*H*δ
(mm)
Specific surface area (m2/m3)Void volume (m3/m3)

Bulk number

(n/m3)

Bulk density

(kg/m3)

Dry packing

(factor m-1)

Φ2525*25*31600.4841000660582
Φ5050*50*51450.506400600565
Φ8080**80*81200.561950820356
Φ100100*100*101100.531000850252
Φ120120*120*12750.55370860146
Φ150150*150*15600.58295650101

Features: excellent acid resistant properties, the ability of reisting various inorganic acid, organic acids and organic solvents corrosion(except HF acid), high temperature in a variety of occasions, c can be used at various high temperatures.


Application: wide range of applications, can be used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
