2 / 2 Way Small Stainless Steel Water Valve , Water Solenoid Valve 2S-025-08

2/2 Way G1/4" Inch Small Stainless Steel Water Solenoid Valve 2S-025-08

The 2S series solenoid valve is made of all stainless steel and is suitable for occasions requiring corrosion resistance. It is an ideal control element for pure water equipment, food, medical and other machinery.We also have 2W series solenoid valve which made of brass,and all belong to normally closed type.The voltage common are DC12V,DC24V,AC110V,and if you have special demand,we can made to your demand.

Feature of 2S Solenoid Valve

1.Quick opening and closing

2.High reliability

3.High temperature resistance and corrosion resistance

Water Solenoid Valve 2S-025-08 Characteriscs

Valve Body Material:Stainless Steel

Port Size:1/4" inch

Orifice:2.5mm.

Working Temperature:-5~100℃

MIQ=1

Specification

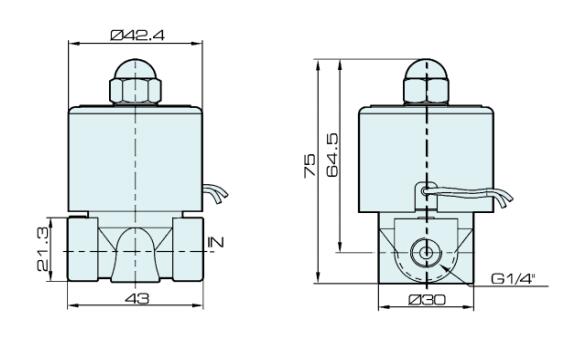

Dimension Drawing of 2S-025-08 Solenoid Valve

2S Series Solenoid Valve

Packing

Solenoid valve failure and elimination

1) The solenoid valve does not work after being energized:

1. Check if the power supply wiring is bad ------- re-wiring and connector connection;

2. Check if the power supply voltage is within the ± working range ------ adjust to the normal position range;

3. Whether the ring is desoldered ------ re-welding;

4, coil short circuit ------ replace the coil;

5, the working pressure difference is not appropriate ------ adjust the pressure difference ------ or replace the proportional solenoid valve;

6, the fluid temperature is too high ------ replace the proportional solenoid valve;

7. There are impurities to make the main valve core and moving iron core of the solenoid valve be stuck ------ clean, if there is damage to the seal, replace the seal and install the filter;

8, the viscosity of the liquid is too large, the frequency is too high and the life has been replaced by ------ product.

(2) The solenoid valve cannot be closed:

1. The seal of the main spool or the iron core has been damaged ------ replace the seal;

2. Whether the fluid temperature and viscosity are too high ------ replace the solenoid valve of the counterpart;

3, there are impurities into the solenoid valve spool or moving iron core ------ cleaning;

4, the spring life has reached or deformed ------ replace the spring;

5, the orifice balance hole blockage ------- timely cleaning;

6, the working frequency is too high or the life has reached ------- re-election of products or replacement products.

(3) Other situations:

1. Internal leakage ------ check if the seal is damaged and the spring is not properly assembled;

2, external leakage ------ the connection is loose or the seal is broken ------ tighten the screw or replace the seal;

3. There is noise when energized ------ fasteners are loose and tightened. The voltage fluctuation is not within the allowable range and the voltage is adjusted. The core suction surface has impurities or unevenness, and it is cleaned or replaced in time.

Welcome your inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
