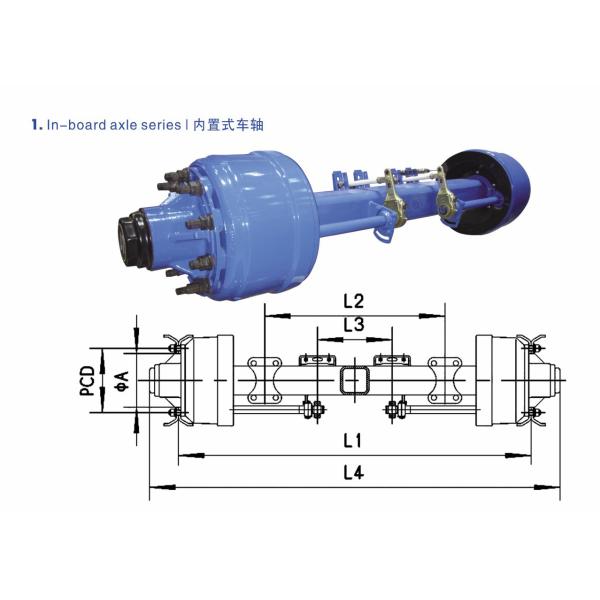

Drum Axles Performance Truck Parts American Type Axles In-Board Axle 8T - 20T

Truck Trailer Axles , Drum Axles, American Type axles In–board Axle 8T-20T


Truck Trailer Axles , Drum Axles, American Type axles In–board Axle 8T-20T

Type of Trailer AxlesIn-Board Type axles
Trailer Axles has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.
Optional of Trailer Axles: ABS and automatic slack adjuster available.
Trailer Axles Capacity:8T–20T
Track of Trailer Axles:1840MM (size are available)
Brake of Trailer Axles:420*200MM (size are available)
Beam of Trailer Axles:150*150MM (Square) (size are available)
Beam Thicknessof Trailer Axles:10MM-25MM
Our American type in–board axle is made of high-intensity alloy steel with excellent performance:
Features of Trailer Axles:
1.Unique one-piece, special heat-treated low-alloy steel axle beam offer more stability greater capacity and lighter weight. It is a world-class technology.
2.Integral P type swage straight spindle or tapered spindle with induction-hardened bearing journals -----provide superior fatigue capability.
3.Spider Camshaft and anchor pin bores are machined with reference to the spindle after the welding operation ---increase stability and braking performance
4.XEM OR Q GP brake kits with heavy duty brake return spring.
5.High performance premium non-asbestos brake linings-----extend service life.
6.Improved seal at camshafts-----protect the brake drums from the grease lubricant more safety
7.New 100% tight fit hub cap with additional O ring-----provide optimum seal performance.
8.Grease lubricant is supplied by SHELL and EXXON MOBIL.
9.Axles meet USA FMVSS-121 requirements and Australian ADR 38.
American Type AxlesContain in-board axle series,out-board axle series,spoke wheel axle series,car transport trailer axle series and small axle series.
Axle has two different types,the stronger axle and one-piece axle.The former weight is about 5-20kg more than the one-piece axle.

Model105(km/h) Max. Capacity (kg)"S" Cam Brake Seriesφ x Width (mm)Track TR (mm)Spring Seat Installation LM (mm)Axle Beam (mm)Center distance of chamber GM (mm)Studs (mm)P.C.D. (mm)φ H (mm)Total Length LP (mm)Recommended Wheel
GET08Y118,000S 420×1501850≥1080〇 12742810xM22x1.5 ISO335281~21457.50V-20
GET10F1110,000S 420×1801840≥940[]15038510xM22x1.5 ISO335281~21907.50V-20
GET11Y1011,000S 420×1901850≥1000〇 12745010xM22x1.5 ISO225176~21556.5-15
GET12Y1112,000S 420×1801820≥950〇 12736510xM22x1.5 ISO335281~21707.50V-20
GET12K1112,000S 420×1801820≥950〇 12736410xM22x1.5 ISO335281~21707.50V-20
GET13F1113,000S 420×1801840≥940[]15038510xM22x1.5 ISO335281~21907.50V-20
GET14F1114,000S 420×2201840≥940[]15034810xM22x1.5 ISO335281~21908.0V-20
GET15F1115000S 420×1801840≥940[]15038110xM22x1.5 ISO335281~22008.0V-20
GET16F1116,000S 420×2201850≥940[]15035310xM22x1.5 ISO335281~22108.5V-20
GET20F1320,000S 420×2201850≥940[]15035310xM22x1.5 ISO335281~22558.5V-20
GET13F1813,000S 420×1801840≥940[]1503818xM20x1.5 JIS285221~21557.5V-20
