Stainless Steel API Adaptor Valve Truck Spare Parts For Tanks GETH806D -100

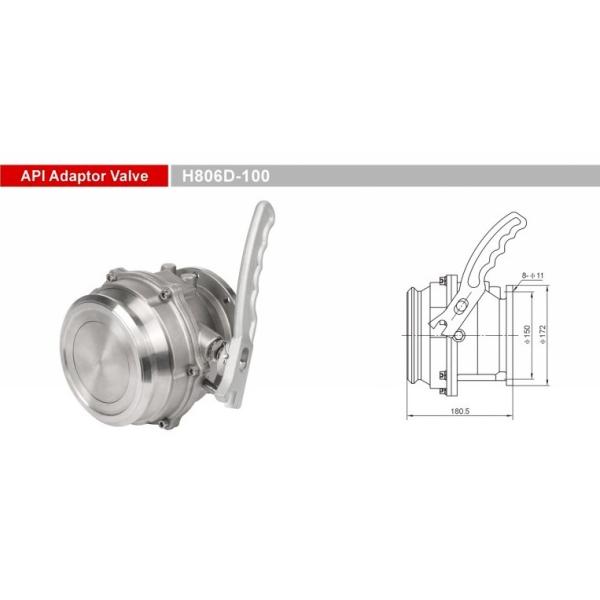

Stainless Steel API Adaptor Valve for tanks GETH806D-100


Stainless Steel API Adaptor Valve for tanks GETH806D-100
TANKER PARTS TECHNICAL DATA
Norminal Diameter of API Adaptor Valve4"
Working Pressure of API Adaptor Valve0.6MPa
Max Flow Rate of API Adaptor Valve2500L/Min
Material of API Adaptor ValveStainless Steel
Open Method of API Adaptor ValveMECHANICAL
Temperature Trange of API Adaptor Valve-20~+70℃
Description of API Adaptor Valve
API Adaptor Valve is installed on one side of the bottom of the tanker, with the design of quick connection structure. Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage, it is much more safe and reliable when doing the work of loading and uploading. This product is suitable for water, diesel gasoline and kerosene and other light fuel, but it cannot be used in corrosive acid or alkali medium.
Benefit and features of API Adaptor Valve
1. Hardening Treatment
The whole valve body is passed a special hardening process to improve its service life
2. Superior Sealing
The TPFE sealing gaskers ensures the large usage of the valve.
3. Second Gear Open
When do the handle open, there are two stalls to set the flow rate according to the customer’s demand.
4. Standardized size
Interface dimension is designed according to the API RP1004 Standard, docking with the standard API connector.
5. Light Weight
The main Body is made of aluminum alloy; it is more light and sturdy
6. Superior Process Performance
Reasonable design for the less pressure differences ensures the large input and output flow rate.
7.Sight glasses Option
Convenient to observe the inner working situation
8. Foundation for interlock valve
When install the interlock valve, the API Adaptor can be controlled by Air.
9. Easy-Maintenance
When in the situation of no need to replace the valve, just to replace the sealing gasket.
