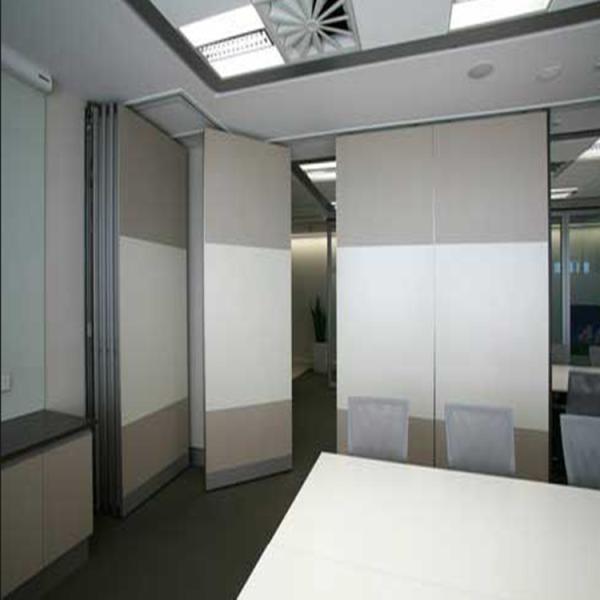

Top Hanging 65mm Melamine Surface Office Partition Wall / Acoustic Movable Walls

Top hanging 65mm melamine surface operable soundproof movable office partition wall

Product Description

Bunge 65mm office movable partition wall divide your space flexibly with high sound insulation performance.no need floor track, top hung sys.The 65 mm office movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.

Features ＆ Benefits

1. Make full use of space and create space

2, easy to install and disassemble

3, good sealing, good soundproofing effect

4, surface material can be clean easily

5, accept OEM and ODM service

6, a variety of specifications, materials, colors for you to choose

7, easy collection and space saving

Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)

Retractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.

Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.

Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.

Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.

Stacking: The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.

Guangdong Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partitions, Folding Doors, Sliding Doors, Office Furniture. We also artistically designs and carefully do research and development (R&D).

Ebunge company has adopted the advanced partition technology of USA, Germany and Denmark. We have a professional staff with more than 10 years of experience in design, production, and installation. Also, have a good after-sale system and team.

Our products (Movable Partitions and Acoustic Panels) are widely used in hotel banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals auditoriums, stadiums,s and so on.

Nowadays, the modern trend in buildings needs more flexibility and convenience, acoustic and soundproof to use the space of their rooms. Most of building designers like to prepare an open-plan space, with soundproof effects, and easy to operate. The solution to the designer's need is the Movable Partitions and Acoustic Panels..

The movable partition walls can be customized with various surface finishes, such as melamine, MDF, Plywood, fabric and PU leather. Top hanging system with only ceiling but no floor tracks so it can be pushed and pulled everywhere easily according to the direction of tracks. The most popular panel thickness is 85mm and its height can be up to 6 meters. Both wooden and glass operable walls are available in our factory which can meet different requirements of our customers.

Movable Wall Manufacturer
◆Individual panels can be stored away for maximum space usage.
◆Operable top and bottom seals for effortless operation.
◆Aluminum frame construction for enhanced acoustics.
◆The system offers various levels of sound reduction
◆Unique track and carrier system ensuring quiet and easy operation.
◆Numerous panel stacking options for complete flexibility.
◆Top hung and no floor track.
◆Extensive range of surface finishes can be available.

Movable partition wall production

We Offer:

◆ A full professional design service

◆ Survey and installation guide

◆ Using top quality materials and components

◆ A fully experienced work team

◆ Maintenance contracts to ensure your valuable asset remains in full work order.
