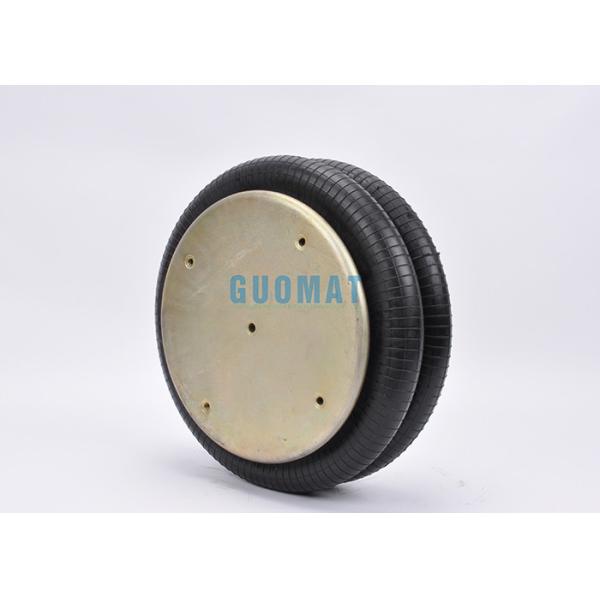

W01-358-7135 Industrial Air Spring Neway 90557001 Firestone Air Bag Kit

Firestone W01-358-7135 Air Spring Neway 90557001 Air Spring Firestone Air Bag Kit

The installation of any components or kits should only be performed by personnel who have experience in installing and correctly operating vehicle systems. The person installing any component or kit is also responsible for determining the suitability of the component or kit for a particular application.
Manufacturers and distributors are not responsible for any misuse of these products. Be sure to use it according to the prompts and verify that the vehicle or equipment you are using is not suitable, because different vehicles and the equipment vary greatly. Any manufacturer and distributor are not responsible for any products you purchase here.

Technical Parameters of

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2X1.75

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth :4 pcs X 1/2X1.75

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter (Width): 315 mm

Bottom Cover Plate Diameter (Width): 315 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter : 395 mm

Maximum Height: 300 mm

Working Stroke : 90 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

GUOMAT NO.:2B53022

NEWAY 90557001

SAF HOLLAND : 90557001
GRANNING : 15647
CONTITECH : FD 530-22 311
FIRESTONE : W01 358 7135
GOODYEAR : 2 B 14-360
OLD WUHLERMANN : 2RC-355-3C

Goodyear Bellows Number: 578-92-3-353
Goodyear Part Number: 2B14-360
Firestone Bellows Number: 21D
Firestone Part Number: W01-358-7135

Contitech No:FD530-22 311

Contitech No:FD530 22 311

FIRESTONE:21T2 W01-358-7135

FIRESTONE:21T2 W01 358 7135

FIRESTONE:21T2 W013587135

GOODYEAR:2B14-360

GOODYEAR:2B14360

GOODYEAR:2B14 360

GOODYEAR::556 22 8 554

GOODYEAR::556-22-8-554

GOODYEAR::556228554

Replaces: Neway 90557001, Pezzani AR-21-A, Ridewell 1003587135C, Silent Drive, Truckstell (Marion Mfg.) 63641, Truckstell (Marion Mfg.) 63644, and Hendrickson Can. B-12514-014
