Q235 Q255 Auxiliary Equipment Steel Structure Broiler Poultry Farm

Categories Auxiliary Equipment
Brand Name: Strongwin
Model Number: Steel Structure
Certification: CE,ISO,SGS
Place of Origin: China
MOQ: one set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50tons per day
Delivery Time: 15 working days after deposit
Packaging Details: 40 feet container
Product name: Q235 Q255 Steel Structure Broiler Poultry Farm Design
Type: Light
Pillar & Beams: H type steel
Purlin: C type steel
Surface Treatment: Painted & Hot dip galvanized
Window: Aluminiumn Alloy, PVC, Sandwich Panel etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

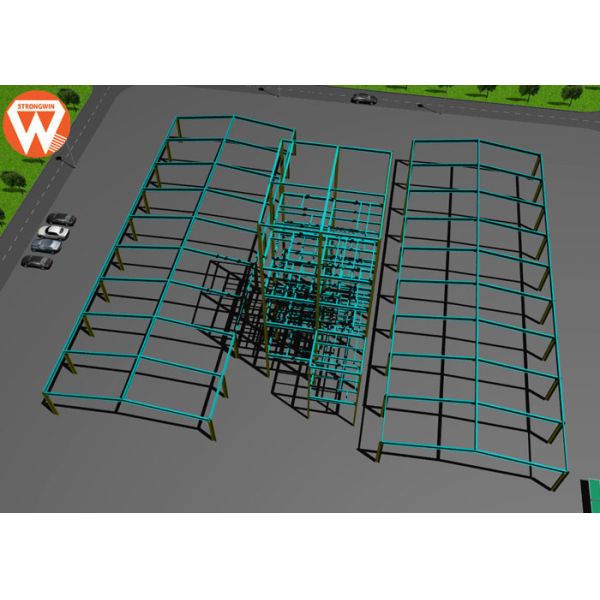

Q235 Q255 Auxiliary Equipment Steel Structure Broiler Poultry Farm

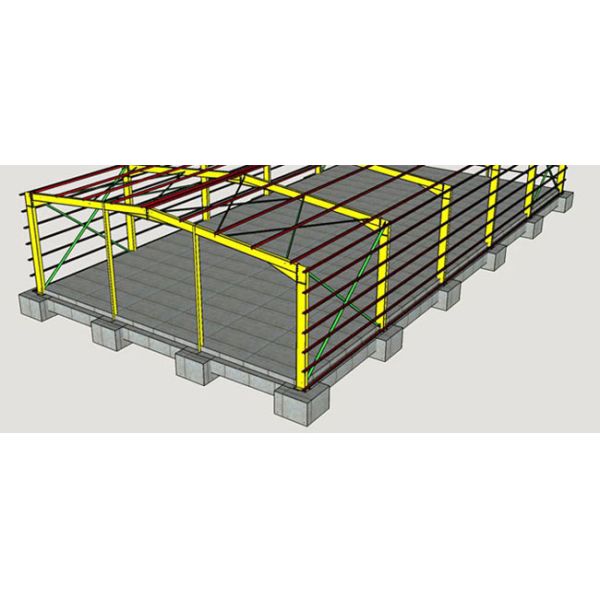

Strongwin Q235 Q255 Steel Structure Broiler Poultry Farm Design


Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.


Advantages of prefabricated steel structure


1. Light-weightness and more resistance to earthquakes and strong winds.
2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.
3.Shorter construction period with the help of modularity and error-free prefabrication of building elements.
4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory.
5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space.


Technical parameters of prefabricated steel structure


Main Steel FrameH section steelQ235/Q355 steel
WeldingAutomatic submerged arc welding
Rust removalSand blasting
Surface finishAlkyd paint or galvanized
Intensive boltM20,Grade 10.9
Supporting SystemAngle braceL50x4,Steel Q235, processed and painted
Horizontal braceΦ25, Steel Q235, processed and painted
Column branceΦ25, Steel Q235, processed and painted
Tie rodΦ114*4, Steel Q235, processed and painted
Ordinary boltM12 Galvanized bolt
RoofPurlinC180*75*20*2.5,Steel Q235, galvanized and painted
Roof panelSandwich panel or corrugated steel sheet
Sky light6mm thick PVC
AccessoriesGlass cement, self-tapping screws, etc.
Edge cover0.5mm steel sheet profile trimming
Gutter0.5mm thick sheet steel profile or galvanized sheet
Down pieΦ150PVC
WallsPurlinC160*60*2.5,Steel Q235, painted
WallSandwich panel or corrugated steel plate
AccessoriesGlass cement, self-tapping screws, etc.
Edge cover0.4mm steel sheet profile trimming
VentilationVentilation ball
Doors & windowsRolling door/sliding door PVC/alu/steel/window
