| Categories | Stainless Steel Seamless Pipe |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317 |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Price: | NEGOTIABLE |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Delivery Time: | 10-15 DAYS |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Specification: | ASTM A312/A312M-2013 , ASME SA312/SA312M-2013 |
| Material: | TP310S TP310H 310S 310MoLN |
| Type: | Straight Tube , U Bend Tube, Coil Tube |
| Form: | Samless /Welded |
| Surface: | Bright annealed/Pickled annealed |
| Package: | PLY-WOODEN CASE |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

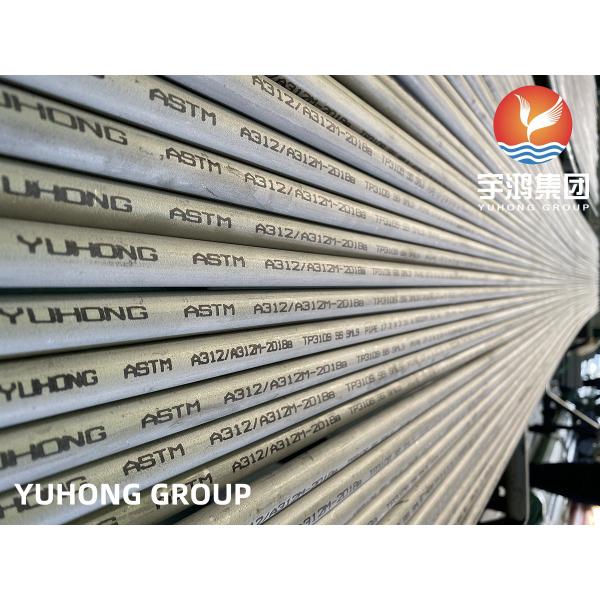

ASME SA312 TP310S | ASTM A312 TP310S TP310H 310S 310MoLN Stainless Steel Pipe For Oil and Gas Industrial
310S is the low carbon version of 310 and is suggested for applications where sensitisation, and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem. Our 310S 310H is manufactured in accordance ASTM A 213 / ASME SA213, ASTM A312 / ASME SA312.
| Pipe Specifications | ASTM A312 / ASME SA 312 |
| Pipe Standard | DIN, JIS, ASTM, EN, GB, AISI, ASME |
| Pipe Thickness | 0.3mm - 50 mm |
| Welded Pipe Size | 5.0 mm - 1219.2 mm |
| Seamless Pipe Outer Diameter | 6.00 mm OD up to 300 mm OD, Sizes up to 12" NB |
| Pipe Schedule | SCH 5S, SCH10S, SCH 40S, SCH 80S, SCH 160S, SCH XXS, SCH XS |
| Pipe & Tube Type | Seamless / ERW/ EFW / Welded / Fabricated Pipe |
| Pipe & Tube End | Plain End, Beveled End, Treaded Pipe. |
Stainless Steel Seamless Pipe Chemical Composition:
| Grade | UNS | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo | Ni |
| TP310S | S31008 | 0.08 | 2 | 0.045 | 0.03 | 1 | 24.0-26.0 | 0.75 | 19.0-22.0 |
Stainless Steel Seamless Pipe Mechanical Properties:
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) | Hardness, HB(max) |
| TP310S | 75【515】 | 30【205】 | 35 | 192 |
Stainless Steel Seamless Pipe Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 310S | 1.4845 | S31008 | SUS310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
Stainless Steel Seamless Pipe tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the
manufactured products supplementary testing. The tests conducted
under this include:
|
