2 Inch Stainless Steel Tube For Heat Exchangers / Condensers 304 316

2 inch stainless steel tubing for Heat Exchangers / Condensers 304 316

Grade: UNS N02200, UNS N02201

Production: Cold worked, Hot worked

Size range: O.D.:6-127mm W.T.:1-30mm L: according to Customer requirement

Delivery Conditions:

Type one: Pickling Pipe

Size: OD:0.23''-80''(5.8-2032mm)

WT:0.01''-1.125''(0.25-28mm)

ANSI/ASME size as under,

NPS:1/8''-80'' SCH:5/5s,10/10s,20/20s,40/40s,80/80s,120/120s,160/160s acc. to ANSI B36.19/36.10

other standard of size is for ready choice.

Length: according to clients' request.

Standard:JIS DIN GB BS ASTM(ASME) etc.

Surface Finish: Annealed,Polish,Brush etc.

Application:for fluid and gas transport structure and machining.

Packing:Plywood cases or bundles.

Type two: Bright Annealed Tube

Size: OD range:6-50.8mm WT range:0.71-3.68mm Length:6-24m

Standard:ASTM A249, EN 10217-7, etc

Process Method:Welded ,bright annealed.

Surface Finish:Bright Annealed(BA),pickling,bright annealed(BA)&polish

Packing:Plywood cases or bundles.

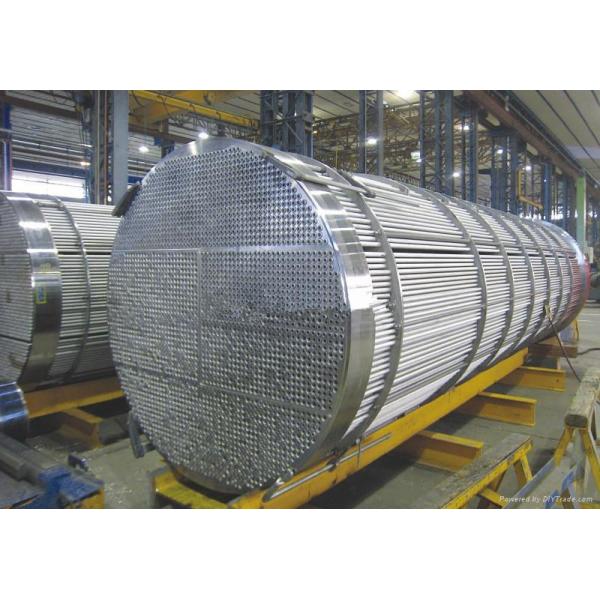

Applications: Steel tubes for Heat Exchangers and Condensers

Mechanical and Inspection:

Tension Test

Tensile Properties

Hydrastatic Test or Non Destructive Electric Test

Chemical Analysis

SUPPLEMENTARY REQUIREMENTS:

S1 Hardness Test

S2 Tension Test

S3 Nondestructive Test

S4 Test Report

Referenced Documents:

ASTM Standards:

ASTM A370 Test Methods and Definitions for Mechanical Testing of Steel Products

ASTM E30 Test Methods for Chemical Anaysis of Steel, Cast Iron, Open-Hearth Iron

and Wrought Iron

ASTM E 59 Practice for Sampling Steel and Iron for Determination of Chemical Composition

Military Standards:

MIL-STD-129 Marking for Shipment and Storage

MIL-STD-163 Steel Mill Products Preparation for Shipment and Storage

Federal Standard:

Fed. Std. No. 123 Marking for Shipments

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
Corporate Culture:
We focus on Quality First, Quality Traceability, and Quality Stability!
We focus on Customer First, People First, and Quality-Oriented!
Success:
First factory started in 1997, in the name of Torich , now covers 50000 square meters of factory building, with more than 100employees, and over 45 million RBM assets.
In 2008, we started the company of Torich International Limited for international business and marketing.
Welcome partners from all over the world for long term cooperation!
