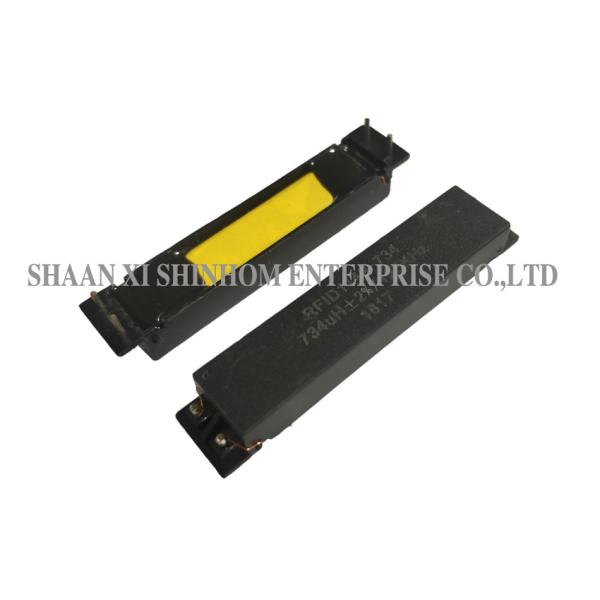

Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range

RFID antenna coils for RFID system and smart IC card application

FEATURES:

• The smallest emitter antenna coil
• Various RFID coils structure meet customer specifications:
• High Q value and wide inductance range
• Honeycomb type winding with silk copper wire
• Customized to customer specifications
• Rated current up to 50A
• Operating temperature: -55 to +155 °C
• Wire diameter 0.04mm to 1.3mm
• RFID coils for access control system RFID antenna
• RFID cylinder coils
• RFID coils for smart IC card
• Wireless charging coils
• Custom-made are welcome

Electrical specification:

• L: 734uH±2% @125KHz,1V
• DCR: 2.8Ω±10%
• Q: 120 Min@125KHz,1V
• SRF: 1.7MHz Min
• Operating temperature: -40℃ to +125℃
• Storage temperature: -40℃ to +85℃

For More RFID antenna coil, Please Go To Our Website Or Contact Us.
