| Categories | Pure Sine Wave Inverter |
|---|---|
| Brand Name: | Chanpower |
| Model Number: | NB |
| Certification: | CE FCC ROHS |
| Place of Origin: | China Shenzhen |
| MOQ: | 200 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/DAY |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Carton |
| Rated Power: | 12KW~25KW |
| Battery Voltage: | 96V / 192V / 240V |
| Wave Output: | Pure sine wave |
| AC Charge Cur.: | 0-15A adjustable |
| Solar Controller: | PWM / MPPT |
| Communication: | Optional |

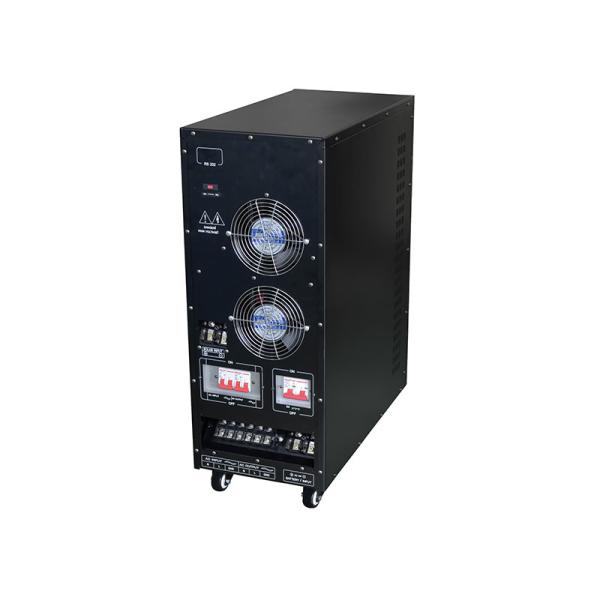

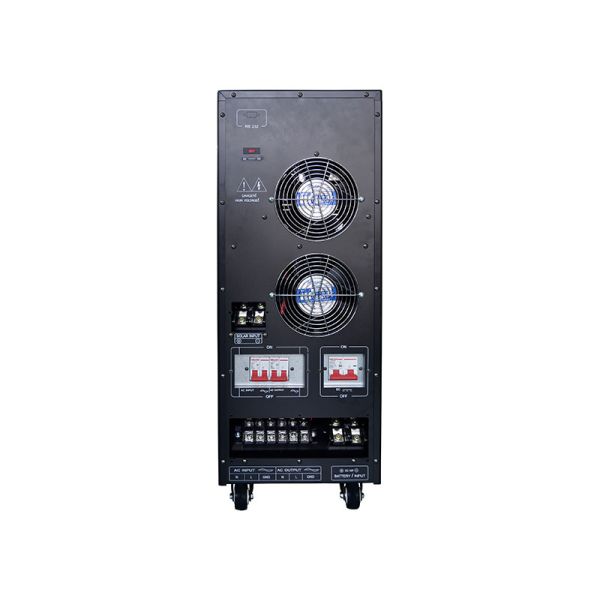

Solar Inverter Controller Pure Sine Wave Low Frequency Inverter Charger 12KW~25KW
Application Area
Feature
Parameter
| Specification | |||||
| Model: NB | 12396/192 | 153192/240 | 203192/240 | 253240 | |
| Rated Power | 12KW | 15KW | 20KW | 25KW | |
| Battery Voltage | 96V/192V | 192V/240V | 192V/240V | 240V | |
| Size(L*W*Hmm) | 600*300*800 | ||||
| Packing Size(L*W*Hmm) | 665*365*830 | ||||
| N.W.(kg) | 102 | 108 | 113 | 119 | |
| G.W.(kg) (Wooden Packing) | 115 | 121 | 130 | 136 | |
| Parameters | |||||
| Input | Voltage Range | 98VAC~125VAC / 102VAC~131VAC / 107VAC~137VAC /195VAC~250VAC / 204VAC~262VAC / 213VAC~273VAC | |||
| Frequency Range | 45Hz~64Hz | ||||
| Output | Voltage Range | 110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% (Battery Mode) | |||
| Frequency Range | 50Hz±0.5 or 60Hz±0.5 | ||||
| Output Wave | Pure Sine Wave | ||||
| Total Harmonic Distortion | ≤3% | ||||
| Transfer Time | ≤4ms | ||||
| Efficiency | ≥85% | ||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||
| AC Charging current | Max 15A | ||||
| Inside Solar controller (Optional) | Charging Mode | PWM | |||
| Charging current | 96V/192V/240V System: 50A,100A | ||||
| PV Input Voltage Range | 96V System: 120V-176V; 192V System: 240V-352V; 240V System: 300V-440V | ||||
| Max PV Input Voltage(At 25℃) | 96V System:200V; 192V System:400V; 240V System:500V | ||||
| PV Array Maximum Power | 96V System:5.6KW,11.2KW；192V System:11.2KW,22.4KW；240V System:14KW,28KW | ||||
| Battery Type | According to Customer Requirements | ||||
| Display | LCD | ||||
| Thermal method | Cooling fan in intelligent control | ||||
| Communication | RS232(Optional) | ||||
| Protection | Over-load | Overload exceeds 110%,automatic shutdown in 30 secs；Overload exceeds 120%,automatic shutdown in 2 secs(Under mains supply mode, it will not shutdown if overload, just keeping sound) | |||
| Short circuit | Output short-circuit, automatic shutdown after keeping sound 20 secs | ||||
| Battery | High or low voltage protection | ||||
| Reverse Polarity | Reverse Polarity protection(Optional) | ||||
| Environment | Noise | ≤55dB | |||
| Temperature | -10℃~40℃ | ||||
| Humidity | 10%~95%(No condense) | ||||
| Alarm | A | Under normal working situation, buzzer without alarm sound | |||
| B | When battery are fault or under overload protection, buzzer keeping sound 4 times each second | ||||
| C | When inverter starts in normal situation, buzzer reminds 5 times | ||||
|
