0.5V 0.07W poly crystalline silicon sunpower solar ZW-5318 53x18x2.5mm

Categories Monocrystalline Solar Panel
Brand Name: ZHIWANG
Model Number: ZW-5318
Certification: IS09001/14001/CE/TUV/UL,CE, EMC
Place of Origin: CHINA
MOQ: 500 SETS
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders.
Supply Ability: 300sets/day
Delivery Time: 5-8 WORKING DAYS
Packaging Details: Standard export carton package or wooden box; in well protected carton or wooden box with pallet. Usually,2sets in one carton.Then put the carton in wooden case.
Material:: Polycrystalline silicon, epoxy adhesive, PCB
Battery: 1
Size: 53x18x2.5mm
Operating temperature: -40°C to +85°C
Weight:: 2g
Peak Power:: 0.05W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

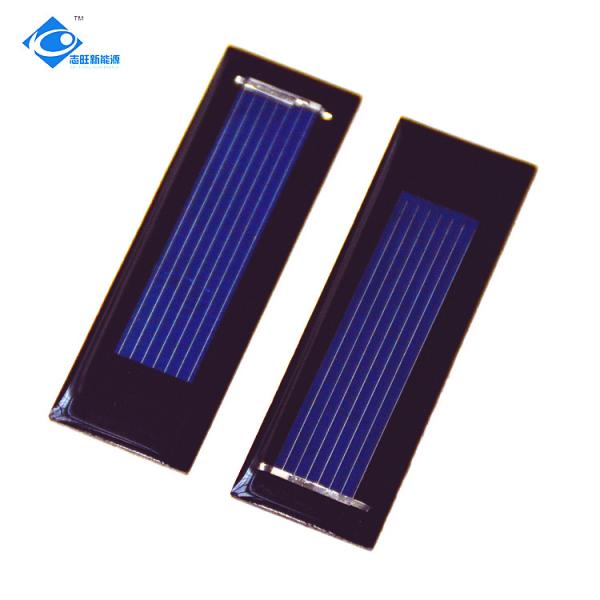

0.5V 0.07W poly crystalline silicon sunpower solar ZW-5318 53x18x2.5mm




Hot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318


Model:ZW-5318
Brand:Zhiwang
Size:53mmx18mmx2.5mm
Material:Poly or Mono crystalline silicon, epoxy adhesive, PCB
Battery:1
Peak power:0.07W
Max voltage:0.5V
Max current:0.13A
Open voltage:0.55V
Short current:0.30A
Weight:2.4g
Optimized cell efficiency:17%-21%
Operating temperature:-40°C to +85°C
NOCT48°C+/-2°C
Guaranteed3 year:90% of its nominal power rating
CertificatesCE, RoHS, EMC
CellsMono or Poly crystalline silicon Photovoltaic cell
Maximum Rated Current Series1A
Temperature Coefficients of Pmax-0.435%
Temperature Coefficients of Voc-0.35%
Temperature Coefficients of Isc0.043%
Standard Testing Conditions:AM1.5 E=1000W/m2 T=25℃ Luminous intensity: 38000Lux
Current temperature coefficient%/K0.06+/-0.01
Voltage temperature coefficientmV/K-(78+/-10)
Power temperature coefficient%/K-(0.5+/-0.05)

Features

1. High cell efficiency with quality silicon materials for long term output stability;

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;

4. Both Poly-crystalline and Mono-crystalline;

5. Excellent performance in harsh weather;

6. Outstanding electrical performance under high temperature and low irradiance;

7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;

8. The size and shape can be customized;

9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.

10. Quality solar cells with high solar energy conversion up to 21.5%.

11. Mono-crystalline or poly-crystalline silicon solar cells are for options.

12. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.

13. Lifespan up to 3 years.

14. Rigorous quality control meeting the highest international standards;

15. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;

16. Products meet international standards and through professional testing and certification authority (CE EMC ROHS).

17. Resin/Epoxy PCB solar panel,effectively increase waterproof,dust proof,wear resistance,elastic,heat resistance.

18. ETFE and PET PCB surface available for solar panel photo-voltaic.

19. Super light to carry easy anytime, anywhere.

20. High efficiency poly crystalline cells in solar panel photo voltaic.


Quality Assurance Testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test


Module characteristic:
1. High conversion rate and efficient output Poly crystalline Silicon.
2. Mini Solar Panels with excellent weak light effect to charge solar kits system.
3. High quality and high transmittance of toughened glass special for mini solar panels.
4. The unique process makes the components look strong and anti-snow, and easy to install.
5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.
6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.

.png





Yuyao Zhiwang.png 20190807_.png



Q. Are you a manufacturer or a trading company?

A. We are two factories in Yuyao,Zhejiang and Xuzhou, Jiangsu, with OEM& ODM& Customization available.

Q. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our Hot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318 sample.

Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q. What is your terms of delivery?
A: EXW, FOB, CIF. And other accepted payment method.
Q. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your Hot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318 order.
Q. Can you produce according to the samples?
A: Yes, we can produce by yourHot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318 samples or technical drawings. We can build the molds and fixtures.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery Hot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318.

Q.How many years for warranty?

A: Our warranty is 3 -5 years for our Hot Sale Durable Indestructible Mini Solar Panel 0.5V Epoxy Adhesive Solar Panel ZW-5318.
