| Place of Origin: | Hunan, China |
| Brand Name: | WINNER |
| Model Number: | SW-B252 |
| certificate: | CE/ROHS |
| Power supply: | AC220V, AC110V, AC24V |
| Color: | various |
| Temperature of medium: | 0C...93C |
| Rated pressure: | PN20 |
| Spring return time: | 4-5s |
| Motor power: | 6.5W 7VA |
| Type: | 2-way or 3-way |
| Pipe connection: | internal thread |
| OEM: | Acceptable |
| Supply Ability: | 5000+ per months |
| Packaging Details: | Carton box |
| Port: | Changsha |
| MOQ: | 10Pcs |
| Price: | negotiation |
| Certification: | CE |
| Delivery Time: | 3-7 work days |
| Payment Terms: | T/T, Paypal,Western Union |
| Company Info. |
| Winner Ball Valves Co.,Ltd |
| View Contact Details |
| Product List |
Spring return zone valve
Company introduction
Winner company is the first company in China to develop, produce and sell small motorized ball valve and put the ball valve for central air condition system and HVAC systerm.WE have also got motorized ball valves, CE, ROHS certification.

The typical customer
We are the single supplier of Daikin air condition in China and We have supplied for daikin four years of electric ball valve

The product applications

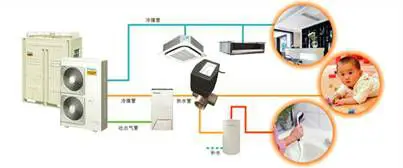

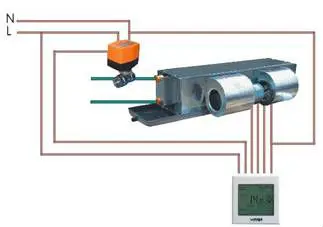

1,Can be used for central air-conditioning fan coil

2, Can be used in multi-function VRV heat pump heating system

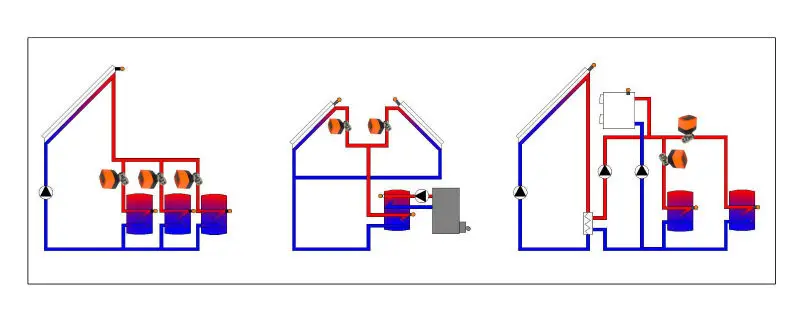

3,Can be used in solar hot water system;

4,Can be used in industrial equipment, new energy equipment, water treatment system and so on;

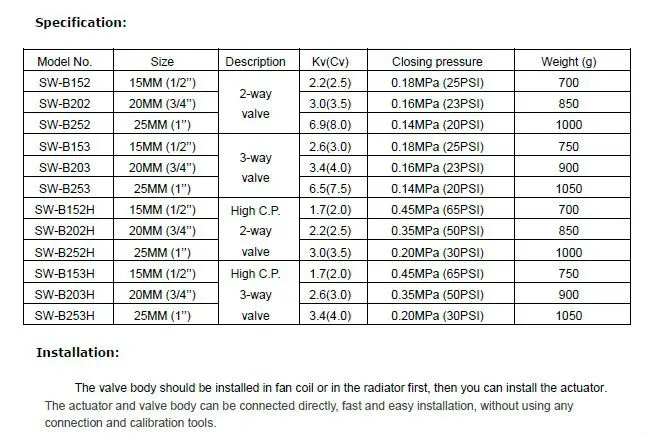

The product technical parameters

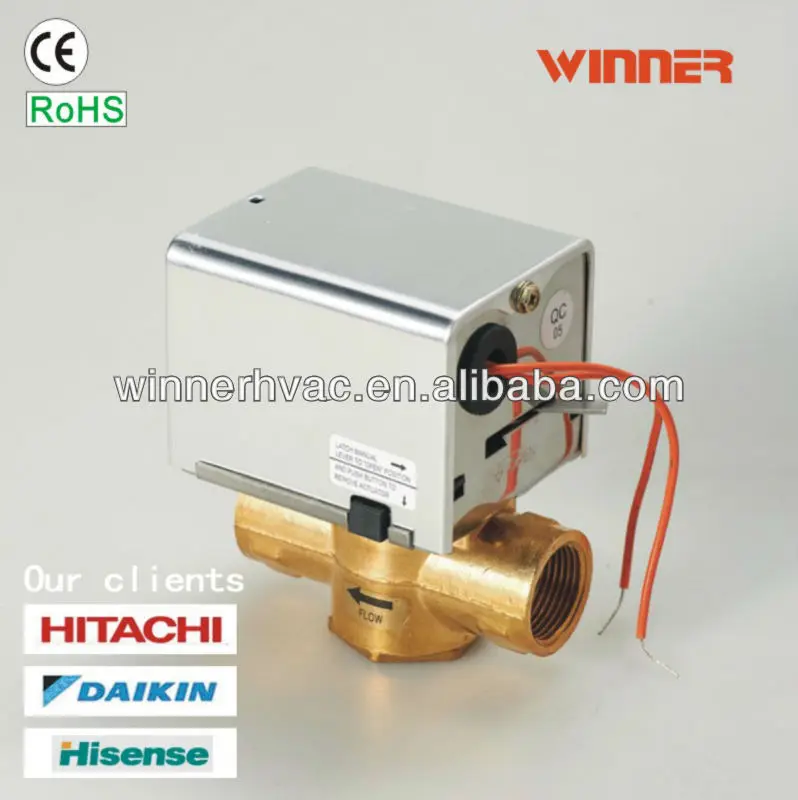

2 way spring return ball valve

2 way ball valve body
Actuator
The photos of production, equipment and warehouse
Semi-finished valve body The valve leak detection
Production line Test line

Packing
Guarantee period
Guarantee period:12 months
Service time:30000 times
|   |
