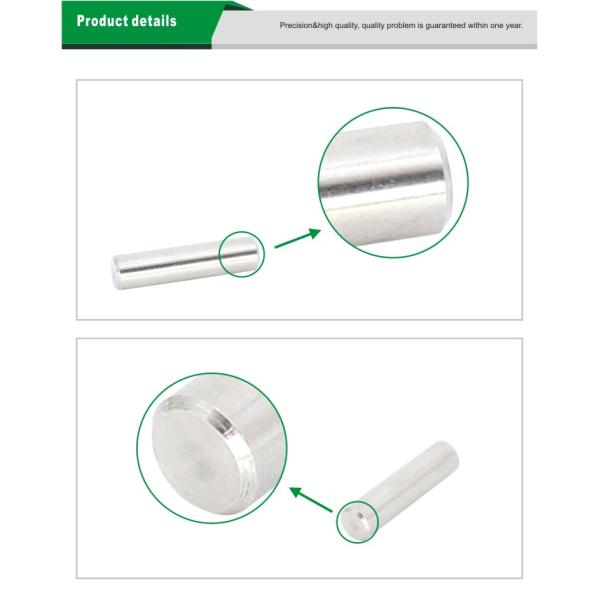

| Categories | Cylindrical Dowel Pin |
|---|---|
| Brand Name: | JESENTECH |
| Model Number: | Customization |
| Certification: | ISO9001:2015 ; IATF16949:2016 |
| Place of Origin: | Shenzhen, China (Mainland) |
| MOQ: | 1 Piece |
| Price: | $0.1-$9.9 |
| Payment Terms: | T/T, L/C,Paypal, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 7500,00 Piece |
| Delivery Time: | 3-10 Working days |
| Packaging Details: | General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet) |
| Material: | Stainless steel,Carbon Steel, Alloy Steel, Aluminum Alloy etc. |
| Surface Treatment: | Zinc/Nickle/Chrome Plated; |
| Size: | Size Customizable |
| Certificate: | ISO9001:2015; IATF16949:2016 |
| Company Info. |
| JESENTECH GROUP CORPORATION |
| View Contact Details |
| Product List |
| Type | Material | Hardness | |
| h7 | g6 | ||
| - | AIGJR | SUJ2 | 50~55HRC |
| AIHCR | AIGCR | SUS440C | 53HRC~ |
| AIHS | AIGS | SUS303 | / |
| Model | D Tolerance Selection | D | L (Designated unit)1mm | u1 | ||||
| h7 | ||||||||
| 0 -0.01 | 1 | 5,6,8,10 | 0.4 | |||||
| 1.5 | 5,6,8,10 | 0.6 | ||||||
| (h7) | 2 | 5,6,8,10,12,15,20 | 1 | |||||
| AIHCR | 2.5 | 6,8,10,12,15,20,25,30 | ||||||
| 3 | 6,8,10,12,15,20,25,30,35,40 | |||||||
| 0 -0.012 | 4 | 8,10,12,15,20,25,30,35,40,45,50 | 1.5 | |||||
| 5 | 8,10,12,15,20,25,30,35,40,45,50 | |||||||
| 6 | 8,10,12,15,20,25,30,35,40,45,50,55,60 | 2 | ||||||
| 0 -0.015 | 8 | 10,15,20,25,30,35,40,50,60 | ||||||
| 10 | 15,20,25,30,35,40,50,60 | 2.5 | ||||||
| Model | D Tolerance Selection | D | L (Designated unit)1mm | u1 | ||||
| h7 | ||||||||
| 0 -0.01 | 1 | 5,6,8,10 | 0.4 | |||||
| 1.5 | 5,6,8,10 | 0.6 | ||||||
| (h7) | 2 | 5,6,8,10,12,15,20 | 1 | |||||
| AIHS | 2.5 | 6,8,10,12,15 | ||||||
| 3 | 6,8,10,12,15,20 | |||||||
| 0 -0.012 | 4 | 8,10,12,15,20 | 1.5 | |||||
| 5 | 8,10,12,15,20 | |||||||
| 6 | 10,12,15,20 | 2 | ||||||
| 0 -0.015 | 8 | 15,20 | ||||||
| Model | D Tolerance Selection | D | L (Designated unit)1mm | u1 | ||||
| g6 | ||||||||
| -0.002 -0.008 | 2 | 6,8,10,12,15 | 1 | |||||
| (g6) | 3 | 6,8,10,12,15,20 | ||||||
| AIGJR | -0.004 -0.012 | 4 | 8,10,12,15,20 | 1.5 | ||||
| AIGCR | 5 | 8,10,12,15,20 | ||||||
| AIGS | 6 | 10,12,15,20 | ||||||
| -0.005 -0.014 | 8 | 15,20 | 2 | |||||
|
