CNC Turning Linear Motion Shaft 3D Printer Use With Good Synchronization Performance

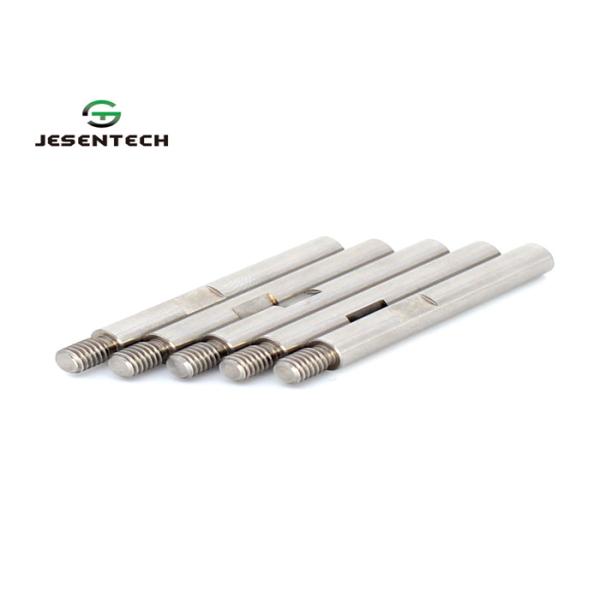

Good Synchronization Performance Linear Motion Shaft by cnc turning for 3D printer

JESENTECH

is a fastener manufacturer that produces and processes non-standard shaped shafts. The cantilever pins produced by our company are mainly used in industrial automation equipment;The cantilever pins produced by our company are produced according to the drawings or samples according to the needs of customers;Really realize the material on-demand customization, product shape design is customized according to customer needs, surface treatment is customized according to customer needs;Customers only need to provide professional tolerance design drawings or samples, we can precisely process the products according to all the customer's dimensional tolerances and precision.

The precision classification of the guide shaft:
The guide axes are mainly divided into two categories according to their accuracy: ordinary level and precision level:
The difference between the normal grade and the precision grade is the difference in the perpendicularity of the thread and the end face and the reference plane; the processing equipment and the measuring equipment are different.

Verticality: is the position tolerance, which is indicated by a symbol.

Meaning: The percentage of tolerance that is produced when the theoretical correct angle is 90 degrees from the reference plane is called the perpendicularity tolerance. The actual shape of the part's surface is the variable allowed for its ideal position.

One end of the thread. One end internal thread with wrench grooves
TypeMaterialHardnessSurface Treatment
Wrench groove type
PWPCRSUS440C
SUS440C high-frequency quenching 53HRC~~		/
PWPCRGSUS440Chard chrome plating
Coating hardness HV750~
Coating thickness Above 3μm

TypeD(g6)L Designated unit 1mm
Wrench groove typeLFB
PWPCR
PWPCRG		6-0.004
-0.012		25~5982≤F≤Px5(When P≤6)
B≤F-2
(When P=8 Or 10)
B≤F-3
(When P≥12)
B≤F-5
(Without thread)
B=0
B≥Thread pitch x3
8-0.005
-0.014		25~798
10
12-0.006
-0.017		25~998
13
15
1625~1198
20-0.007
-0.020

M(Coarse thread)N(Coarse thread)Wrench slot sizeRC(Y)
Max.
BSWe1
3,4,5,63

BS=Designated unit 1mm
BS+e1≤L
BS≥0

580.30.5600
3,4,5,6,83,4,57800
4,5,6,8,103,4,5,68800
5,6,8,10,124,5,6,810101000
5,6,8,10,124,5,6,8111000
5,6,8,10,124,5,6,8,10131000
5,6,8,10,12,164,5,6,8,10141.01200
6,8,10,12,16,204,5,6,8,10,12171200

The purpose of the guide shaft is classified. The guide shaft can be divided into a linear guide shaft for linear motion use, a rotary shaft for rotary use, and a bar for use as a support depending on the application.
The shaft used for linear motion is shown in the following figure. It is often used together with linear bearings, guide shaft bearings, and oil-free bushings. The linear guide shaft and the linear bearing are used to form a linear motion mechanism. When used in conjunction with a linear bearing, the heat treatment guide shaft with g6, h8, and h5 tolerances can be used. An unheated guide shaft with f8 tolerance can be used with oil-free bushings. 2. The shaft used for rotating purposes is shown below, mainly with bearings. Suitable for timing pulleys, couplings, etc.

What is a guide shaft?

In the process of linear motion, its main function is to guide.

1. Precision classification of guide shaft

According to its precision, the guide shaft can be divided into two categories: ordinary and precision:

The difference between ordinary and precision grades is the difference between the verticality of the thread and the end face and the datum;The processing equipment and measuring equipment are different.

Perpendicularity: is the position tolerance, represented by the symbol perpendicular.

Definition: the percentage of tolerance that occurs when the theoretical correct Angle is 90 degrees from the datum level, is called the perpendicularity tolerance.The actual shape of the part surface is the variable allowed for its ideal position.
