Stainless Steel Trunnion Ball Valve , Full Port Ball Valve Fire Safe Design

Forging trunnion ball valve of 2"-56" CL150-2500 CS and SS ball valve

DESIGN & MANUFACTURING STANDARDS
Basic Design	API 6D
Wall Thickness	API 6D
Face-to-Face Dimension	API 6D
Flange End Dimension	ANSI/ASME B16.5 (1” to 24”) ANSI/ASME B16.47 (26” & up)
Butt-Weld End Dimension	ANSI/ASME B16.25
Inspection & Testing	API 6D
Fire Safe Design	API 607/BS 6755

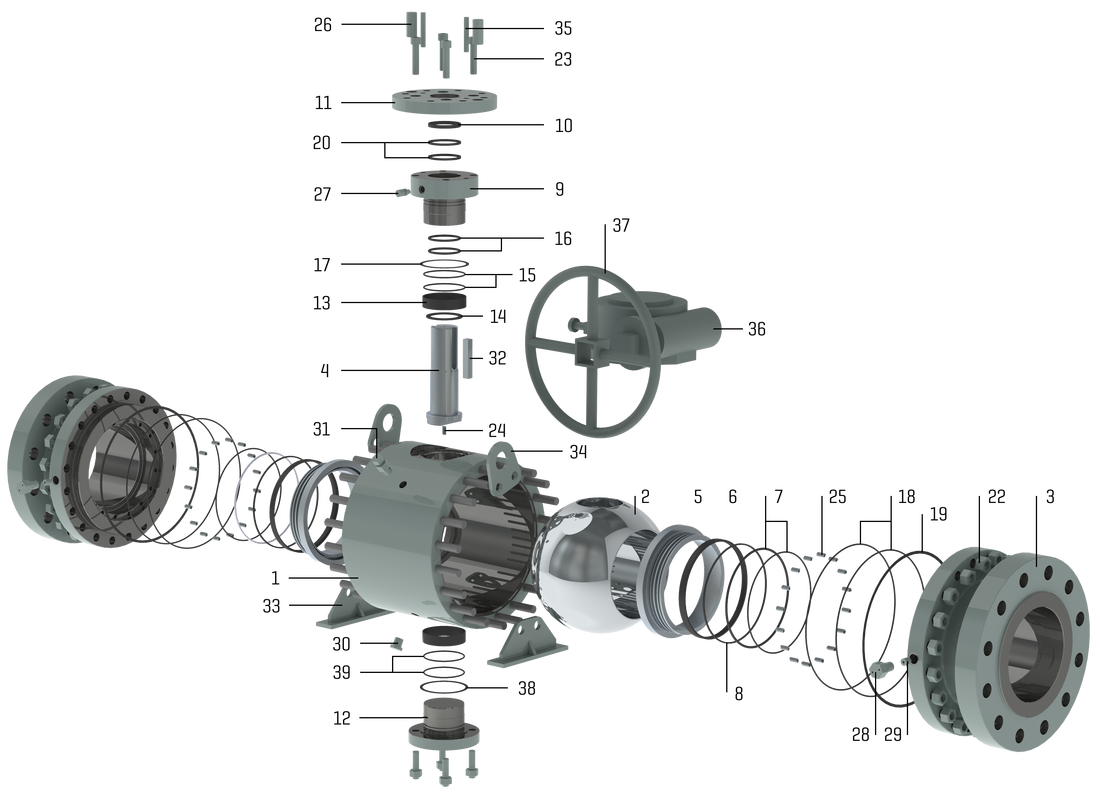

Sameple trunnion design 3-Piece Trunnion Ball Valves - Full & Reduced Port Expanded View (See "Bill of Materials" below)

Bill of Materials

NO.	NAME OF PART	MATERIALS
1	Body	A350 LF2	A182 F316
2	Ball	A350 LF2+ENP	A182, F316, A351, CF8M, 410 SS
3	Adapter	A350 LF2	A182, F316, A351, CF8M
4	Stem	A350 LF2+ENP	316 SS, 17-4 PHSS, 410 SS
5	Seat Ring	A350 LF2+ENP	316 SS, 410 SS
6	Seat Insert	Devlon, Nylon, PEEK, RTFE
7	Seat O-ring (2)	Low Temp HNBR /Viton AED
8	Seat Seal	Graphite
9	Gland	A350 LF2	316 SS, 410 SS
10	Gland Ring	A350 LF2	316 SS, 410 SS
11	Mounting Plate	A350 LF2	316 SS, 410 SS
12	Trunnion	A350 LF2	316 SS, 410 SS
13	Trunnion Bearing (2)	PTFE, Carbon Steel	PTFE, 316 SS
14	Thrust Washer	PTFE, Carbon Steel	PTFE, 316 SS
15	Gland O-ring (2)	Low Temp HNBR /Viton AED
16	Stem O-ring (2)	Low Temp HNBR /Viton AED
17	Gland Gasket	Graphite
18	Adapter O-ring (2)	Low Temp HNBR /Viton AED
19	Adapter Gasket	Graphite
20	Mounting Plate Gasket	Graphoil
21	Stud Bolt*	A320 L7M	A193 B8
22	Hex Nut*	A194 7M	A194 8
23	SHCS	A320 L7M	A193 B8
24	Anti-Static Spring	Inconel X-750
25	Seat Spring	Inconel X-750
26	Dowel Pin	Carbon Steel	Stainless Steel
27	Grease Fitting	Carbon Steel	316 SS
28	Grease Fitting, BGH	Carbon Steel	316 SS
29	Ball Check	Stainless Steel
30	NPT Plug	Carbon Steel	316 SS
31	Vent Fitting	Carbon Steel	316 SS
32	Stem Key	Carbon Steel	Stainless Steel
33	Foot Plate*	Carbon Steel	Stainless Steel
34	Lift Plate*	Carbon Steel	Stainless Steel
35	Trunnion Dowel Pin	Carbon Steel	Stainless Steel
36	Gear Operator	Ductile Iron, Carbon Steel Worm Gear
37	Handwheel	Carbon Steel, Ductile Iron
Note: Materials also available in F321, F347, F51, F53, monel, inconel, incolloy and hastelloy. Metal-to-metal seated ball valve designs are available upon request. ​ Additional materials available upon request. *= Used only with bolted body construction.

Sample bearing plate design 3-Piece Trunnion Ball Valves - Full & Reduced Port Expanded View (See "Bill of Materials" below)

Bill of Materials

NO.	NAME OF PART	MATERIALS
1	Body	A350 LF2	A182 F316
2	Ball	A350 LF2+ENP	A182, F316, A351, CF8M, 410 SS
3	Adapter	A350 LF2	A182, F316, A351, CF8M
4	Stem	A350 LF2+ENP	316 SS, 17-4 PHSS, 410 SS
5	Seat Ring	A350 LF2+ENP	316 SS, 410 SS
6	Seat Insert	Devlon, Nylon, PEEK, RTFE
7	Seat O-ring (2)	Low Temp HNBR /Viton AED
8	Seat Seal	Graphite
9	Gland	A350 LF2	316 SS, 410 SS
10	Gland Ring	A350 LF2	316 SS, 410 SS
11	Mounting Plate	A350 LF2	316 SS, 410 SS
12	Trunnion	A350 LF2	316 SS, 410 SS
13	Trunnion Bearing (2)	PTFE, Carbon Steel	PTFE, 316 SS
14	Thrust Washer	PTFE, Carbon Steel	PTFE, 316 SS
15	Gland O-ring (2)	Low Temp HNBR /Viton AED
16	Stem O-ring (2)	Low Temp HNBR /Viton AED
17	Gland Gasket	Graphite
18	Adapter O-ring (2)	Low Temp HNBR /Viton AED
19	Adapter Gasket	Graphite
20	Mounting Plate Gasket	Graphoil
21	Stud Bolt*	A320 L7M	A193 B8
22	Hex Nut*	A194 7M	A194 8
23	SHCS	A320 L7M	A193 B8
24	Anti-Static Spring	Inconel X-750
25	Seat Spring	Inconel X-750
26	Dowel Pin	Carbon Steel	Stainless Steel
27	Grease Fitting	Carbon Steel	316 SS
28	Grease Fitting, BGH	Carbon Steel	316 SS
29	Ball Check	Stainless Steel
30	NPT Plug	Carbon Steel	316 SS
31	Vent Fitting	Carbon Steel	316 SS
32	Stem Key	Carbon Steel	Stainless Steel
33	Foot Plate*	Carbon Steel	Stainless Steel
34	Lift Plate*	Carbon Steel	Stainless Steel
35	Body Dowel Pin	Carbon Steel	Stainless Steel
36	Gear Operator	Ductile Iron, Carbon Steel Worm Gear
37	Handwheel	Carbon Steel, Ductile Iron
38	Trunnion Gasket	Graphite
39	Trunnion O-ring (2)	Low Temp HNBR/Viton AED
Note: Materials also available in F321, F347, F51, F53, monel, inconel, incolloy and hastelloy. Metal-to-metal seated ball valve designs are available upon request. ​ Additional materials available upon request. *= Used only with bolted body construction.
