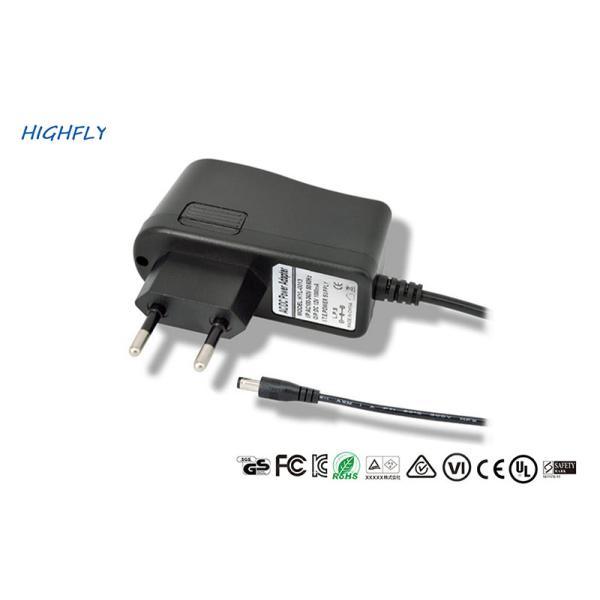

| Brand Name: | HaiFyer |
| Model Number: | GS-120015EU |
| Certification: | CE FCC ROHS |
| Place of Origin: | China |
| MOQ: | 10 |
| Price: | 1.98usd/PC |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300000PCS per month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Gift Box |
| Input: | 100-240V AC |
| Output: | 12V 1.5A(100-1500mA available) |
| Protection: | Over volt,over load,short circuit |
| DC Jack: | Barrel Type 5.5*2.1/5.5*2.5/3.5*1.35mm |
| MTBF: | 100000hours |
| Color: | White/Black |
| Input: Input voltage: 90-264VAC Frequency: 47-63 Hz |
| Input current: 0.18A max. Inrush current max: 30A@230VAC Leakage current: <50uA Output: Output voltage: See below table Output current: See below table Load regulation: +/-3~5% Line regulation: +/-0.5% Ripple: 50-180mVp-p Hold up time: 12ms at full load Efficiency: 68-82% Protection: Short circuit and over voltage protection Temperature range: 0ºC…+50ºC, derating applies depending on model Plug and cable: UL2468 cable 1220mm 22AWG for 5-12V and 1830mm 24AWG for 15-24V. DC plug 2.1x5.5x11mm (centre +) Other DC plugs upon request Size: 32x66x42.5mm Weight adapter: 100g Safety and EMC: CE/TUV/CB |
| Input |
| Input voltage: 90-264VAC Frequency: 47-63 Hz |
| Input current: 0.18A max. |
| Inrush current max: 30A@230VAC |
| Leakage current: <50uA |
| Output |
| Output voltage: 1-12V |
| Output current: 100-2000MA 18W Max. |
| Load regulation: +/-3~5% |
| Line regulation: +/-0.5% |
| Ripple: 50-180mVp-p |
| Hold up time: 12ms at full load |
| Efficiency: 68-82% |
| Protection: Short circuit,over load and over voltage protection |
| Temperature range: 0ºC…+50ºC |

Application:
• LED strips/ mobile phone
• CCTV cameras
• ADSL AP/ MP4/ MP3 player
• Wireless LAN stations LCD monitors
• Booster pumps
• Communication terminals
• Various portable device of machines
Safety Specifications:
• Universal Input 100~240VAC 50/60Hz
• Over voltage protection: 120%min
• Over current protection: 120%min
• Over protection
• Short-circuit protection: automatic recovery
• Load regulation: ±5%
• Green Circuit Design
• High Efficiency
Packaging Details:
• white box
• PE bag with over-lap cardboard
• Carton Size: 490*325*330mm
• Shipping Mark: UP TO YOU
Shipping information:
• Samples will be sent via DHL, UPS, FedEx, TNT, EMS, etc., generally
it takes 2-5 working days to arrive in most countries.
• Bulk goods will be sent by sea or air.
• We offer ExW, FOB, CIF, C&F, etc.
About Highfly:
As a leading manufacturer of AC adapter and transformer in
Shenzhen, China, Highfly has been specialized in power supply
products for over 14 years.
Focusing on AC adapter marketing and manufacturing, Highfly has
scientific, intact and efficient quality management system, which
extends from product designing, raw material control, on-spot
production management to after-sale services with constant, stable
and reliable quality assurance.
ISO9001:2008 system is fully implemented in our management. Our
products have passed most of safety approvals in the world,
including UL, cUL, FCC, PSE, GS, CE, SAA, CCC, C-tick, CB, etc.
Highfly's Workshop:
• Production Capacity: 500,000 PCS/MONTH
• SMT: 3 Sets
• Board Mounting Production Line: 4 Lines
• Product Assembly Line: 8 Lines
• Aging Test Stand: 9 Sets (24-hour working)
|   |
