| Categories | Rexroth Hydraulic Valves |
|---|---|
| Brand Name: | Rexroth |
| Model Number: | Rexroth 4WE6L6X/EG24N9K4/V 4WE6LB6X/EG24N9K4 4WE6M6X/EG24N9K4 4WE6M6X/EW230N9K4 4WE6Q6X/EG220N9K4 4WE6R6X/EG24N9K4 4WE6U6X/EW230N9K4 4WE6Y6X/EG24N9K4/B08 |
| CertifiSAARion: | ISO9001 |
| Place of Origin: | Germany |
| MOQ: | 1 |
| Price: | On request |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| Delivery Time: | 7-10days |
| Packaging Details: | Standard paper box |
| model: | 4WE6UA6X/EW110N9K4 |
| certifiSAARion: | ISO9001 |
| origin: | Germany |
| Company Info. |
| Saar HK Electronic Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

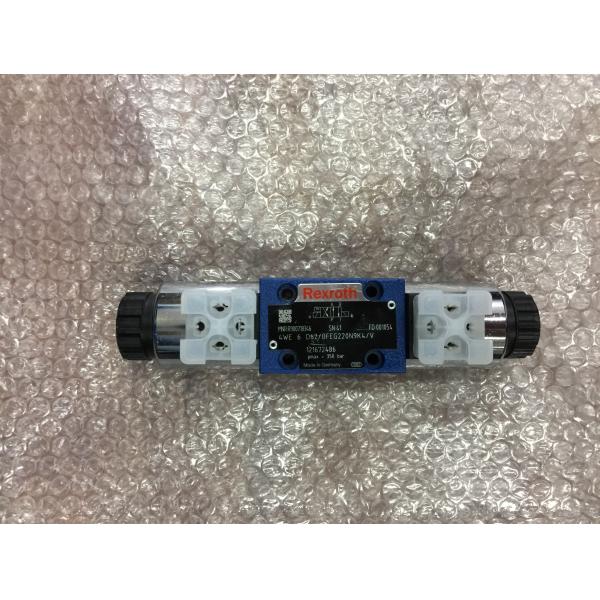

Rexroth 4WE6 Series Solenoid Directional Valves
Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min
Features
4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Wet-pin DC or AC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual or central connection
Optional auxiliary operating device
Spool position monitoring, optional
Type Code Ordering:
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||
| WE | 6 | 6X | / | E | / | * |
| 01 | 3 main ports | 3 | ||||
| 4 main ports | 4 | |||||
| 02 | Directional valve | WE | ||||
| 03 | Size 6 | 6 | ||||
| 04 | Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols | |||||
| 05 | Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) | 6X | ||||
| 06 | With spring return | no code | ||||
| Without spring return | O | |||||
| Without spring return with detent | OF | |||||
| 07 | High-power solenoid, wet-pin, with detachable coil | E | ||||
| 08 | Direct voltage 24 V | G24 | ||||
| Alternating voltage 230 V, 50/60 Hz | W230 | |||||
| AC voltage 110 V or 120 V, 50/60 Hz | W110 W + voltage | |||||
| Direct voltage 205 V | G205 | |||||
| DC solenoid with rectifier for AC voltage (not frequency-related; only available with plug-in connection with cover, see central connection dimensions) | W110R | |||||
| Nominal voltage 96 V at DC solenoid in case of operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | |||||
| Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G205 | |||||
| Connection to AC voltage mains via control with rectifier 1) | ||||||
| 09 | Without manual override | no code | ||||
| With concealed manual override (standard) | N9 2) | |||||
| With manual override | N 2) | |||||
| With lockable manual override "mushroom button" (small) | N4 2) | |||||
| With lockable manual override "mushroom button" (large) | N5 2); 3) | |||||
| With manual override "mushroom button" (large), not lockable | N6 2) | |||||
| With lockable manual override "nut" | N7 2) | |||||
| Electrical connection | ||||||
| 10 | Individual connection | |||||
| Without mating connector, with connector DIN EN 175301-803 | K4 4) | |||||
| Without mating connector, with connector AMP Junior-Timer | C44) | |||||
| Without mating connector, with connector DT 04 - 2PA (Deutsch plug) | K404); 7) | |||||
| Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED | K72L5) | |||||
| Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED (no connection pin 1 to pin 2) | K73L5) | |||||
| Central connection | ||||||
| Cable entry at the cover, with indiSAARor light | DL | |||||
| Central plug-in connection at the cover, with indiSAARor light (without mating connector); connector according to DIN EN 175201-804 | DK6L6) | |||||
| With M12x1 plug-in connection, high-performance version: 4-pole | DK24L 5) | |||||
| With M12x1 plug-in connection, high-performance version: 4-pole, integrated interference protection circuit, operating display with LED | DK35L 5) | |||||
| Spool position monitoring | ||||||
| 11 | Without position switch | no code | ||||
| Inductive position switch type QM | ||||||
| Monitored spool position “a” | QMAG24 | |||||
| Monitored spool position “b” | QMBG24 | |||||
| Monitored rest position | QM0G24 | |||||
| Inductive position switch type QR | ||||||
| Monitored rest position | QR0G24S | |||||
| Monitored spool position "a" and "b" | QRABG24E | |||||
| Inductive position switch type QL | ||||||
| Monitored spool position “a” | QLAG24 | |||||
| Monitored spool position “b” | QLBG24 | |||||
| Inductive proximity sensor type QS | ||||||
| Monitored spool position “a” | QSAG24W | |||||
| Monitored spool position “b” | QSBG24W | |||||
| Monitored spool position "0" | QS0G24W | |||||
| Monitored spool position "0" and "a" | QS0AG24W | |||||
| Monitored spool position "0" and "b" | QS0BG24W | |||||
| Monitored spool position "a" and "b" | QSABG24W | |||||
| For further details, see data sheet 24830 | ||||||
| 12 | Without throttle insert | no code | ||||
| With throttle insert | ||||||
| Connection | Throttle Ø in mm | |||||
| 0,8 mm | 1,0 mm | 1,2 mm | ||||
| P | = B08 | = B10 | = B12 | |||
| A | = H08 | = H10 | = H12 | |||
| B | = R08 | = R10 | = R12 | |||
| A and B | = N08 | = N10 | = N12 | |||
| T | = X08 | = X10 | = X12 | |||
| Use with flows which exceed the performance limit of the valve (see Product description) | ||||||
| Clamping length | ||||||
| 13 | 42 mm (standard) | no code | ||||
| 22 mm | Z | |||||
| Seal material | ||||||
| 14 | NBR seals | no code | ||||
| FKM seals | V | |||||
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||||||
| 15 | Without loSAARing hole | no code | ||||
| With loSAARing hole | /60 8) | |||||
| With loSAARing hole and locking pin ISO 8752-3x8-St | /62 | |||||
| 16 | Further details in the plain text | * | ||||
| R901045711 | 4WE6L6X/EG110N9K4/V |
| R900246496 | 4WE6L6X/EG125N9K4 |
| R901032222 | 4WE6L6X/EG125N9K4/V |
| R901065629 | 4WE6L6X/EG12N4K4 |
| R900929514 | 4WE6L6X/EG12N9K4 |
| R900742565 | 4WE6L6X/EG220N9K4/V |
| R900712362 | 4WE6L6X/EG240N9K4/V |
| R900978893 | 4WE6L6X/EG24K4QR0G24S |
| R901078116 | 4WE6L6X/EG24N4K4 |
| R900941202 | 4WE6L6X/EG24N9DL |
| R900901751 | 4WE6L6X/EG24N9K4 |
| R900903463 | 4WE6L6X/EG24N9K4/V |
| R900753705 | 4WE6L6X/EG24N9K4SO407 |
| R901109911 | 4WE6L6X/EG28N9K4 |
| R900619492 | 4WE6L6X/EG48N4K4 |
| R900906462 | 4WE6L6X/EW110N9K4 |
| R900915458 | 4WE6L6X/EW230N9K4 |
| R900923846 | 4WE6L6X/EW230N9K4/V |
| R900937123 | 4WE6L6X/EW24N9K4 |
| R900947536 | 4WE6LA6X/EG110N9K4 |
| R900944155 | 4WE6LA6X/EG125N9K4 |
| R900616981 | 4WE6LA6X/EG125N9K4/V |
| R900927268 | 4WE6LA6X/EG220N9K4 |
| R900944002 | 4WE6LA6X/EG220N9K4/V |
| R901121746 | 4WE6LA6X/EG24K33LQM0G24 |
| R900935300 | 4WE6LA6X/EG24N9K4 |
| R900911365 | 4WE6LB6X/EG24N9K4 |
| R901016464 | 4WE6LB6X/EG24N9K4 |
| R900763384 | 4WE6LB6X/EG24N9K4=AN |
| R901084535 | 4WE6LB6X/EG24N9XNZ4 |
| R900934318 | 4WE6LB6X/EW230N9K4 |
| R901030656 | 4WE6LB6X/OFEG24N9K33L |
| R900577780 | 4WE6LB6X/OFEG24N9K4 |
| R901014820 | 4WE6M6X/EG110N9K4 |
| R900927667 | 4WE6M6X/EG12N9K4 |
| R900925798 | 4WE6M6X/EG205N9K4 |
| R900942471 | 4WE6M6X/EG220N9K4/V |
| R901039967 | 4WE6M6X/EG240N9K4 |
| R900905550 | 4WE6M6X/EG24K4 |
| R900247814 | 4WE6M6X/EG24K4QR0G24S |
| R900953514 | 4WE6M6X/EG24N4K4 |
| R901020556 | 4WE6M6X/EG24N9DK35L |
| R900976655 | 4WE6M6X/EG24N9DKL |
| R900906763 | 4WE6M6X/EG24N9DL |
| R901133150 | 4WE6M6X/EG24N9K33L/62SO407=AN |
| R900704787 | 4WE6M6X/EG24N9K33LSO407 |
| R900245632 | 4WE6M6X/EG24N9K4 |
| R900577475 | 4WE6M6X/EG24N9K4 |
| R900729016 | 4WE6M6X/EG24N9K4 |
| R900927226 | 4WE6M6X/EG24N9K4/B08 |
| R900975255 | 4WE6M6X/EG24N9K4/B08SO525 |
| R900944724 | 4WE6M6X/EG24N9K4/B10 |
| R900948738 | 4WE6M6X/EG24N9K4/B12 |
| R900906825 | 4WE6M6X/EG24N9K4/V |
| R900736481 | 4WE6M6X/EG24N9K4/VSO582 |
| R900758070 | 4WE6M6X/EG24N9K4=AN |
| R901139569 | 4WE6M6X/EG24N9K4KSO21 |
| R900746179 | 4WE6M6X/EG24N9K4QS0G24S |
| R900933351 | 4WE6M6X/EG24NK4 |
| R901083820 | 4WE6M6X/EG24NXEZ2 |
| R901124096 | 4WE6M6X/EG28N9K4/V |
| R900928968 | 4WE6M6X/EG48N9K4 |
| R900927180 | 4WE6M6X/EG60N9K4 |
| R900759142 | 4WE6M6X/EG96N4K4 |
| R900917655 | 4WE6M6X/EG96N9K4 |
| R901040591 | 4WE6M6X/EW110N9DAL |
| R900904559 | 4WE6M6X/EW110N9K4 |
| R900922369 | 4WE6M6X/EW110N9K4/B08 |
| R900923360 | 4WE6M6X/EW110N9K4/V |
| R901083019 | 4WE6M6X/EW110N9K4QSAG24E |
| R901073464 | 4WE6M6X/EW110N9K4QSBG24E |
| R901026734 | 4WE6M6X/EW115N9K4 |
| R900922375 | 4WE6M6X/EW230N9K4 |
| R900973127 | 4WE6M6X/EW230N9K4/V |
| R900940015 | 4WE6M6X/EW24N9K4 |
| R900972038 | 4WE6M6X/SG24N9K4/V |
| R901052267 | 4WE6MA6X/EG12NC4 |
| R900743191 | 4WE6MA6X/EG24K4SO293 |
| R900546939 | 4WE6MA6X/EG24N9K4 |
| R900968754 | 4WE6MA6X/EG24N9K4/V |
| R900707270 | 4WE6MA6X/EG24N9K4K |
| R901011802 | 4WE6MA6X/EG24N9K4K/V |
| R901075538 | 4WE6MA6X/EG24N9K4QM0G24 |
| R901047112 | 4WE6MA6X/EG24N9K4SO407 |
| R901172213 | 4WE6MA6X/EG24NDL/B10 |
| R900959972 | 4WE6MA6X/EW110N9K4 |
| R901031621 | 4WE6MA6X/EW110N9K4QMAG24 |
| R900943786 | 4WE6MA6X/EW230N9K4 |
| R901119624 | 4WE6MA6X/OFEG220N9K4 |
| R900962149 | 4WE6MA6X/OFEG24N9K4 |
| R901074923 | 4WE6MA6X/OFEW110N9K4 |
| R900944280 | 4WE6MB6X/EG12N9K4 |
| R900941208 | 4WE6MB6X/EG240N9K4 |
| R900577367 | 4WE6MB6X/EG24N9K4 |
| R900758879 | 4WE6MB6X/EG24N9K4/V |
| R900940462 | 4WE6MB6X/EW230N9K4 |
| R900958461 | 4WE6MB6X/OFEG24N9K4 |
| R900246789 | 4WE6P36X/EG24K4 |
| R900928712 | 4WE6P3A6X/EG24K4QM0G24 |
| R901104062 | 4WE6P6X/EG24K4QR0G24S |
| R900926629 | 4WE6P6X/EG24N9K4 |
| R900926641 | 4WE6P6X/EW230N9K4 |
| R900966506 | 4WE6P86X/EG24N9K4 |
| R900942675 | 4WE6PA6X/EG24N9K4 |
| R900755320 | 4WE6PA6X/EW110N9K4 |
| R900925545 | 4WE6PB6X/EG24N9K4 |
| R900921822 | 4WE6PB6X/EW230N9K4 |
| R900952804 | 4WE6Q216X/EG24N9K4/A12 |
| R900765510 | 4WE6Q236X/EG12N2K4K |
| R901032490 | 4WE6Q236X/EG24N2K4 |
| R900920562 | 4WE6Q236X/EG24N9K4 |
| R900765509 | 4WE6Q236X/EG26N2K4K |
| R900923261 | 4WE6Q236X/EW110N9K4 |
| R900548400 | 4WE6Q256X/EG24N9K4/A12 |
| R900919007 | 4WE6Q66X/EG24N9K4 |
| R900744614 | 4WE6Q6X/EG205N4K4 |
| R900782185 | 4WE6Q6X/EG220N9K4 |
| R900918188 | 4WE6Q6X/EG24K4 |
| R900575946 | 4WE6Q6X/EG24N9DK24L |
| R900741403 | 4WE6Q6X/EG24N9DK24L=AN |
| R901111585 | 4WE6Q6X/EG24N9DK24LSO482 |
| R900779788 | 4WE6Q6X/EG24N9DK35L/VSO407=AN |
| R900705208 | 4WE6Q6X/EG24N9K33L |
| R900704451 | 4WE6Q6X/EG24N9K33LSO407 |
| R900245633 | 4WE6Q6X/EG24N9K4 |
| R900561292 | 4WE6Q6X/EG24N9K4 |
| R900701223 | 4WE6Q6X/EG24N9K4 |
| R900953686 | 4WE6Q6X/EG24N9K4/A12 |
| R900766361 | 4WE6Q6X/EG24N9K4/B08 |
| R900906365 | 4WE6Q6X/EG24N9K4/B10 |
| R900915860 | 4WE6Q6X/EG24N9K4/B12 |
| R900921807 | 4WE6Q6X/EG24N9K4/B25 |
| R900914070 | 4WE6Q6X/EG24N9K4/V |
| R900912989 | 4WE6Q6X/EG24N9K4/VSO407 |
| R900782492 | 4WE6Q6X/EG24N9K4=AN |
| R901002641 | 4WE6Q6X/EG24N9K45L |
| R901032332 | 4WE6Q6X/EG24N9K45LSO407 |
| R900935000 | 4WE6Q6X/EG24N9K4SO407 |
| R900737202 | 4WE6Q6X/EG24N9K4SO9 |
| R900967152 | 4WE6Q6X/EG24NK4 |
| R901126383 | 4WE6Q6X/EG24NXEZ2 |
| R900917345 | 4WE6Q6X/EG26N2K4 |
| R900964997 | 4WE6Q6X/EG96N9K4 |
| R900575365 | 4WE6Q6X/EW110N9K4 |
| R900925546 | 4WE6Q6X/EW230N9K4 |
| R900937061 | 4WE6Q6X/EW230N9K4/B10 |
| R901025727 | 4WE6Q6X/EW24N9K4 |
| R900906009 | 4WE6QA6X/EG24N9K4 |
| R900906012 | 4WE6QB6X/EG24N9K4 |
| R900906360 | 4WE6QB6X/EG24N9K4/B10 |
| R901131050 | 4WE6QB6X/EW110N9K4 |
| R900927841 | 4WE6QB6X/EW230N9K4 |
| R900931250 | 4WE6R106X/EG24N9K4 |
| R900756354 | 4WE6R106X/EG24N9K4K |
| R900976469 | 4WE6R106X/EW110NK4 |
| R901077901 | 4WE6R106X/EW230N9K4 |
| R900929730 | 4WE6R66X/EG24N9K4 |
| R900935368 | 4WE6R6X/EG12N9K4 |
| R901000175 | 4WE6R6X/EG12N9K4/T06 |
| R900969195 | 4WE6R6X/EG220N9K4 |
| R900962507 | 4WE6R6X/EG24K4 |
| R901005553 | 4WE6R6X/EG24N4K4 |
| R901096764 | 4WE6R6X/EG24N9DKL |
| R900546824 | 4WE6R6X/EG24N9DL |
| R900571012 | 4WE6R6X/EG24N9K4 |
| R901083023 | 4WE6R6X/EG24N9K4 |
| R901095675 | 4WE6R6X/EG24N9K4/B12 |
| R900730380 | 4WE6R6X/EG24N9K4/B25 |
| R900572784 | 4WE6R6X/EG24N9K4/T06 |
| R900935802 | 4WE6R6X/EG24N9K4/V |
| R901070020 | 4WE6R6X/EG24N9K4=AN |
| R900707269 | 4WE6R6X/EG24N9K4K |
| R901067651 | 4WE6R6X/EG24N9K4SO407 |
| R900920564 | 4WE6R6X/EG24NK4 |
| R900970429 | 4WE6R6X/EG42N9K4 |
| R900619740 | 4WE6R6X/EG96N9K4 |
| R900906663 | 4WE6R6X/EW110N9K4 |
| R900926189 | 4WE6R6X/EW110N9K4/V |
| R900905041 | 4WE6R6X/EW230N9K4 |
| R900740087 | 4WE6R6X/EW48N9K4 |
| R900916072 | 4WE6RB6X/EG12N9K4 |
| R901066925 | 4WE6RB6X/EG205N9K4 |
| R901123295 | 4WE6RB6X/EG220N9K4/V |
| R900941098 | 4WE6RB6X/EG24K4 |
| R900904032 | 4WE6RB6X/EG24N9K4 |
| R901116367 | 4WE6RB6X/EG24N9K4/T06 |
| R900737943 | 4WE6RB6X/EG24N9K4/V |
| R900948553 | 4WE6RB6X/EG24N9K4QMBG24 |
| R901063189 | 4WE6RB6X/EG24N9K4SO407 |
| R900925608 | 4WE6RB6X/EG24NK4 |
| R901095062 | 4WE6RB6X/EG26N9K4 |
| R900946221 | 4WE6RB6X/EW230N9K4 |
| R900946530 | 4WE6RB6X/OFEG24N9K4 |
| R900773450 | 4WE6RB6X/OFEG24N9K4SO642 |
| R901116950 | 4WE6S36X/EG12NK4K |
| R900959843 | 4WE6S36X/EG24N9K4 |
| R901112754 | 4WE6S36X/EG24NK4K |
| R900936967 | 4WE6S36X/EW110N9K4 |
| R901093280 | 4WE6S36X/EW230N9K4 |
| R901075513 | 4WE6T26X/EG24N9DL1 |
| R900921142 | 4WE6T26X/EG24N9K4 |
| R900946222 | 4WE6T26X/EG24N9K4/V |
| R900925817 | 4WE6T6X/EG12N9K4 |
| R900619063 | 4WE6T6X/EG12N9K4/T06 |
| R900976626 | 4WE6T6X/EG12N9K4/V |
| R901087139 | 4WE6T6X/EG24K33LQR0G24S |
| R900973677 | 4WE6T6X/EG24K4QR0G24S |
| R900952417 | 4WE6T6X/EG24N4K4 |
| R900934414 | 4WE6T6X/EG24N9K4 |
| R901034070 | 4WE6T6X/EG24N9K4/V |
| R900743987 | 4WE6T6X/EG24NK4 |
| R901067465 | 4WE6T6X/EG24NXEZ2 |
| R900246255 | 4WE6T6X/EW110N9DL |
| R900908307 | 4WE6T6X/EW110N9K4 |
| R901085531 | 4WE6T6X/EW110N9K4/V |
| R900936249 | 4WE6T6X/EW230N9K4 |
| R901107812 | 4WE6T6X/EW230N9K4/B12 |
| R900966307 | 4WE6TA6X/EG24K4 |
| R900931562 | 4WE6TA6X/EG24N9K4 |
| R901062737 | 4WE6TA6X/EG96N9K4/V |
| R900955202 | 4WE6TB6X/EG24N9K4 |
| R900971816 | 4WE6U6X/EG205N9K4 |
| R901079100 | 4WE6U6X/EG205N9K4/T06 |
| R901097055 | 4WE6U6X/EG205N9K4/ZV |
| R900923280 | 4WE6U6X/EG24K4 |
| R900707701 | 4WE6U6X/EG24K4QR0G24S |
| R900572785 | 4WE6U6X/EG24N9K4 |
| R901013271 | 4WE6U6X/EG24N9K4/B12 |
| R900951215 | 4WE6U6X/EG24N9K4/T06 |
| R900927475 | 4WE6U6X/EG24N9K4/V |
| R901097053 | 4WE6U6X/EG24N9K4/ZV |
| R900934189 | 4WE6U6X/EG24NK4 |
| R901118426 | 4WE6U6X/EG24NXEZ2 |
| R900904473 | 4WE6U6X/EW110N9K4 |
| R900901749 | 4WE6U6X/EW230N9K4 |
| R900938087 | 4WE6U6X/EW230N9K4/T06 |
| R900939853 | 4WE6UA6X/EG12N9K4 |
| R900925860 | 4WE6UA6X/EG205N9K4 |
| R901128666 | 4WE6UA6X/EG205N9K4/V |
| R900945978 | 4WE6UA6X/EG24K4 |
| R900915893 | 4WE6UA6X/EG24K4QM0G24 |
| R901116754 | 4WE6UA6X/EG24N9K33L |
| R900578186 | 4WE6UA6X/EG24N9K4 |
| R900922212 | 4WE6UA6X/EG24N9K4/T06 |
| R900953409 | 4WE6UA6X/EG24N9K4/V |
| R901053736 | 4WE6UA6X/EG24NK4 |
| R900934919 | 4WE6UA6X/EG24NK4/X08 |
| R901032516 | 4WE6UA6X/EG24NXEZ2 |
| R900912013 | 4WE6UA6X/EW110N9K4 |
| R900927246 | 4WE6UA6X/EW230N9K4 |
| R900742723 | 4WE6UA6X/EW230N9K4/T06 |
| R900938773 | 4WE6UB6X/EG24N9K4 |
| R900933699 | 4WE6V6X/EG24N9K4 |
| R900923621 | 4WE6V6X/EW110N9K4 |
| R901047366 | 4WE6VA6X/EG220N9K/V |
| R900727939 | 4WE6VA6X/EG24N9K4 |
| R901000176 | 4WE6W6X/EG12N9K4 |
| R900761142 | 4WE6W6X/EG12N9K4/V |
| R900946290 | 4WE6W6X/EG24K4 |
| R901067004 | 4WE6W6X/EG24K4QR0G24S |
| R900773712 | 4WE6W6X/EG24N9K33L |
| R900568233 | 4WE6W6X/EG24N9K4 |
| R901136909 | 4WE6W6X/EG24N9K4/B08 |
| R900934933 | 4WE6W6X/EG24N9K4/B12 |
| R900908486 | 4WE6W6X/EG24N9K4/V |
| R901138644 | 4WE6W6X/EG24N9K4/Z |
| R901068629 | 4WE6W6X/EG24N9K4/ZV |
| R901077166 | 4WE6W6X/EG24N9K4=AN |
| R900909885 | 4WE6W6X/EG24N9K4-86 |
| R900948125 | 4WE6W6X/EG24N9K4SO407 |
| R901089465 | 4WE6W6X/EG24NK4 |
| R901129490 | 4WE6W6X/EG24NK4/V |
| R901106571 | 4WE6W6X/EG24NXEZ2SO329 |
| R900552533 | 4WE6W6X/EW110N9K4 |
| R900921466 | 4WE6W6X/EW230N9K4 |
| R900936439 | 4WE6W6X/EW24N9K4 |
| R900552338 | 4WE6WA6X/EG24N9K4 |
| R900905535 | 4WE6WA6X/EG24N9K4-86 |
| R900908893 | 4WE6WA6X/EG24NDL |
| R901023931 | 4WE6WA6X/EW110N9K4 |
| R901083168 | 4WE6Y6X/BG24NXDZ2/V |
| R900921502 | 4WE6Y6X/EG110N9K4 |
| R900973094 | 4WE6Y6X/EG110N9K4/V |
| R900951087 | 4WE6Y6X/EG125N9K4 |
| R900937488 | 4WE6Y6X/EG125N9K4/V |
| R901004476 | 4WE6Y6X/EG125N9K4QMBG24 |
| R900765506 | 4WE6Y6X/EG12N2K4K |
| R901066048 | 4WE6Y6X/EG12N4K4 |
| R900942273 | 4WE6Y6X/EG12N9K4 |
| R901008606 | 4WE6Y6X/EG12N9K4/V |
| R901068589 | 4WE6Y6X/EG12N9K4/ZV |
| R900762826 | 4WE6Y6X/EG180N9K4 |
| R901084707 | 4WE6Y6X/EG205N5K4 |
| R900908911 | 4WE6Y6X/EG205N9K4 |
| R901097051 | 4WE6Y6X/EG205N9K4/ZV |
| R900922335 | 4WE6Y6X/EG220N9K4 |
| R900739220 | 4WE6Y6X/EG220N9K4/V |
| R900976484 | 4WE6Y6X/EG240N9K4 |
| R901038984 | 4WE6Y6X/EG24K33LQMBG24 |
| R900554751 | 4WE6Y6X/EG24K4 |
| R900701040 | 4WE6Y6X/EG24K4/N05 |
| R900618604 | 4WE6Y6X/EG24K4/V |
| R900935973 | 4WE6Y6X/EG24N2K4 |
| R900929913 | 4WE6Y6X/EG24N4K4 |
| R901104521 | 4WE6Y6X/EG24N4K4/T06 |
| R901111539 | 4WE6Y6X/EG24N4K4/T06SO407 |
| R901083171 | 4WE6Y6X/EG24N4K4/V |
| R900703532 | 4WE6Y6X/EG24N5K4 |
| R901128987 | 4WE6Y6X/EG24N9C4 |
| R901087585 | 4WE6Y6X/EG24N9DK25L/V |
| R900553077 | 4WE6Y6X/EG24N9DL |
| R900772995 | 4WE6Y6X/EG24N9K33L |
| R901025238 | 4WE6Y6X/EG24N9K33L/B08 |
| R900976026 | 4WE6Y6X/EG24N9K33LSO407 |
| R900561276 | 4WE6Y6X/EG24N9K4 |
| R900729184 | 4WE6Y6X/EG24N9K4 |
| R900909178 | 4WE6Y6X/EG24N9K4/B08 |
| R900742175 | 4WE6Y6X/EG24N9K4/B08V |
| R900917497 | 4WE6Y6X/EG24N9K4/B10 |
| R900908877 | 4WE6Y6X/EG24N9K4/B12 |
| R900937891 | 4WE6Y6X/EG24N9K4/B12SO9 |
| R900741405 | 4WE6Y6X/EG24N9K4/B12V |
| R900912411 | 4WE6Y6X/EG24N9K4/B15 |
| R900924791 | 4WE6Y6X/EG24N9K4/B25 |
| R900965834 | 4WE6Y6X/EG24N9K4/T06 |
| R901087582 | 4WE6Y6X/EG24N9K4/T06SO407 |
| R900909636 | 4WE6Y6X/EG24N9K4/V |
| R900953709 | 4WE6Y6X/EG24N9K4/VSO407 |
| R900766825 | 4WE6Y6X/EG24N9K4/VSO582 |
| R901068587 | 4WE6Y6X/EG24N9K4/Z |
| R901068582 | 4WE6Y6X/EG24N9K4/ZV |
| R901129443 | 4WE6Y6X/EG24N9K4/ZVSO407 |
| R900727379 | 4WE6Y6X/EG24N9K4003 |
| R900707264 | 4WE6Y6X/EG24N9K4K |
| R900927799 | 4WE6Y6X/EG24N9K4SO407 |
| R900939012 | 4WE6Y6X/EG24N9K4SO9 |
| R901139265 | 4WE6Y6X/EG24NC4 |
| R900951426 | 4WE6Y6X/EG24NDLSO321 |
| R900921732 | 4WE6Y6X/EG24NK4 |
| R900968359 | 4WE6Y6X/EG24NK4/B12 |
| R900961653 | 4WE6Y6X/EG24NK4/V |
| R901134305 | 4WE6Y6X/EG24NK4/X08 |
| R901032424 | 4WE6Y6X/EG24NXEZ2 |
| R901143049 | 4WE6Y6X/EG24NXEZ2/B08 |
| R901033826 | 4WE6Y6X/EG24NXEZ2/V |
| R901102774 | 4WE6Y6X/EG24NXEZ2SO329 |
| R900752441 | 4WE6Y6X/EG26K4/V |
| R900915178 | 4WE6Y6X/EG26N2K4 |
| R900765505 | 4WE6Y6X/EG26N2K4K |
| R900759383 | 4WE6Y6X/EG26N4K4 |
| R900930622 | 4WE6Y6X/EG48N9K4 |
| R900969300 | 4WE6Y6X/EG48N9K4/V |
| R900970617 | 4WE6Y6X/EG60NK4 |
| R900909273 | 4WE6Y6X/EG96N9K4 |
| R900922387 | 4WE6Y6X/EG96N9K4/V |
| R900930214 | 4WE6Y6X/EW100N9K4 |
| R900904120 | 4WE6Y6X/EW110N9DL |
| R900905896 | 4WE6Y6X/EW110N9K4 |
| R900910847 | 4WE6Y6X/EW110N9K4/V |
| R901077021 | 4WE6Y6X/EW110RNXEZ2/V |
| R900904123 | 4WE6Y6X/EW230N9DL |
| R900909415 | 4WE6Y6X/EW230N9K4 |
| R900943507 | 4WE6Y6X/EW230N9K4/B08 |
| R900945301 | 4WE6Y6X/EW230N9K4/B10 |
| R900928866 | 4WE6Y6X/EW230N9K4/B12 |
| R900951495 | 4WE6Y6X/EW230N9K4/T06 |
| R900922206 | 4WE6Y6X/EW230N9K4/V |
| R901128181 | 4WE6Y6X/EW230N9K4/Z |
| R901126928 | 4WE6Y6X/EW230N9K4/ZV |
| R901066776 | 4WE6Y6X/EW230N9K4SO9 |
| R900759059 | 4WE6Y6X/EW230NDLSO321 |
| R900901172 | 4WE6Y6X/EW230NK4 |
| R901043323 | 4WE6Y6X/EW230RNXEZ2 |
| R900702188 | 4WE6Y6X/EW24N9K4 |
|
Pilot Controlled Pressure Relief Valve Type DBW10 DBW20 DBW30
New Valve 4WRZE10E85-7X/6EG24N9ETK31/A1D3M R900617676 on Stock
Pilot Operated Rexroth Hydraulic Valves , 4WRZ16 Proportional Directional Valves
New Rexroth Valve 4WRZE 25 W8-325-71/6EG24N9EK31/A1D3M R900750126
4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
Type 4WEH32 Directional Spool Valves , Pilot Operated With Electro - Hydraulic Actuation
Hydraulic Pressure Reducing Valve , Pilot Operated Type DR10 DR20 DR30
Hydraulic Pressure Sequence valve,Pilot-operated Type DZ10 DZ20 DZ30
Hydraulic Directional Seat Valve Type M-3SEW6
Hydraulic Type M-3SEW10 Directional Seat Valve with Solenoid Actuation
