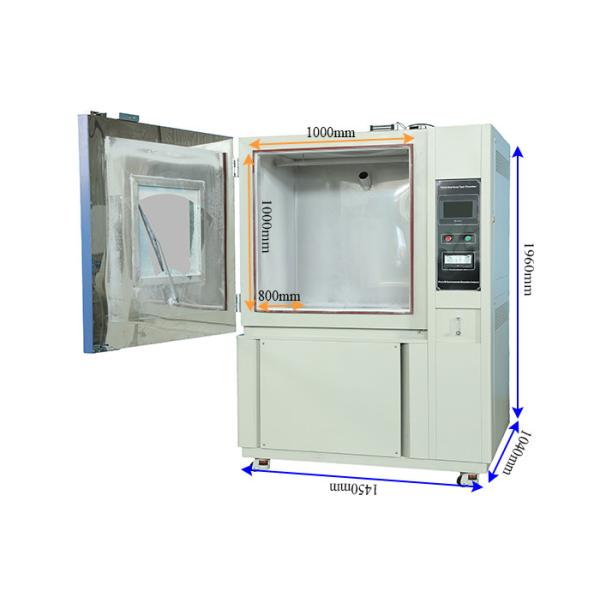

Stainless Steel Sand And Dust Test Chamber Simulated Dust Environment

Stainless Steel Simulated Dust Environment Dust Climate Chamber

Stainless Steel Simulated Dust Environment Dust Climate Chamber Mimic natural sand destructive climate on products, suitable for shell sealing performance testing products, mainly used for standard specified in the protection grade IP5X and two IP6X test grade, equipment load grey vertical circulation of air, experiment with ash can be recycled, links for cone hopper at the bottom of the air duct and air import and export air directly connected to the air duct, the formation of blowing dust recycling system, make the air can flow smoothly, do big limit of talcum powder is dispersed evenly.

Stainless Steel Simulated Dust Environment Dust Climate Chamber be appropriate for:

(1)Mobile phone, electrical products and other products in the sand and dust environment in the sealing.

(2) automotive, motorcycle parts, seals and other dust in the use of the environment, storage, transportation of sealing performance

Interior of Chamber is SUS304 stainless steel.

Dust re-cycle blowing by circulating pump.

Dust collection section is located on bottom of test chamber

A heater fixed into test chamber to keep dust dry.

A viewing window with a manually controlled wiper

A stainless steel shelf for placing test specimens.

Chamber inside equipped with power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen

Bottom install 4 castors for ease moving, and with brakes functionSafety protection

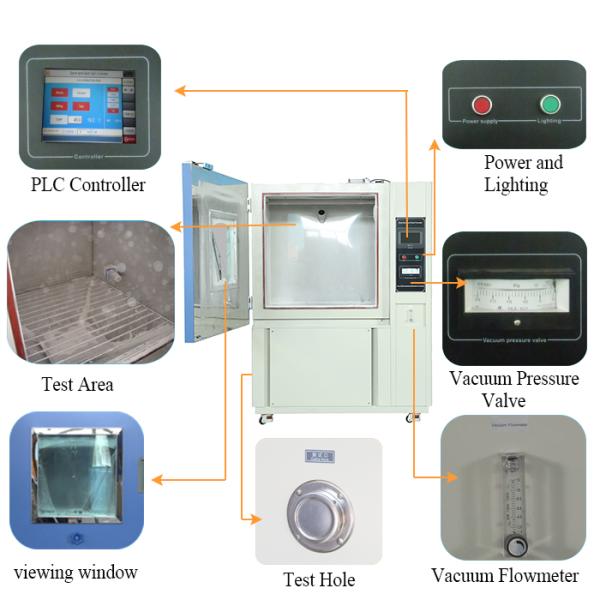

Test Area & Shelf

Interior of Chamber is SUS304 stainless steel.

A stainless steel shelf for placing test specimens

Standard load of shelf is 50kg

Normal wire diameter is 50 um.

Normal width of a gap between wires is 75um.

Built-in power interface for test specimen

Test chamber internal illumination

Vacuum system for specimen

Dust Circulation

During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.

Bottom of chamber is fitted with blower, vacuum pump, motor.

Dust collection section is located on bottom of test chamber.

Vacuum System for Specimen

Bottom of dust chamber is fitted with vacuum pump, a pressure gauge, air filter, pressure regulator, connecting tube which one side to connect pump, one side connect to test specimen.

Adjust vacuum value on control panel.

Viewing Window

Large viewing window with wiper

Can observe samples during testing

Safety Protection

Earth leakage protection,

Short circuit

Over-temperature protection

Motor overheating protection

Over-current protection

Power failure memory function for controller

3 Years Warranty, Lifelong Follow-up Services.

Training how to install and operate the machine.

Training how to maintain the machine.

Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service machines overseas to install and commissioning.

Xi An LIB Environmental Simulation Industry manufactures and sells environmental test chambers since 2009, including design, manufacuring, as well as sales and service around the world.

LIB's comprehensive products include temperature and climate chambers, corrosion test chambers, dust and water IP test equipment, weathering chamber and special test chambers to fit the customer’s application. Standard and customized models let you choose size, configuration and performance to suit many types of environmental test conditions. All LIB products have passed CE and ROHS certification, as well as other national certifications.

LIB Industry concentrates on providing the Turn-key solution for environmental testing, that research, design, producing, commissioning, delivery, install and training, provide the whole products and service according to customer’s requirements. Tell us what you need, let us help you.

Regarding sales, LIB direct sales and setting up local agents around the world allow customers to purchase LIB test chambers more conveniently. By 2019, our market has spread to 53 countries around the world, and the market continues to expand. Local agents and service centers make it easier for customers to purchase and get services.
