| Brand Name: | kingpo |
| Model Number: | KP-CJ001 |
| Certification: | iso9001 ce |
| Place of Origin: | china |
| MOQ: | 1 |
| Price: | To be Quoted |
| Payment Terms: | T/T |
| Supply Ability: | 25 sets per month |
| Delivery Time: | 30 working days |
| Packaging Details: | safety carton pack or plywood box |
| Standard: | IEC60068-2-75, IEC0884-1 fig 22-26 |
| Purpose: | mechanical strength test of household and similar use of plug socket |
| Pendulum length: | 1000mm |
| Pendulum diameter: | 9mm |
| Pendulum Material: | Steel |
| Mounting bracket: | weight: 10±1 kg |
| Company Info. |
| KingPo Technology Development Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

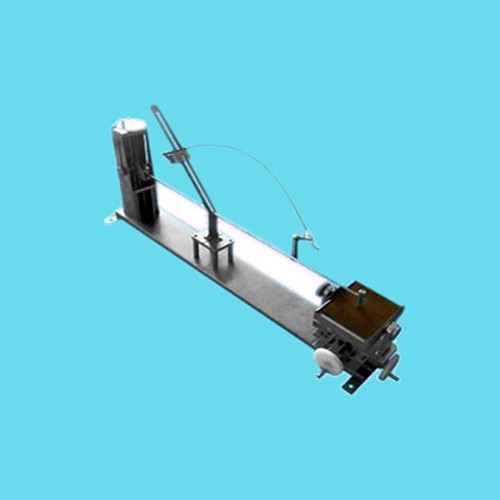

Low Energy Steel Vertical Pendulum Hammer 1000mm Impact Test Apparatus
Product details:
The low energy vertical pendulum hammer impact tester is designed and manufactured according to IEC60068-2-75, IEC0884-1 fig 22-26. It is used for the mechanical strength test of household and similar use of plug socket, some electrical accessories like switch and shroud etc. The test apparatus consists basically of a pendulum rotating at its upper end in such a way as to be kept in a vertical plane. The axis of the pivot is at 1000㎜ above the measuring point. This device is for the energy impact test (the energy is ≤ 1J).
Technical parameters:
Pendulum
| Length | 1000mm |
| External diameter | 9mm |
| Thickness | 0.5mm |
| Material | Steel |
| Weight | 100±1g |
Mounting bracket:
weight: 10±1 kg; it is well-set and the Horizontal direction and the vertical direction can be adjusted.
The whole bracket can be rotated 90°through the rotation axis.
Striking element:
weight:150g and 200g.
|
