| Brand Name: | ELT |
| Model Number: | JMC-273 |
| Certification: | ROHS ISO-9001-2015 |
| Place of Origin: | China |
| MOQ: | 200 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300,000,000 pcs per year |
| Delivery Time: | Within 3 Weeks |
| Packaging Details: | Standard Export Carton |
| Product Name: | Glass To Metal Multi-pin Headers |
| Plating: | 1.27 um Gold Plated |
| Impedance: | other |
| Certificate: | ROHS ISO-9001-2015 |
| Pin: | 2-pin |
| Material: | Kovar 4J29 |
| Glass Type: | 7052,7070, DM308 |
| Hermecity: | <1.01325 X 10E-08 std.cc/s |
| Company Info. |
| Xi'an Elite Electronic Industry Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Specification:
| Product Name | Multi-pin Headers |
| Impedance | other |
| Type | 2 pins |
| Rows | 1 row |
| Color | Gold plated |
| Body material | Kovar 4J29 |
Glass material Glass Color | 7050 or 7070 type or DM308 Green or White |
| Freqecncy Range | NA |
| VSWR | NA |
| Withstand Voltage | ≥300V |
Hermecity Leak Rate | < 1.01325 X 10-3 Pa*cm3/s < 1X 10-9 mbar*l/s < 1 x 10-9 ccHe/sec @ 1 atm |
| Insulation Resistance | ≥2000MΩ for single pin, ≥1000MΩ for multi-pin, |
| Operating Temperature | -65℃~+260℃ |
Multi-pin Headers is also called Glass insulator.They are one of the most critical components for seal assemblies. Dielectrics and supporting materials are made of glass with low dielectric constant and low dielectric loss.
Both inner conductor(pin/contact) and outer conductor(ferrule/outer ring) are made of Kovar alloy and sintered at high temperature. The surface is plated with gold. Inner conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, reliable and have been widespread in electronics manufacturing industries recent years.
Catalog-Glass-to-Metal Hermetic Seals.pdf
Features:
-Small size
-lightweight
-Hermetic
-Stable quality and high reliability
-Inner conductor: Gold wire bonding, soldering and mating method for choice
Application:
Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

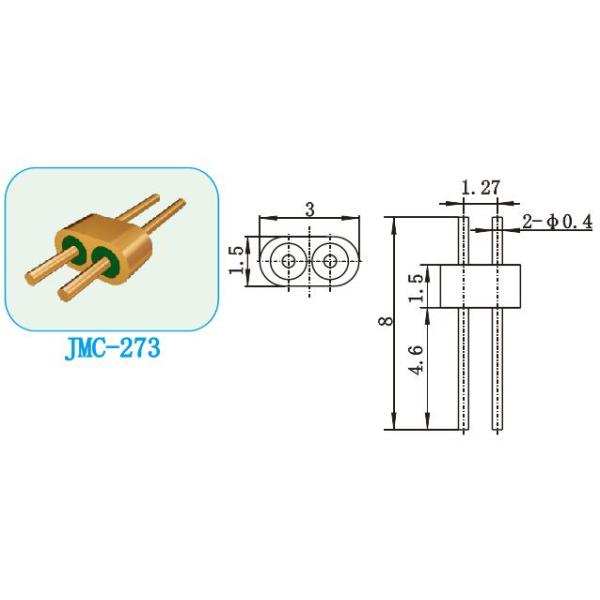

Detailed Image
Unit:mm
Product List:
| 50Ω RF Single-pin JM Series | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Standard Series | Soldering Mating and Bonding choice |
| 50Ω RF Single-pin JM Non-Standard Series | Soldering Mating and Bonding choice |
| DC Single-pin JK Series | Soldering and Bonding choice |
| DC Single-pin JK Standard Series | Soldering and Bonding choice |
| DC Single-pin JK Non-Standard Series | Soldering and Nail Head Bonding choice |
Multi-pin Header JMC Series | 1-9 pins with 1-3 rows choice |
| Custom dimensions | Wide range |
NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us
with your details.
|
