Low Fuel Consumption Heavy Duty HOWO 8x4 Dump Truck Euro Two 251 - 350hp

Categories Heavy Duty Dump Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ3317M3267
Certification: ISO/CCC
Place of Origin: China
MOQ: 1 piece
Price: Nagotiation
Payment Terms: L/C, T/T
Supply Ability: 1000/piece/month
Delivery Time: 30-45 work days
Packaging Details: Nude
Drive Wheel: 8x4
Horsepower: 251 - 350hp
Transmission Type: Manual
Fuel Type: Diesel
Emission Standard: Euro 2
Engine Capacity: > 8L
keywords: dump truck
Color: optional
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Low Fuel Consumption Heavy Duty HOWO 8x4 Dump Truck Euro Two 251 - 350hp

Low Fuel Consumption Heavy Duty Truck HOWO 8x4 Dump Truck Euro 2​


Product Description


SINOTRUK HOWO 8X4 DUMP TRUCK LHD / RHD
ModelZZ3317M3267Driving type: 8x4
CabinHW76 lengthened cab, basic equipment: one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle, four points floating air spring suspension and shock absorbers for off-highway vehicle; transverse stability installation, double locking safety belt and external sun shade for various mode.
EngineHorse power:266HP(196KW) / 300HP(213KW)
Displacement:9.726 (L) liter
Max torque:1100Nm / 1160Nm at 1100-1600 rpm
Cylinder diameter / stoke:126mm/130mm
WD615.62 / WD615.87 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG
Gear boxModel:HW13710 / HW15710
Speed:10drive, 2reverse. Max torque: 1390NM / 1500NM
HW15710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18
Front axle2×HF9, 18 ton axle load, rigid stub axle with double T- cross section and dish brake.
Rear axle

2xAC16 double heavy casting hub reduction drive axle, with supper loading

ability, excellent performance on start-up with heavy load and slope

climbing .Axle load: 2x16 tons.

SteeringZF8098 power steering, hydraulic steering with power assistance.
ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
BrakeService brake: Dual circuit compressed air brake.
Parking brake: Spring energy, storage air-break brake.
Engine brake: Engine exhausted gas brake.
Electric EquipmentOperating voltage:24V negative grounded
Battery voltage:12V/165Ah,cigar lighter
Tire & Rim11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5
Overall dimension (mm)9,725 / 9,445 X 2,496 X 3,450 (L X W X H)
Dump Box Dimension (mm)6,500 X 2,300 X 1,200 / 1,400 / 1,500
Total Mass (Kg)31,000
Curb Weight (kg)15130/15360
Maximum Speed (km/h)75
ColorWhite, red, yellow, green, blue

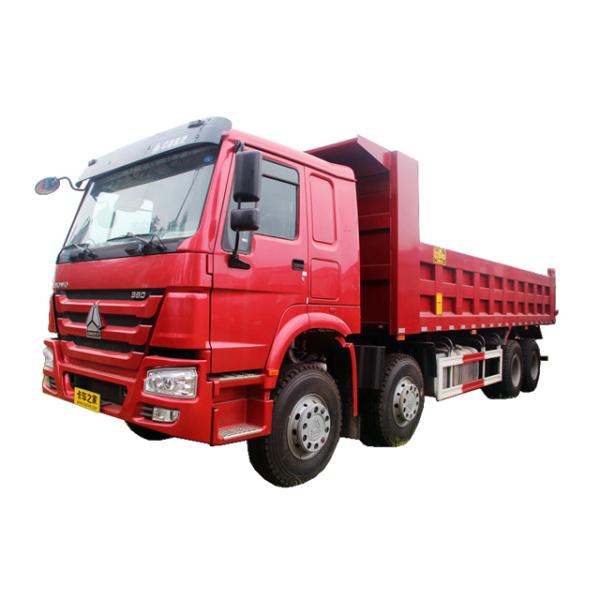

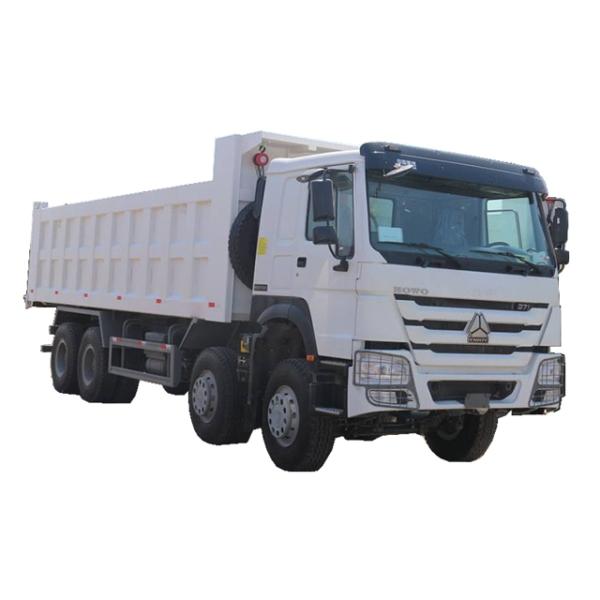

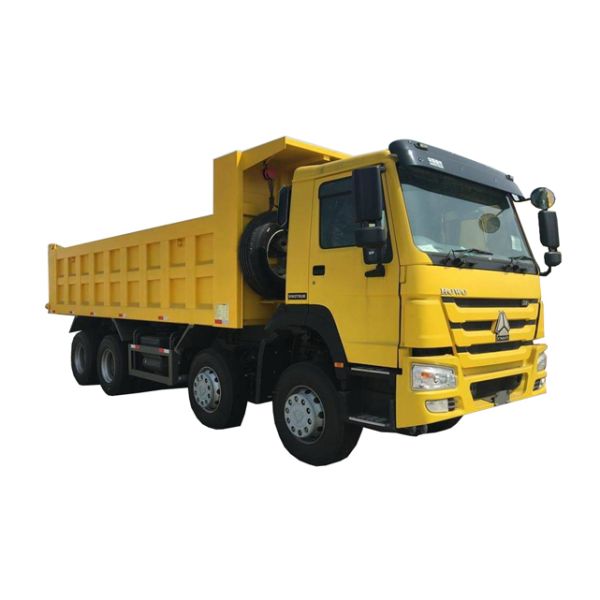

Product pictures
