SDE7 Worm Gear Slewing Ring, Tooth Contact Enclosed Slewing Drive Motor For Solar Plant

High Accuracy SDE7 Worm Gear Slewing Ring, Dual Axis Enclosed Slewing Drive

Production Description

Model: SDE7
Place of Origin: Changzhou,China
Type: Enclosed
Material: 42CrMo,50Mn
Output Torque: 2000 N.m
Tilting Moment Torque: 7500 N.m
Holding Torque: 13200 N.m
Gear Ratio: 57:1
Efficiency:40%

Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.

Advantage

1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function

Parameters of SDE Series

Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.

There is usually single axis type; dual axis type, vertical type and dual worm type from 3 to 25 inch, for detail pls contact us for the sales drawing.

Changzhou Hangtuo Mechanical Co., Ltd is a high-tech enterprise integrated with research and development, production and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. We are committed to provide customers with reliable, diversified, high-quality and customized solutions.

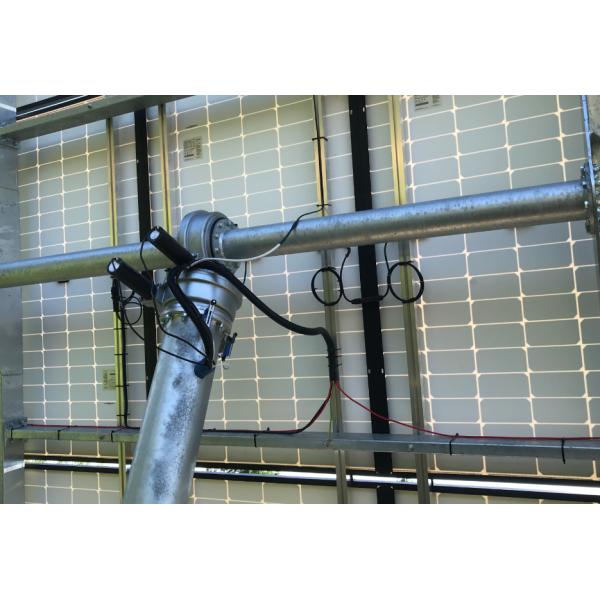

Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery etc. We will always devote to continuous product improvement and the implementation of strict quality control standards, and will continue to strive to meet the growing needs of customers.
