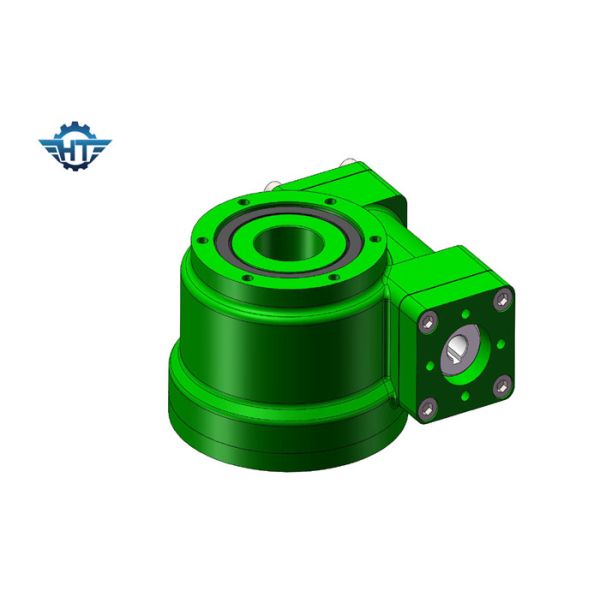

High Precision Worm Solar Small Slew Drive High Torque With Quenched Gear Surface

High Precision Worm Solar Small Slew Drive High Torque With Quenched Gear Surface

Description

The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.

1) Tilt Torque: The load is multiplied by the distance between the load position and the center of the rotary support. If the torque generated by the load and distance is greater than the rated tilting moment torque, the rotary drive will be reversed.

2) Axial load: parallel to the slewing bearing

3) Radial load: perpendicular to the slewing bearing

4) Self-locking: only when the load, the rotary drive cannot reverse rotation, so called self-locking.

5) Hold torque: Reverse torque. When the drive is rotated backwards, the parts are not damaged

6) The maximum torque achieved is called the holding torque.

Technical Parameters

Changzhou Hangtuo Mechanical Co., Ltd is a high-tech enterprise integrated with research and development, production and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. We are committed to provide customers with reliable, diversified, high-quality and customized solutions.

Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery etc. We will always devote to continuous product improvement and the implementation of strict quality control standards, and will continue to strive to meet the growing needs of customers.
