| Brand Name: | Kentie |
| Model Number: | 6001RS |
| Certification: | CE/SGS/ISO/Germany Ryan |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | US$1.152 |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500,000pcs per month |
| Delivery Time: | 2-3 work days |
| Packaging Details: | Plastic tube and paper carton |
| Material: | 304 stainless steel |
| Specification: | 12*28*8mm |
| Dynamic Load Rating: | 2.01KN |
| Static Load Rating: | 1.05KN |
| Speed: | 38000rpm |
| Weight: | 0.008kg |
| Seals type: | Rubber Seals |
| Retainer: | Nylon/steel |
| OEM: | Availible |
| Clearance: | ABEC-1 |
Food Grade Stainless Steel Deep Groove Ball Bearing 6001RS Sealed Ball Bearings Dynamic Load Rating 1300 N,12*28*8mm
Product features:
Item: 6001RS Ball Bearing
Type: Deep Groove Ball Bearing
Material: 304 stainless steel
Closures: 2 Rubber Seals
Quality: Electric Motor Quality
Product description:
6001RS Sealed Ball Bearing 12mm x 28mm x 8mm 6001RS Sealed Ball
Bearing, bearing is made of 304 stainless steel, this bearing is
sealed with rubber seals to protect the bearing from dust or any
possible contamination, this is self lubricated bearing (bearing is
already greased).
Item: 6001RS Ball Bearing
Type: Deep Groove Ball Bearing
Material: 304 stainless steel
Closures: 2 Rubber Seals
Dimensions: 5mm x 14mm x 5mm
Dynamic load rating Cr: 1,300 N Static load rating Cor: 480 N
Limiting Speed: Grease Lubrication: 50,000 RPM
Specifications
| Bearing Model | S6001RS bearing |
| Outer Diameter | 12mm |
| Inner Bore | 28mm |
| Width | 8mm |
| Material | Stainless Steel 304 |
| Seals | RS |
| Lubrication | Grease |
| Package | Plastic tube |
Our Advantages
1. Professional Stainless Steel Bearing manufacturer since 1998
2. High quality with ISO standards
3. Low noise, low vibration, smooth rotation
4. High corrosion resistance, 72 hours salt spray test
5. Free OEM
| NO | d | D | B | Load Rating | Steel Ball | Chamfer | Weight | ||
| Bearing No | mm inch | mm inch | mm inch | Cr N | Cor N | Amount | Size | KG | |
| SS605 | 5 | 14 | 5 | 1.33 | 0.505 | 6 | 2.381 | 0.3 | 0.0045 |
| SS606 | 6 | 17 | 6 | 2.19 | 0.865 | 8 | 2.381 | 0.3 | 0.006 |
| SS607 | 7 | 19 | 6 | 2.24 | 0.91 | 6 | 3.969 | 0.3 | 0.007 |
| SS608 | 8 | 22 | 7 | 3.35 | 1.4 | 7 | 3.969 | 0.3 | 0.015 |
| SS609 | 9 | 34 | 7 | 3.4 | 1.45 | 7 | 3.369 | 0.3 | 0.016 |
| SS6000 | 10 | 26 | 8 | 4.55 | 1.96 | 7 | 4.763 | 0.3 | 0.019 |
| SS6001 | 12 | 28 | 8 | 5.1 | 2.39 | 8 | 4.763 | 0.3 | 0.022 |
| SS6002 | 15 | 32 | 9 | 5.6 | 2.84 | 9 | 4.763 | 0.3 | 0.031 |
| SS6003 | 17 | 35 | 10 | 6.8 | 3.35 | 10 | 4.763 | 0.3 | 0.04 |
| SS6004 | 20 | 42 | 12 | 9.4 | 5.05 | 9 | 6.35 | 0.6 | 0.068 |
| SS6005 | 25 | 47 | 12 | 10.1 | 5.85 | 10 | 6.35 | 0.6 | 0.078 |
| SS6006 | 30 | 55 | 13 | 13.2 | 8.3 | 11 | 6.747 | 1 | 0.11 |
| SS6007 | 35 | 62 | 14 | 16 | 0.3 | 11 | 7.938 | 1 | 0.148 |
| SS6008 | 40 | 68 | 15 | 16.8 | 11.5 | 12 | 7.938 | 1 | 0.185 |
| SS6009 | 45 | 75 | 16 | 21 | 15.1 | 12 | 9 | 1 | 0.23 |
| SS6010 | 50 | 80 | 16 | 21.8 | 16.6 | 13 | 9 | 1 | 0.258 |
| SS6011 | 55 | 90 | 18 | 28.3 | 21.2 | 11 | 11.1125 | 1 | 0.362 |
| SS6012 | 60 | 95 | 18 | 29.5 | 23.2 | 13 | 11.1125 | 1 | 0.385 |
| SS6013 | 65 | 100 | 18 | 30.5 | 25.2 | 13 | 11.1125 | 1 | 0.41 |
| SS6014 | 70 | 110 | 20 | 38 | 31 | 13 | 12 | 1 | 0.575 |

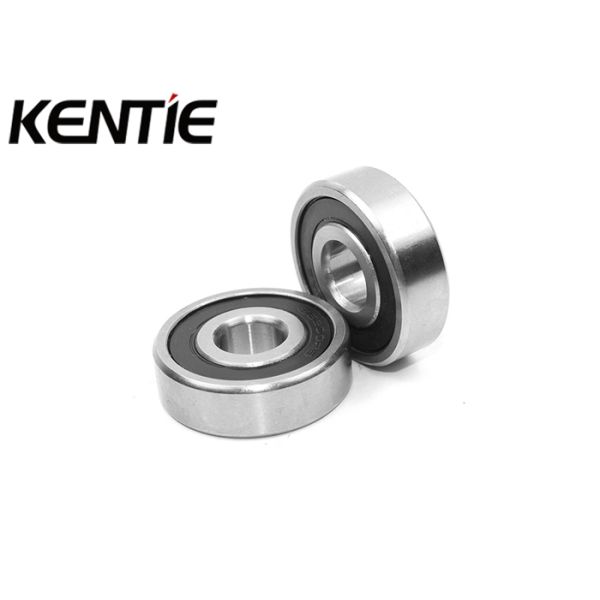

Detailed Pictures


|
