| Categories | Conical Beer Fermenter |
|---|---|
| Brand Name: | YDL |
| Model Number: | YDL |
| Certification: | ISO , CE |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets / Month |
| Delivery Time: | Within 30 - 60 Days |
| Packaging Details: | With plastic foam firstly and then outside by wooden cases(standard export packaging) |
| Material: | SUS 304 / 316 |
| Color: | Mirror Polish / Steel |
| Thickness: | 3mm for Interior Shell/2mm for Exterior Shell |
| Surface treatment: | Polished Mirror |
| Application: | Brewery |
| Type: | Drinks Beverage and Beer Brewing |
Fermentation takes place in fermentation vessels which comes in various forms, from enormous cylindroconical vessels, through open stone vessels, to wooden vats. It's during this fermentation stage, that sugars won from the malt are converted into alchohol and carbon dioxide, and the product can be called beer for the first time.

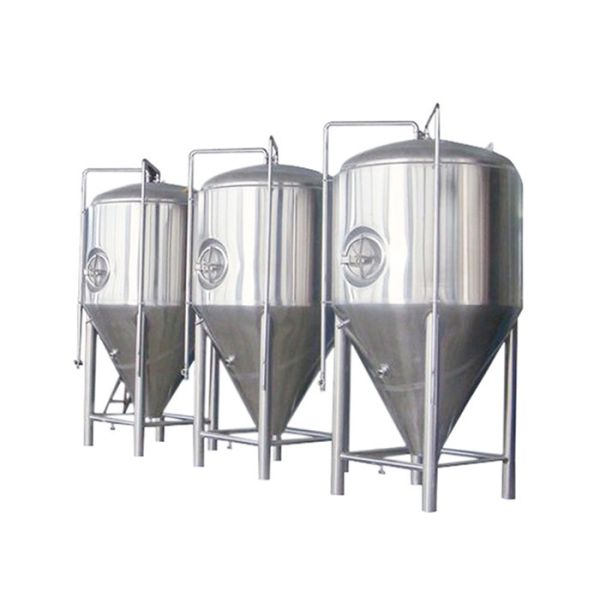

Standard stainless steel conical cylindrical fermentation tanks
Single size or double size as brewhouse is common used in microbreweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
| Best selling beer brewery stainless steel brewing | |||
| Profile/type | Single layer tank | Double layer tank | Three layer tank |
| material | SS304 or SS316L | ||
| Volume | 10L-20T (Customized) | ||
| Pressure | Vacuum-1Mpa | ||
| Tank Type | Vertical type or Horizontal type | ||
| Structure | one layer | Inner layer+jacket | inner layer+jacket+insulation |
| Cooling way | No | ice water /cooling water | ice water /cooling water |
| heating way | No | electric/steam heating | electric/steam heating |
| Agitator type | No | low speed | High speed |
| No | 0-200RPM | 960-3400RPM | |
| PARTS DETAILS | 1.Quick open manhole / Pressure manhole | ||
| 2.Various types of CIP cleaners | |||
| 3.Sterile respirator | |||
| 4.Adjustable Legs | |||
| 5.Inlet and Outlet sanitary valve | |||
| 6.Thermometer (According to customer requirements ) | |||
| 7.Paddle blender .(According to customer requirements) | |||
| 8.Liquid level meter and lever controller (According to customer requirements) | |||
| 9.Ladder | |||
2BBL fermentor configration
| 1 | Total capacity | 293L |
| 2 | Effective capacity | 2BBL |
| 3 | Size | D830*H1900mm |
| 4 | Weight | 152kgs |
| 5 | Material | SUS304 |
| 6 | Exterior shell | 2mm |
| 7 | Interior shell | 3mm |
| 8 | Insulation material | PU |
| 9 | Insulation TH | 80mm |
| 10 | Top type | Dished head |
| 11 | Manhole Type | Top |
| 12 | Manhole size | Φ350 |
| 13 | Inner cone | 60 degree |
| 14 | CIP pipe Diameter | Φ32 |
| 15 | CIP ball(1) | 360º Rotating spray ball |
| 16 | Temperature sense | PT100 sensor |
| 17 | Thermowell diameter | Φ10 |
| 18 | Inner Polishing | 0.2-0.4micron |
| 19 | Design pressure | 0.3Mpa |
| 20 | Cooling type | Dimple cooling jacket |
| 21 | Cooling area | 0.85 m2 |
| 22 | Cooling jacket inlet | G3/4 |
| 23 | Cooling jacket outlet | G3/4 |
| 24 | Pressure control | Mechanical pressure relief valve |
| 25 | Pressure gauge | 1pc |
| 26 | Rotating Racking arm | 1pc |
| 27 | Sample port | Φ38 |
| 28 | Drain outlet | Φ51 |
| 29 | Safety valve (PVRV) | Φ51 |
| 30 | Carbonation stone | 1 pc |
|
