VOE14566416 VOE14566421 Planetary Gear For Vo-lvo EC290B EC360B EC380D

Categories Excavator Final Drive
Brand Name: OEM
Model Number: EC290B EC360B EC380D
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: D/P, T/T, Western Union, MoneyGram, D/A, L/C
Supply Ability: 568 PCS per week
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
egory: Excavator final drive parts
Machine Model: EC290B EC360B EC380D
Parts No.: VOE14505739 14505739
Parts name: sun gear and coupling
Warranty: 3/6 Months
Package: standard export carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

VOE14566416 VOE14566421 Planetary Gear For Vo-lvo EC290B EC360B EC380D


  • VOE14566416 VOE14566421 Sun Gear Planetary Gear Used For Vo-lvo EC290B EC360B EC380D Final Drive Parts


  • Spec Sheet

Excavator spare parts namesun gear planetary gear
Equipment ModelEC290B EC360B EC380D
Parts egoryExcavator final drive parts
Spare parts ConditionBrand new
MOQ of order(PCS, SET)1
Parts AvailabilityIn stock
Delivery Lead time1-3 days

  • Appliion

EC240C EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D Vo-lvo.Heavy

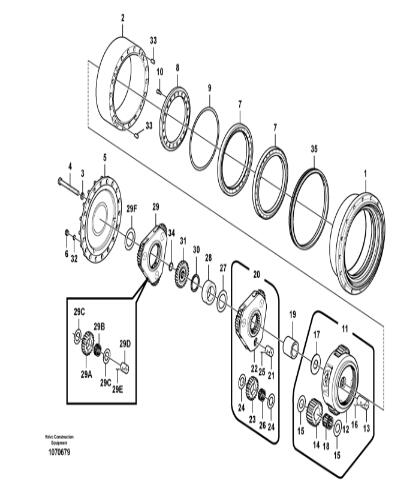

  • Parts Diagram


Pos.Part NoQtyParts nameComments
VOE14569763[1]Gearbox.
1VOE14570930[1]Housing.
2VOE14566409[1]Gear.
3SA9213-20000[18]Spring washer.
4VOE992961[19]Hexagon screw.
5VOE14566432[1]Cover.
6SA9415-11042[2]Plug.
7SA7117-38230[2]Bearing.
8VOE14566403[1]Retainer.
9VOE14566404[REQ]ShimTHICK = 0,1 mm .
9VOE14566405[REQ]ShimTHICK = 0,5 mm .
9VOE14566406[REQ]ShimTHICK = 0,7 mm .
9VOE14566407[REQ]ShimTHICK = 0,8 mm .
9VOE14566408[REQ]ShimTHICK = 1,0 mm .
10VOE984088[20]Hex. socket screw.
11VOE14566410[1]Planet carrier.
12VOE14566411[1]Planet carrier.
13VOE14566415[5]Pin.
14VOE14566413[4]Planetary gear.
15VOE14566414[8]Washer.
16SA9325-06012[4]Spring pin.
17SA8230-21020[1]Thrust ring.
18VOE14566412[4]Needle bearing.
19VOE14566416[1]Gear.
20VOE14566418[1]Planet carrier.
21VOE14566423[3]Pin.
22VOE14566419[1]Planet carrier.
23VOE14566421[3]Planetary gear.
24VOE14566422[6]Washer.
25SA9325-06012[3]Spring pin.
26VOE14566420[3]Needle bearing.
27VOE14566433[1]Thrust washer.
28VOE14566424[1]Gear.
29VOE14570931[1]Planet carrier.
29VOE14570933[3]Gear.
29VOE14566427[3]Needle bearing.
29VOE14566429[6]Washer.
29VOE14566430[3]Pin.
29SA9325-06012[3]Spring pin.
29VOE14569232[1]Ring.
30VOE14566417[1]Ring.
31VOE14570934[1]Gear.
32VOE990557[2]O-ring.
33VOE950677[2]Pin.
34VOE914467[1]Retaining ring.
35VOE14667679[1]Seal.

  • Description


Engine parts are designed precisely to work in engine system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.

  • Advantage

1. The reducer driving system parts are built to fit to the machine original system.

2. The reducer driving system are supplied strictly according to the genuine parts alog.

3. All the reducer driving system are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of filters that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
