Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45
angle branch
Ductile iron fittings tee are made of ductile cast iron commonly
used for potable water transmission and distribution. Owing to our
expertise in this domain, we are engaged in offering an exclusive
array of ductile iron fittings.
In order to ensure quality and durability, these fittings are
stringently tested on various parameters.
Mechanical property Form 1
| Item | Tensile strength | Elongation | Hardness |
| DI fittings | ≥450 | ≥5 | ≤230 |

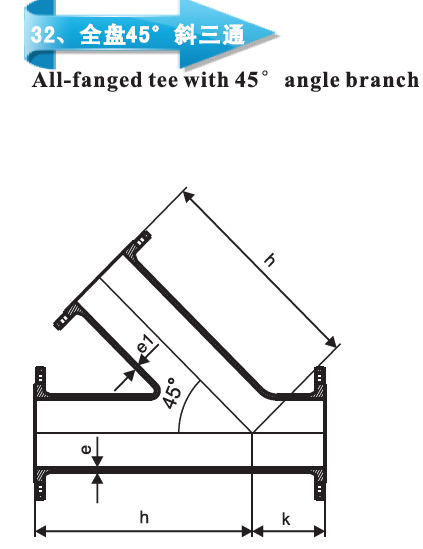

The size and weight of all-flange tee with45° angle branch
| DN | dn | Size | Weight (kg) | |||||
| e | e1 | h | k | PN10 | PN16 | PN25 | ||
| 80 | 80 | 8. 1 | 8.1 | 390 | 85 | 21.4 | 21.4 | 21.4 |
| 100 | 80 | 8.4 | 8. 1 | 415 | 85 | 25.0 | 25.0 | 26.0 |
| 100 | 8.4 | 415 | 95 | 26.8 | 26. 8 | 28.3 | ||
| 125 | 80 | 8. 7 | 8. 1 | 445 | 85 | 29.6 | 29. 6 | 30.8 |
| 100 | 8.4 | 445 | 95 | 31.7 | 31.6 | 33.4 | ||
| 125 | 8.7 | 450 | 110 | 34.9 | 34.9 | 36.7 | ||
| 150 | 00 | 9. 1 | 8. 1 | 475 | 85 | 37.1 | 37.1 | 39.1 |
| 100 | 8.4 | 480 | 100 | 39.4 | 39.4 | 41.9 | ||
| 125 | 8.7 | 480 | 115 | 42.7 | 42.7 | 45.5 | ||
| 150 | 9. 1 | 485 | 125 | 46.0 | 46.0 | 49,0 | ||
| 200 | 80 | 9.8 | 8. 1 | 535 | 90 | 52.7 | 52.3 | 56.5 |
| 100 | 8.4 | 540 | 100 | 55.3 | 54.9 | 59.6 | ||
| 125 | 8.7 | 540 | 115 | 59.0 | 58.7 | 63.6 | ||
| 150 | 9. 1 | 545 | 130 | 62.8 | 62.4 | 67.6 | ||
| 200 | 9.8 | 550 | 160 | 71.5 | 70.9 | 77.2 | ||
| 250 | 80 | 10.5 | 8. 1 | 595 | 90 | 72.5 | 71.7 | 79.5 |
| 100 | 8.4 | 600 | 100 | 75.4 | 74.6 | 82.9 | ||
| 125 | 8. 7 | 600 | 115 | 79.6 | 78.8 | 87.4 | ||
| 150 | 9.1 | 605 | 130 | 83.8 | 83.0 | 91.8 | ||
| 200 | 9.8 | 610 | 160 | 93.7 | 92.7 | 103 | ||
| 250 | 10.5 | 615 | 190 | 104.0 | 103.0 | 115.0 | ||
| 300 | 80 | 11.2 | 8. 1 | 655 | 90 | 96.3 | 96.0 | 107.0 |
| 100 | 8.4 | 660 | 100 | 99.6 | 98.8 | 111.0 | ||
| 125 | 8.7 | 660 | 115 | 104.3 | 103.4 | 115.5 | ||
| 150 | 9.1 | 665 | 130 | 109.0 | 108.0 | 120.0 | ||
| 200 | 9. 8 | 670 | 160 | 120.0 | 119.0 | 132.0 | ||
| 250 | 10.5 | 675 | 190 | 132.0 | 131.0 | 146.0 | ||
| 300 | 11.2 | 680 | 220 | 145.0 | 144.0 | 161 0 | ||
| 350 | 100 | 11.9 | 8.4 | 720 | 105 | 123.0 | 130.0 | 147.0 |
| 125 | 8. 7 | 720 | 120 | 128.5 | 135.0 | 152.5 | ||
| 150 | 9. 1 | 725 | 135 | 134.0 | 140.0 | 158.0 | ||
| 200 | 9. 8 | 730 | 160 | 145.0 | 151.0 | 170.0 | ||
| 250 | 10. 5 | 735 | 190 | 158.0 | 164. 0 | 184.0 | ||
| 300 | 11.2 | 740 | 220 | 173.0 | 178.0 | 201.0 | ||
| 350 | 11.9 | 749 | 250 | 186.0 | 195.0 | 220.0 | ||
| 400 | 100 | 12.6 | 8.4 | 780 | 105 | 153.0 | 164.0 | 187.0 |
| 125 | 8. 7 | 780 | 120 | 158.5 | 169.5 | 193.0 | ||
| 150 | 9. 1 | 785 | 135 | 164.0 | 175.0 | 199.0 | ||
| 200 | 9. 8 | 790 | 165 | 177.0 | 188.0 | 213.0 | ||
| 250 | 10. 5 | 795 | 190 | 191.0 | 202.0 | 228.0 | ||
| 300 | 11.2 | 800 | 220 | 206.0 | 217.0 | 245.0 | ||
| 350 | 11.9 | 810 | 250 | 221.0 | 236.0 | 267.0 | ||
| 400 | 12.6 | 815 | 280 | 238.0 | 255.0 | 288.0 | ||
| 450 | 100 | 13. 3 | 8.4 | 840 | 105 | 185.0 | 202.0 | 233.0 |
| 125 | 8.7 | 840 | 125 | 191.0 | 208.0 | 239.5 | ||
| 150 | 9.1 | 845 | 135 | 197.0 | 214.0 | 246.0 | ||
| 200 | 9.8 | 850 | 165 | 211.0 | 228.0 | 262.0 | ||
| 250 | 10.5 | 855 | 195 | 226.0 | 244.0 | 278.0 | ||
| 300 | 11.2 | 865 | 225 | 244.0 | 261.0 | 298.0 | ||
| 350 | 11.9 | 870 | 250 | 259.0 | 280.0 | 319.0 | ||
| 400 | 12.6 | 875 | 280 | 277.0 | 300.0 | 342.0 | ||
| 450 | 13.3 | 880 | 310 | 295.0 | 321.0 | 367.0 | ||
| 500 | 100 | 14 | 8.4 | 900 | 110 | 227.0 | 257.0 | 281.0 |
| 125 | 8.7 | 910 | 125 | 233.5 | 264.0 | 288.0 | ||
| 150 | 9.1 | 915 | 140 | 240.0 | 271.0 | 295.0 | ||
| 200 | 9.8 | 915 | 165 | 255.0 | 285.0 | 311.0 | ||
| 250 | 10,5 | 920 | 195 | 272.0 | 302.0 | 330.0 | ||
| 300 | 11.2 | 925 | 225 | 291.0 | 321.0 | 350.0 | ||
| 350 | 11.9 | 930 | 245 | 308.0 | 341.0 | 373.0 | ||
| 400 | 12.6 | 935 | 280 | 326.0 | 362.0 | 397.0 | ||
| 450 | 13.3 | 940 | 310 | 345.0 | 384.0 | 423.0 | ||
| 500 | 14.0 | 945 | 340 | 369.0 | 414.0 | 449.0 | ||
| 600 | 100 | 15.4 | 8.4 | 1020 | 110 | 324.0 | 377.0 | 406.0 |
| 125 | 8.7 | 1025 | 130 | 332.5 | 3S5.5 | 415.0 | ||
| 150 | 9.1 | 1030 | 140 | 341.0 | 394.0 | 424.0 | ||
| 200 | 9.8 | 1035 | 170 | 359.0 | 412.0 | 442.0 | ||
| 250 | 10.5 | 1040 | 200 | 378.0 | 431.0 | 463.0 | ||
| 300 | 11.2 | 1045 | 225 | 398.0 | 451.0 | 485.0 | ||
| 350 | 11.9 | 1050 | 255 | 418.0 | 474.0 | 511.0 | ||
| 400 | 12.6 | 1055 | 285 | 440.0 | 499.0 | 539.0 | ||
| 450 | 13.3 | 1060 | 315 | 463.0 | 524.0 | 568.0 | ||
| 500 | 14.0 | 1065 | 345 | 459.0 | 557.0 | 597.0 | ||
| 600 | 15.4 | 1080 | 400 | 545.0 | 625.0 | 667.0 | ||
|
