Military HESCO Barriers Mil 1 5442 Defensive Hesco Bastion Wall 3"X 3" Mesh Hole

Categories Military Barrier
Brand Name: SHUXIN
Model Number: Mil 1 5442
Certification: CE SGS ISO COC
Place of Origin: CHINA
MOQ: 100 unit
Price: Negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 units per week
Delivery Time: 15 work days
Packaging Details: pallet and plastic film
Components: gabion mesh,Spring, Joint Pin, Geotextile fabric
Sureface Treatment: Heavy Hot Dipped Galvanized
mesh hole: 3" x 3"
wire: 5.0mm
life duration: ≥ 25 years
warranty: ≥ 3 years
Type: Welded wire mesh
Style: mil 1 -- mil 10
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Military HESCO Barriers Mil 1 5442 Defensive Hesco Bastion Wall 3"X 3" Mesh Hole

Military HESCO Barriers Mil 1 5442 Defensive Hesco Bastion Wall


Introduction of Military Barriers :


1. Military Barrier

A geotextile lined unit for general use as an earth filled barrier .
The units are suiltable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the contruction of protective walls and barriers.


2. Specification:


1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: heavy duty geotextile,non-woven,permeable, polypropulene farbric,

beige or green color,

MIL 1 / Unit



Material : All wires conform to BS EN10218-2012,

Zinc-Alunminum coating are to BS EN 10244-2:2009

Geotextile: heavy duty geotextile, non-woven,permeable,

polypropulene farbric

Geotextile color: beige or green color


Mesh Hole: 3” X 3”

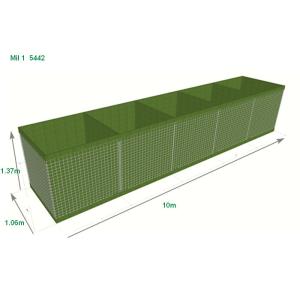

Unit Size : 1.37m x 1.06m x 10m

Cells: 1 unit = 5 cells + 4 cells = 9 cells


Item No.HeightWidthLength

all dimensions and weight are nominal ,

Diagrams and products are for illustrative purpose only.

SX1 (Mil 1)

4’6”

(1.37m)

3’6”

(1.06m)

32’9”

(10m)

The Common Specification of Military HESCO barriers as followed:

MODELHeightWidthLengthNO. of Cells
SX-14'6"(1.37M)3'6"(1.06M)32'(10M)9 cells(1*4, 1*5)
SX-27'(2.1M)3'6"(1.06M)108'(33M)30 cells(6*5)
SX-32'(0.61M)2'(0.61M)4'(1.21M)2 cells
SX-43'3"(1.0M)3'3"(1.0M)32'(10M)10 cells(2*5)
SX-52'(0.61M)2'(0.61M)10'(3.05M)5 cells
SX-65'6"(1.68M)2'(0.61M)10'(3.05M)5 cells
SX-77'3"(2.21M)7'(2.13M)90'(27.74M)13 cells(2*4,1*5)
SX-84'6"(1.37M)4'(1.22M)32'(10M)9 cells(1*4, 1*5)
SX-93'3"(1.0M)2'6"(0.76M)30'(9.14M)12 cells(2*6)
SX-107'(2.12M)5'(1.52M)95'(30.5M)20 cells(4*5)
SX-113'3"(1.0M3'3"(1.0M)3'3"(1.0M)1 Cell
SX-127'3"(2.21M)7'3"(2.21M)7'3"(2.21M)1 Cell

Military barriers Sand Wall Application:


1. Flood Control.


Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.


2. Military Defence


Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.


3. Hotel Pretection


A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
