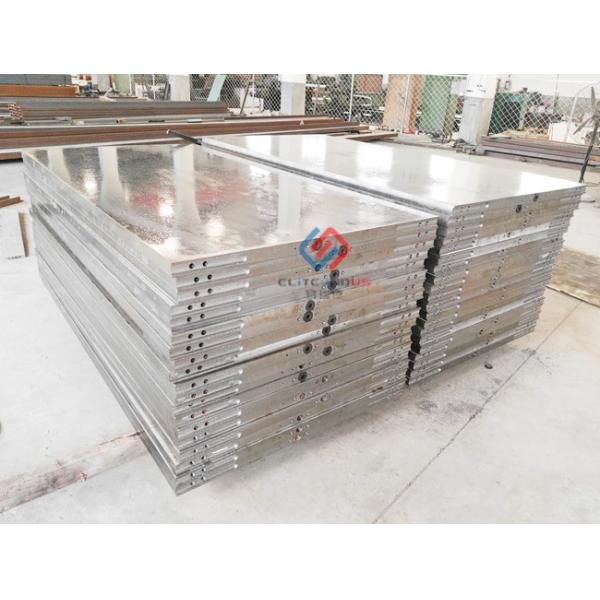

carbon aluminium stainless steel heating platens for Hydraulic thermal laminator

carbon steel aluminium stainless steel heating platens

for Hydraulic thermal laminator

Introduction :

ELITE Heating platens deliver high levels of thermal stability to many kinds of applications that involve heated or cooled plates.

This kind of perforated plates can be designed for electric, thermal oil, water, or steam heating/cooling.

These technologically advanced plates uniformly apply heating/cooling energy provided to the platen.

In some cases temperature uniformity can reach up to +/-1.5 ℃.

Introduction of heating Platens

ELITE Heating platens application advisor.

In manufacturing, a platen is a metal plate used in presses.

The press can be for laminating or for the production of a wide range of items including gaskets, particle board,

semiconductor wafers, and plywood, fabric laminator etc...

Many of these processes require heating the plate to high temperatures.

These heaters deliver high watt densities and are designed to fit in tight spaces.

Heating is a complex process governed by the principles of thermodynamics, fluid mechanics, and heat transfer.

Heat transfer, in particular, is useful knowledge as it will help inform important aspects of heater selection and system design.

Heat transfer is the movement of heat from one area (or object) to another, always from areas of high concentration (hot) to areas of low concentration (cool).

Approximate heating platens dimensions:

ELITE Heating platens Types (A, B, C, D, D Edge Pin, E, M)

Type A - Electric Strip Plate

Type B - Electric Cartridge Plate

Type C - Steam, Water, or Thermal Fluid Platen

Type D - Steam, Water, or Thermal Fluid Platen

Type E - Steam, Water, or Thermal Fluid Platen

Advantages of heating platens :

Excellent thermal uniformity on the surface

Less scrap parts and more heating/cooling control

A more responsive platen

Quicker heat up times

Rapid thermal recovery for quick cycle applications

Package of heating platens :

Anti rust oil to be applied on material and each rod to be packed in paper sleeve.

After the final inspection, the plates are protected from corrosion.

The plates are packed depending on the transport type.

Packaging provides safe manipulation and guarantees damage-free delivery.

Anhui Elite Industrial Co.,Ltd

is a mechanical parts welding manufacturer that integrates design, manufacturing, assembly, testing, and exporting, proudly providing a comprehensive solution for mechanical parts. Our company is based on OEM, but adhering to the concept of "quality priority, intellectual first", while pursuing quality our company has gradually paid attention to design and manufacturing processes, and expects to accomplish the goal of over-OEM to ODM in the future.

Elite's production base is located in the beautiful City Kunshan, with a factory area of 22,000 square meters and a construction area of 14,000 square meters. Founded in 2011, our company has more than 100 outstanding employees, more than 20 office technicians, with a high-level welding team consisting of several international welders (ISO 9606-1 International Welders Certificate) and senior welders, also with a group of skilled machining operators and a skilled assembly team.

We passed the ISO9001 quality assurance system in 2011 and established own quality control team. We continuously receive and learn the customer's requirements for product quality, and conscientiously implements the quality-first service-best management concept, therefore we accumulated a good reputation in the industry field and received customer’s recognition simultaneously.

Our company has the CNC flame cutting machine, plasma cutting machine, laser cutting machine, CNC boring and milling machine, 6meter CNC gantry machining center, 8meter gantry boring and milling machine, 4meter CNC guide grinding machine, TRUMPF laser cutting machine, 4 to 8 meters Bending machines and various common welding machines.

We have High-precision testing equipment such as Hexagon gantry three-coordinate detector(DEA ALPHA) , Leica laser tracker and articulated arm measuring instruments. Besides using the efficient equipment to solve problems, our technical team is constantly researching new production processes to meet the new requirements in the market, and also invest more advanced machining and welding equipment.

At present, our main products focus on welding parts, machined parts, industrial pressure platens, guide rods /column/pillar, press roller, calender roller and other machine body with accessories, for the large welded structural parts can be made to a single weight of 15 tons, the thickness of the heating platen and insulation board can be made a tolerance of ±0.1mm from 20mm to 200mm, the rod column can achieve Max. Φ300mm with length in 6 meter, surface with chromed coating by thickness up to 0.07mm.

We can also pre-assemble equipment components according to customer requirements, such as assembly of some fixtures and welding line bases. Our customers spread both domestic and foreign markets, we’re working with some of FORTUNE GLOBAL 500 and eventually becomes a long-term stable partner.

We attach great importance to the talent training strategy, regularly conducts knowledge and operation standards training for new employees, and enables competent employees to further study. Currently we cultivated a group of assistant engineers, intermediate welders, intermediate molders, electrical technicians, welders, and testing personnel, with these people we're confident to the future.
