| Categories | LED Street Lighting |
|---|---|
| Brand Name: | LEDYOND |
| Model Number: | LY-ST50080PW |
| Certification: | CE RoHS CB TUV ENEC |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 Pcs |
| Price: | 70-80usd/pcs |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs/week |
| Delivery Time: | 7-10 Working days |
| Packaging Details: | Standard Export Carton |
| Power: | 80W |
| Housing Material: | Aluminum Alloy |
| Housing Color: | Grey or Black |
| LED Chip: | Luxeon 5050 led |
| Driver: | Meanwell ELG-100H-48A |
| Luminous flux(lm): | 13200 |
Energy Saving 5050 SMD LED Street Lighting Tempered Glass Cover, 160lm/w Toolless LED Highway Street Lights
Par NO Parameter | LY-ST50080PW | LY-ST50080NW |
| Input voltage | AC100V~240V 50/60HZ | |
| System consumption(W) | 80 | 80 |
| Luminous flux(lm) | 13200 | 12800 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Current | 0.37A/220V | 0.37A/220V |
| CRI | >75 | |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | |
| Lifespan(hrs) | >50000 | |
| Luminous efficiency(lm/w) | >160 | |
| Dimmable | YES&NO | YES&NO |
| IP Rating | IP65 | |
| Net Weigh(kg) | 6.2 | 6.2 |

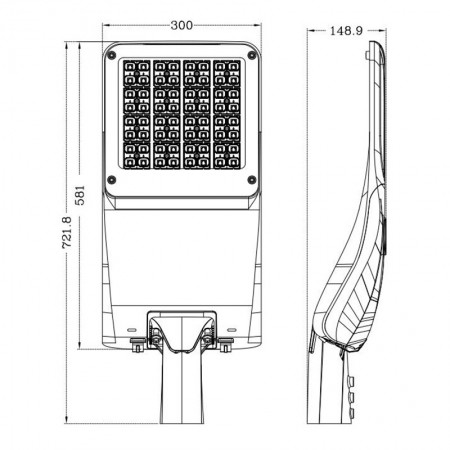

| Size(mm) | 722*300*149 | 722*300*149 |

Good used for highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
• Top quality Meanwell or Sosen power supply,input voltage 90-305V.The power efficiency is more than 89%, power factor>0.95,UL certification.
• Adopting Super bright 5050 led and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Die-casting aluminum housing, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of
working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability
and also reduce the death rate of the leds
