Rf Coaxial Nickel Plated N Male To BNC Female Connector Adaptor 2500V Rms

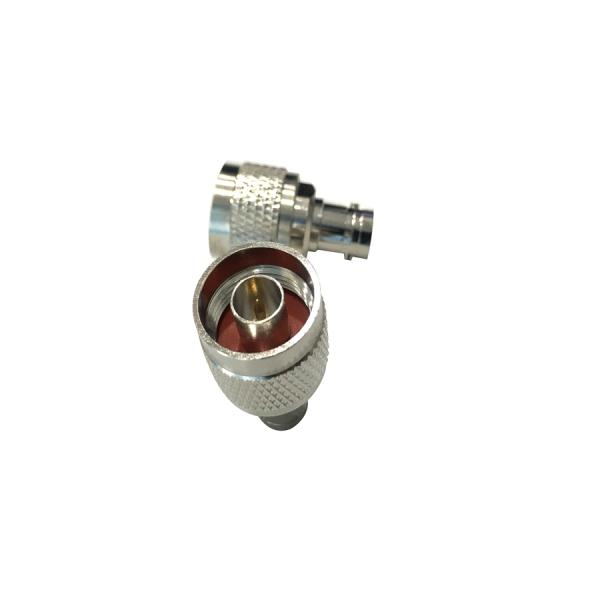

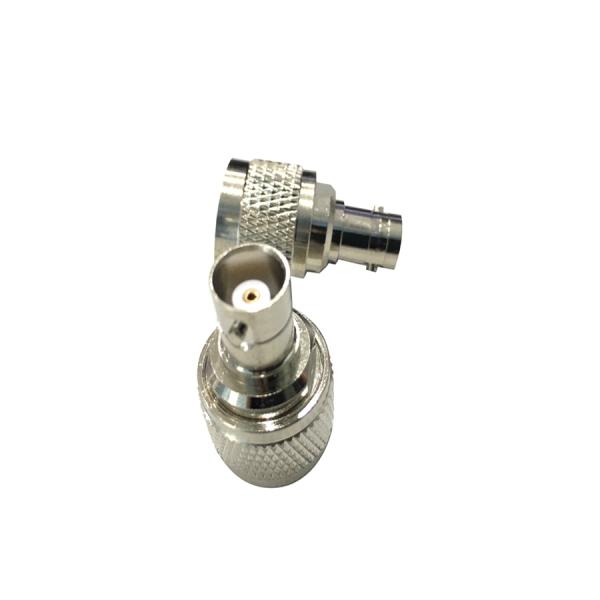

Rf coaxial Nickel Plated N Male to BNC Female connector Adaptor

ZD RF Connector has an operational frequency range of DC-6 GHz, offers excellent VSWR performance and Low Passive Intermodulation. This makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.

	TECHNICAL SPECIFICATION		ZD
	ZD-NM-BNC-F		Rev:A/0

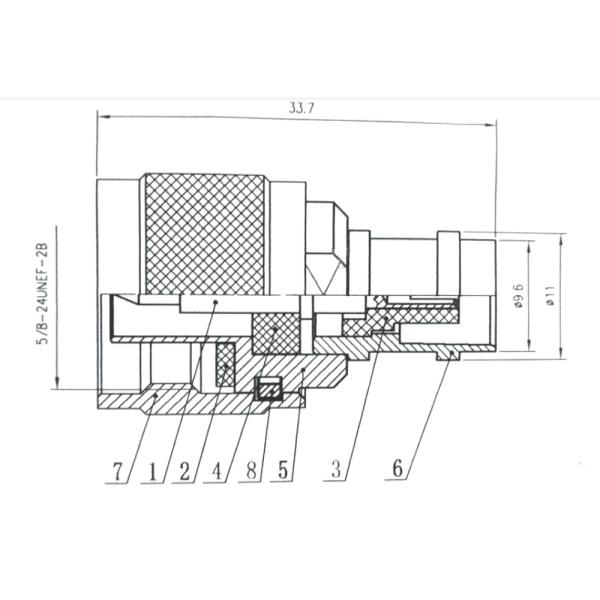

1.Figure
2.Product Description

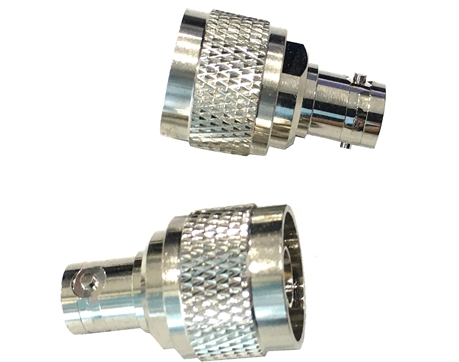

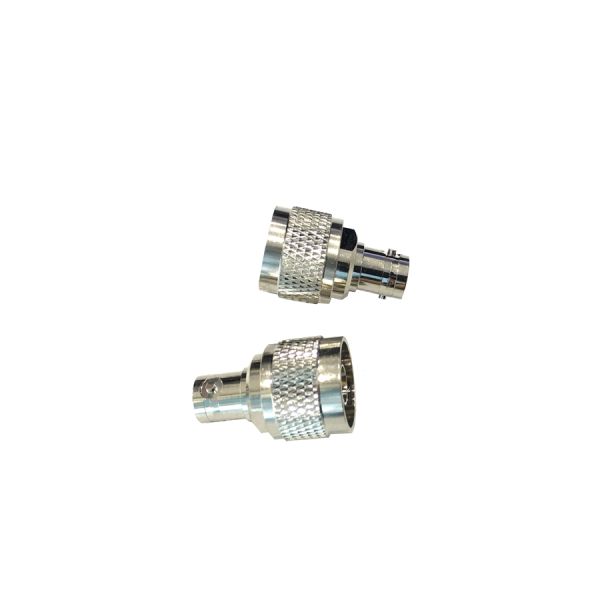

NM-BNC-F N Male to BNC Female connector Adaptor
3. Material and Plating
Center contact		Tin-bronze/ Silver Plated
Outer contact		Tin-bronze/ Silver Plated
Body		Brass/ Silver Plated
Dielectric		PTFE
Gasket		Silicon Rubber
Nut		Brass/ Nickel Plated
4. Electrical Characteristics
Characteristics Impedance		50 Ohm
Frequency Range		DC,7.5GHz
Insulation Resistance		≥10000 MΩ
Contact resistance		N type		N type
Center contact		5 MΩ		≤0.4MΩ
Outer contact		≤1.OMΩ		≤0.2MΩ
Dielectric Strength		2500V rms
Working voltage		1400V rms
Insertion Loss		≤0.10dB@DC'3GHz
VSWR		≤1.10@DC'3.0GHz
PIM(2x43dBm)		≤-160dBc
5. EnviroNFental and Mechanical Specifications
Durability (matings)		≥500 cycles
Thermal Shock Test Method		MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method		MIL-STD-202, Meth. 204, Cond. B
Temperature Range		-65~+165℃
RoHS		Compliant
