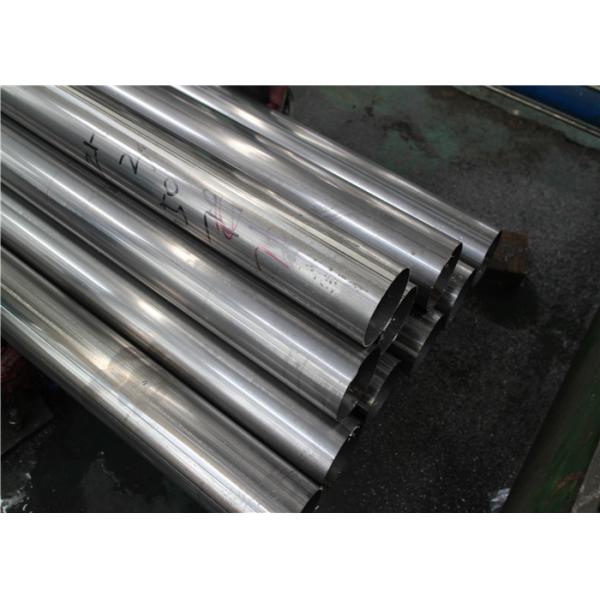

Cold Drawing Stainless Steel Welded Tube TP304

Categories	Stainless Steel Welded Tube
Brand Name:	SINOY
Model Number:	TP304
Certification:	ISO, SGS, TUV, ISO
Place of Origin:	CHINA
MOQ:	1 Ton
Price:	Negotiable
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	2000 Tons
Delivery Time:	5-7 days
Packaging Details:	waterproof paper and steel strip reinforcement steel strip reinforcement,one package about 2.5 tons, 20' / 40'
Material:	201 202 304 304L 316L 321 310S 400 Series 2205 904L Duplex
Wall Thickness:	0.3-50 mm
Length:	6000 mm
OD:	6-720 mm
Technique:	Welded ,ERW
Tolerance:	Thickness: +/- 0.02mm Length: +/- 5mm
Trade Term:	Ex-Work, FOB, CNF, CFR, CIF, Etc
FOB Port:	Shanghai Or As Required

Contact Now

Add to Cart

Company Info.

Wuxi Sino Yuan Science And Technology Co.,Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Cold Drawing Stainless Steel Welded Tube TP304

Cold Drawing TP304 Bright Annealed Stainless Steel Welded Pipe

TP304 STANILESS STEEL WELDED PIPE

Type

seamless stainless steel tube , Welded stainless steel tube , Spiral stainless steel tube
ERW stainless steel tube , EFW stainless steel tubeLarge caliber stainless steel pipe ,
Thick walled stainless steel tube , Precision stainless steel tube

Shape : Round , Square, Rectangular, Oval, Hexagonal

Grade

200 Series: 201/202
300 Series: 301/302/303/304/304 L/304 N/309/309 S/310/316/316 L/321/347
900 Series: 904L

Surface :Drawing , Polishing , Anodizing , Coating , Mirror etc...

Standard :GB/T6893-2000,GB/T4437-2000,ASTM B210,ASTM B241,ASTM B234,JIS H4080-2006,etc

Technique : Hot Rolled , Cold Rolled , Casting , Forging etc.

Certification :ISO , SGS ,BV and so on.

Application :Oil well pipe (casing , tubing and drill pipe , etc.), pipeline , boiler tube , mechanical structure pipe ,
hydraulic prop pipe , gas cylinder tube , geological tube , chemical pipe
(high pressure chemical fertilizer pipe , oil cracking pipe) and ship pipe

Data Compare with other grade:

	C	S	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤1.00	≤5.5-7.0	≤0.060	≤0.030	3.50-5.50	16.00-18.00
202	≤0.15	≤1.00	≤7.50-10.00	≤0.060	≤0.030	4.0-6.0	17.0-19.0	---
304	≤0.07	≤1.00	≤2.00	≤0.035	≤0.030	8.00-11.00	17.00-19.00	---
304L	≤0.03	≤1.00	≤2.00	≤0.035	≤0.030	8.00-12.00	18.00-20.00	---
316	≤0.08	≤1.00	≤2.00	≤0.035	≤0.030	10.00-14.00	16.00-18.50	2
316L	≤0.03	≤1.00	≤2.00	≤0.035	≤0.030	12.00-15.00	16.00-18.00	2

Sino Stainless Steel

Sino Yuan is one of most prominent Stainless Steel Stockholder and Service Center providing Stainless Steel

to various industries in the region. Sino Yuan's stock holds the entire range of stainless steel like sheets, coils,

pipes for decoration and industry,round bars in different grades ( 304 304L 316 316L 321 310S 309S 310S

2205 904L)

and sizes specially stocked to meet the local industrial demands as well as the International Mraket.

Specifications data of stainless Steel Welded Pipe:

Size (mm)	Quantity	Size (mm)	Quantity	Size (mm)	Quantity
6-12×1.5-2.5	18	73×4-4.5-5-6-7-8-9-10-12-15	50	219×30-40	65
14×1.5-2.5-3	20	76×4-4.5-5-6-7-8-9-10-12-14	60	245×8-10-14-17-20-22	105
16×1.5-2.5-4	30	83×4.5-5-10	30	245×25-28-30-34-40	84
18×2.3-4-5	20	89×4.5-8-10	40	273×7-9-12-15-18-20-25	100
20×2.5-3-5	17	95×4.5-6-8	50	273×30-35-38-40	50
24×2.5-3-4-5-6	25	102×4.5-5-6-10-12-14-16-20	80	299×8-12-16-20-24-28	60
25×2.5-3-4-5-6	28	108×4.5-5-14-18-20-22	75	299×30-32-36-38-40	70
28×3-3.5-4-5-6	30	114×4.5-5-6-7-8-10-12-14-18-20	100	325×8-12-14-18-38	120
32×3.5-4-5-6-8	40	121×4.5-5-6-7-8-10-12-14-16-20	102	325×28-32-34-38	75
34×4-5-6-8	35	127×4.5-5-6-7-8-10-12-14-16-20	95	351×10-16-20-25-40	120
36×3.5-5-6-8	30	133×4.5-6-8-12-14-16-18-20-25-30	120	355×6-18-20-25-30-40	45
38×4-5-6-7-8-9-10	33	140×5-6-7-8-9	50	377×8-12-15-20-24-28	128
39×3.5-5-8-10	30	146×4.5-6-8	60	377×30-37-40	60
42×3.5-4-5-6-7-8-9-10	35	152×4.5-6-8	60	402×10-20-25-30-35	70
45×3.5-4-5-6-7-8-9	40	159×4.5-6-10-12-14	80	406×10	110
48×3.5-4-5-6-7-8-9-10	24	159×16-18	30	426×10	97
51×3.5-4-5-6-7-8-9-10	60	168×8-25-30-35	130	450×10-20-25-34-40	108
56×3.5-4-5-6-7-8-9-10	58	180×8-12-16-25-30	105	480×25-30-40	95
57×3.5-5-6-7-8-9-10-12	50	180×32-34-38-40	102	500×10-34-40-45	100
60×3.5-4.5-5-6-7-8-9-12-14	60	194×6-8-25-30-40	140	510×10-25-34-40-45	110
63×3.5-4.5-5-6-7-8-9-10-12-14	40	203×6-7-10-15-20-25-30	90	530×20-30-40	140
68×4-4.5-5-6-7-8-9-10-12-14-16	35	203×32-36-40	70	560-720*6-10-24-45
70×4-4.5-5-6-7-8-9-10-12-15-16	40	219×6-8-12-16-18-20-25	110

TP304 Stainless Steel Welded Pipe

Is there any guarantee of SINO Stainless Steel?

Factory supply inspection before shipment,sampling test( cut one piece for you to test in our lab or some other lab like SGS which you trust so much) ,

you also could inspection of loading on the forwarder warehouse or our Mill.

Packing
