| Categories | Seamless Cold Drawn Steel Tube |
|---|---|
| Brand Name: | New Era |
| Model Number: | EN10305-4 |
| Certification: | ISO 9001 ISO14001 TS 16949 |
| Place of Origin: | China |
| MOQ: | 5 tons |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5000 tons/month |
| Delivery Time: | 45 days |
| Packaging Details: | packing in standard marine packages. |
| Material: | E215,E235,E355,1010,1020,1045,16Mn,etc |
| Application: | For Hydraulic And Pneumatic Power Systems |
| OD Size: | 5-420mm |
| WT Size: | 0.5-50mm |
| Length: | Max 12000mm |
| Keywords: | Carbon Steel Seamless Hydraulic Tube |
| Shape: | Round |
| Product Name: | EN10305-4 E235 +N Seamless Precision Hydraulic Tube,6*1.0,8*1.5,10*1.5,16*1.5,25*3.0 |
| Company Info. |
| NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Standard:
EN10305-4 Cold drawn Precision Seamless Steel Pipes
2. Steel Grade:
E215,E235,E355, other materials upon agreement with customers.
3. Production method:
Cold drawing on the seamless steel tubes, to reach high accuracy on
the OD and WT tolerance,
with certain heat treatment to achieve better mechanical properties
for bending and pressure purposes
4. Size range:
O.D.:5-100mm W.T.:1-15mm L:max12000mm

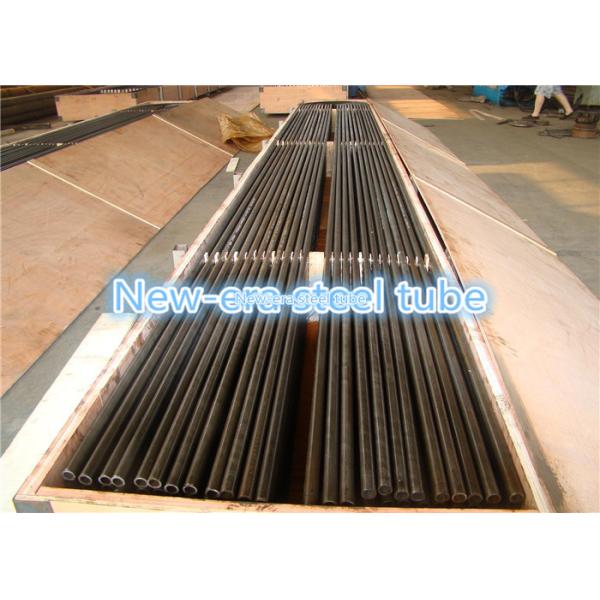

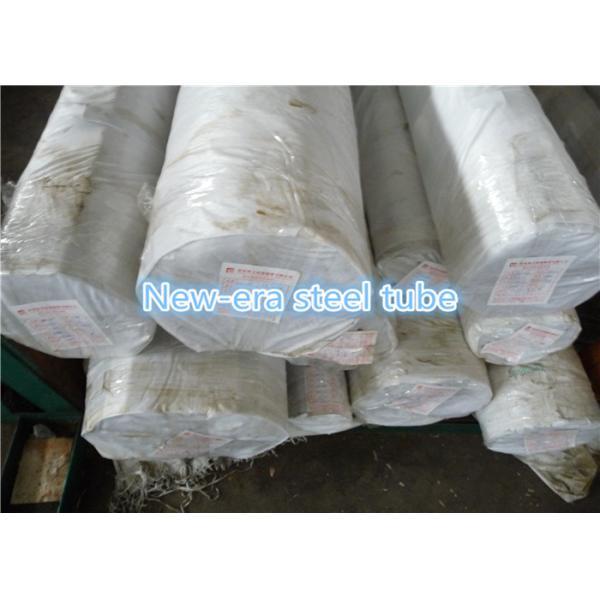

5. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy
packing
6. Deliver condition:
+NAfter the final cold drawing operation the tubes are normalized
in a controlled atmosphere
Please specify the final heat treatment when sending the enquiry.
7. Inspection and testing:
Chemical analysis
Tensile test
Flattening test or Drift expanding test
Dimensional inspection
Visual examination
NDT for verification of leaking tightness
| Steel Grade | C | Si | Mn | P | S | Al | |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | |
|
