5L Jerrycan Double Station Blow Moulding Machine Stainless Steel Material

Categories HDPE Blow Molding Machine
Brand Name: U TECH
Model Number: BST-80
Certification: CE SGS ISO
Place of Origin: Jiangsu, China (Mainland)
MOQ: 1 Set/Sets
Price: Discussible Price
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Delivery Time: 45 work days
Packaging Details: Wooden Case for Automatic 5L Jerrycan Double Station HDPE Extrusion Blow Molding Machine Price
Material: Stainless Steel
PLC: SIMENS(Germany)
Clamping Force: 1600Kn
Screw Diameter: 70mm
Cylinder: SMC
Suitable bottle: plastic Bottle jeyycan bottles
Power (kW): 8.5
Weight (KG): 6500
Warranty: 2 Years
Dimension: 4.8*2.3*3.5m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

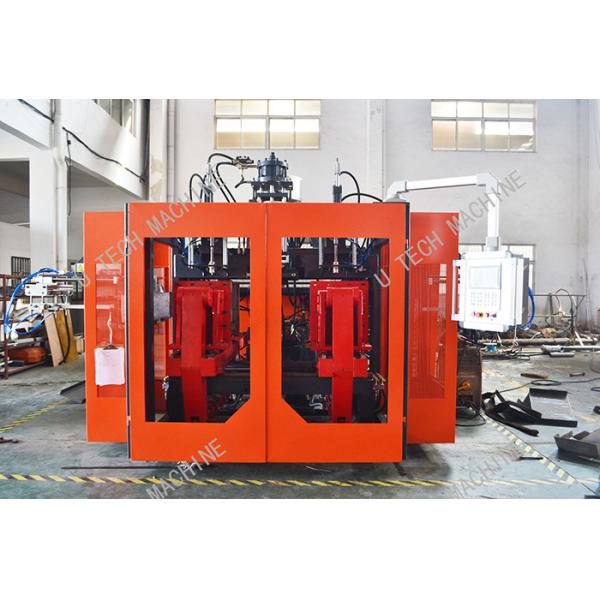

5L Jerrycan Double Station Blow Moulding Machine Stainless Steel Material

Automatic 5L Jerrycan Double Station HDPE Extrusion Blow Molding Machine Price

Introduction

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.


Feature:


1. Original FESTO air cylinder.


2. Minimize your initial investment by starting small.


3. Add additional systems economically as your business grows.


4. Bottles of different sizes can be produced simultaneously to meet your exact requirements.


5. Change over from one size to another can be completed simply and quickly.


6. The tooling costs (molds) are low since the design of the system is simple.


7. Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.


8. Maintenance costs are kept to a minimum and highly-trained personnel are not required.


Parameters


Category

Item

Unit

BST70

BST80

BST90
Extruder Unit
Screw diameter

mm

70

80

90

Screw L/D ratio

L/D

25:1

25:1

25:1

Plasticising capacity

kg/hr

80

100

120
number of heating zone
kw

10

12.5

12.5

extruder driving power

zone

4

5
extruder heating power
Kw

15

22

30
Die headnumber of heating zone
zone

3

3

4
power of die heating
kw

4

6

8

max die-pin diameter

mm

250

350

400
accumulator capacity
kg

3

4

6
specificationsMax container capacity
L

20

30

50
machine dimension
M

4*2.6*2.7

5*3.1*3.2

5*3.1*3.9
total weight
tom

4.5

7

9

Clamping Unit
clamping force
kn

160

300

400
platen opening stroke
mm

250-800

350-1050

350-1250
max mould size
mm

520*600

700*1000

900*1200
mould thickness
mm

260-400

360-500

360-600

Power
Oil pump motor
kw

7.5

11

11
total power
kw

40

63

70
fan power for screw
kw

0.72

0.72

0.72
air pressure
mpa

0.7

0.7

0.7
air consumptionm 3 /min
0.9

0.9

0.9
average energy consumption
kw

20

28

35


Components list



COMPONENTS NAME

BRAND

ORIGIN

PLC

MITSUBISHI

Japan

Operation screen

SIMENS

Germany

Parison control system

MOOG

Japan

Inverter

MITSUBISHI

Japan

Pneumatic parts

FESTO

Germany

Hydraulic pump and valve

YUKEN

Japan

Transducer

GEFRAN

Italy

Contactor

SCHNEIDER

France

Relay

SCHNEIDER

France
