| Categories | DC Blower Fan |
|---|---|
| Brand Name: | MX |
| Model Number: | MX12032GBM2 |
| Certification: | CE ROHS |
| Place of Origin: | GD |
| MOQ: | 500PCS |
| Price: | USD/ 4.5-5.6$/ PCS |
| Payment Terms: | T / T , Paypal |
| Supply Ability: | 20000/pcs/per day |
| Delivery Time: | 12-15 working days |
| Packaging Details: | CARTONS |
| Product name: | cooling blower fan |
| Color: | balck |
| Size: | 120 × 120 × 32 mm |
| Voltage: | 12V/24V |
| Speed: | 3500RPM - 4500RPM |
| Current: | 0.5-1.0A |
| weight: | 278g |
| Air flow: | 30CFM-41CFM |
DC Blower Fan 120x120x32mm Ball Bearing Fan With FG IP58 Function
feature
| Frame and Impeller: | Plastic (94V-0),PBT |
| Bearing Type: | Sleeve bearing&Ball bearing |
| Function Range: | FG IP58 |
| Leadwire: | Red Wire Positive(+),Black Wire Negative(-) |
| Operating Voltage: | 5V 12V 24V 48V |
| Tempetature Range: | –10℃ to +60℃ |
| Motor: | Impedance Protected and Reverse Polarity Protected |


Specifiction
| Model | Bearing Type | Rated Voltage | Operating Voltage | Current Amp | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | ||
| Part No. | S B Y | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | Pa | dB-A | g |
| MX12032GB(S)H1 | B.S | 12 | 7.0-13.8 | 2.00 | 24.00 | 3500 | 41.20 | 1.17 | 1.85 | 461.99 | 57 | 278 |
| MX12032GB(S)M1 | B.S | 12 | 7.0-13.8 | 1.00 | 12.00 | 3000 | 35.44 | 1.00 | 1.17 | 291.94 | 51 | 278 |
| MX12032GB(S)L1 | B.S | 12 | 7.0-13.8 | 0.70 | 8.40 | 2500 | 30.79 | 0.87 | 0.83 | 207.90 | 45 | 278 |
| MX12032GB(S)H2 | B.S | 24 | 14.0-27.6 | 1.00 | 24.00 | 3500 | 41.20 | 1.17 | 1.85 | 461.99 | 57 | 278 |
| MX12032GB(S)M2 | B.S | 24 | 14.0-27.6 | 0.70 | 16.80 | 3000 | 35.44 | 1.00 | 1.17 | 291.94 | 51 | 278 |
| MX12032GB(S)L2 | B.S | 24 | 14.0-27.6 | 0.40 | 9.60 | 2500 | 30.79 | 0.87 | 0.83 | 207.90 | 45 | 278 |
Manufacture Process

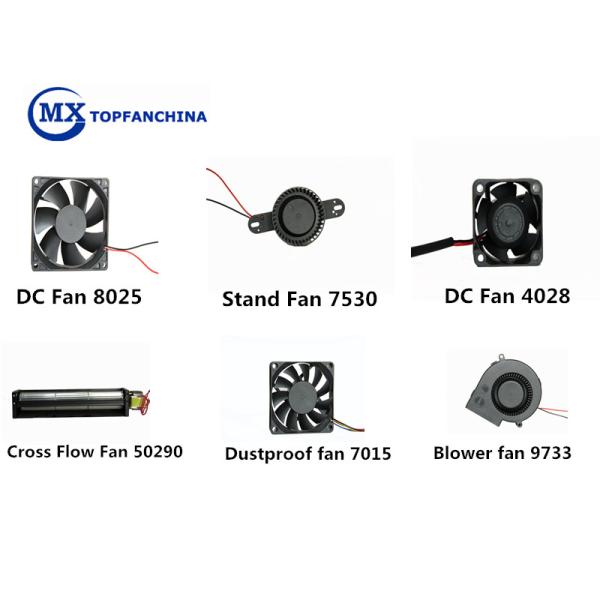

More fans


Extensive application

|
